Overview

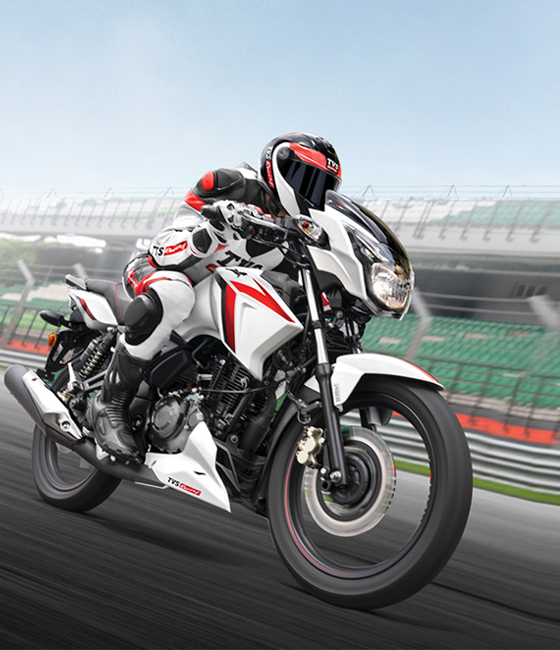

APACHE RTR 160 2V
A mainstay in the Apache stable and on the racetrack, Apache RTR 160 from the house of TVS Racing has racked up laurels in all forms of racing and continues to stand on the podium.

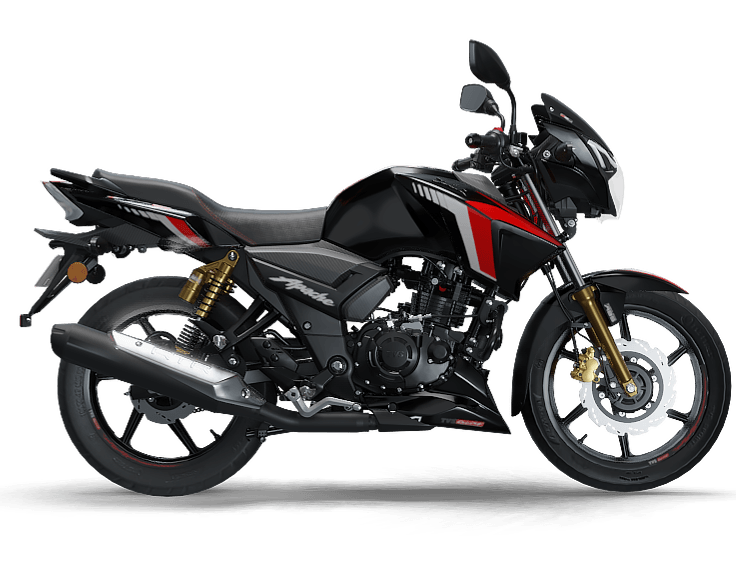

Colours
Also available in Matte Blue, Matte Red, Gloss Red, Black and Grey
Features

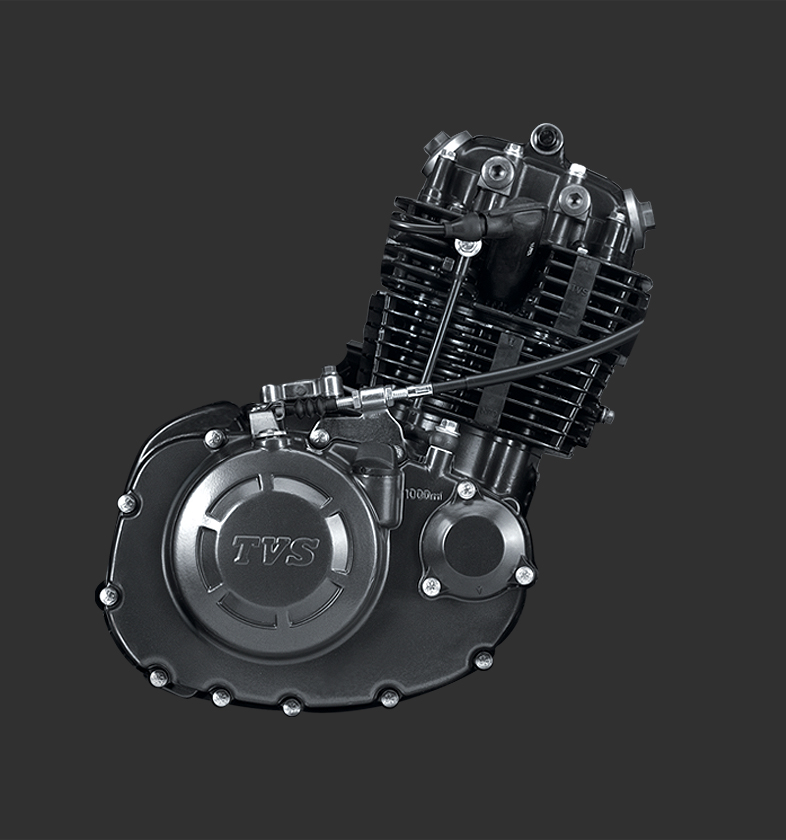

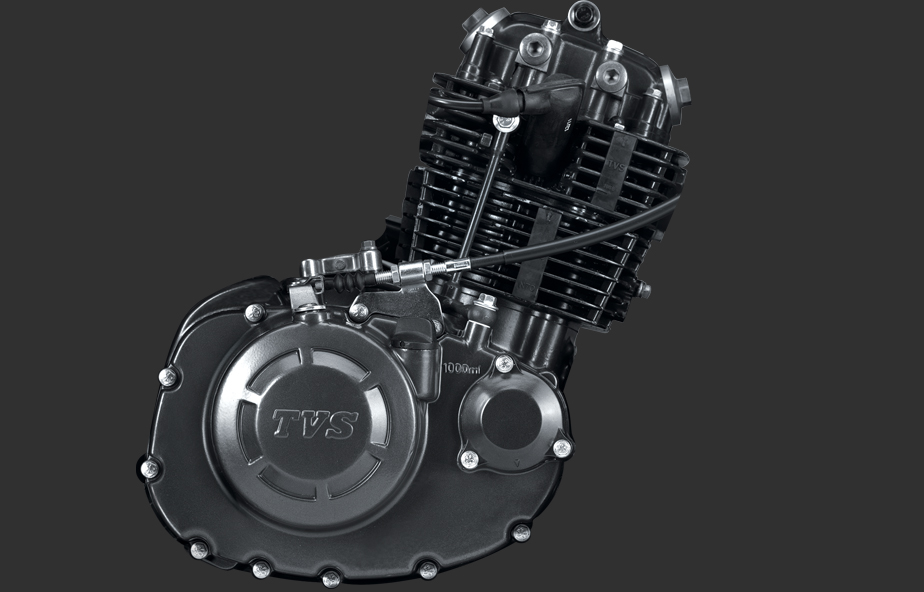

RTR Over Square Engine
The race derived engine delivers intense torque and the high revving nature at the top end translates to greater racing speeds.

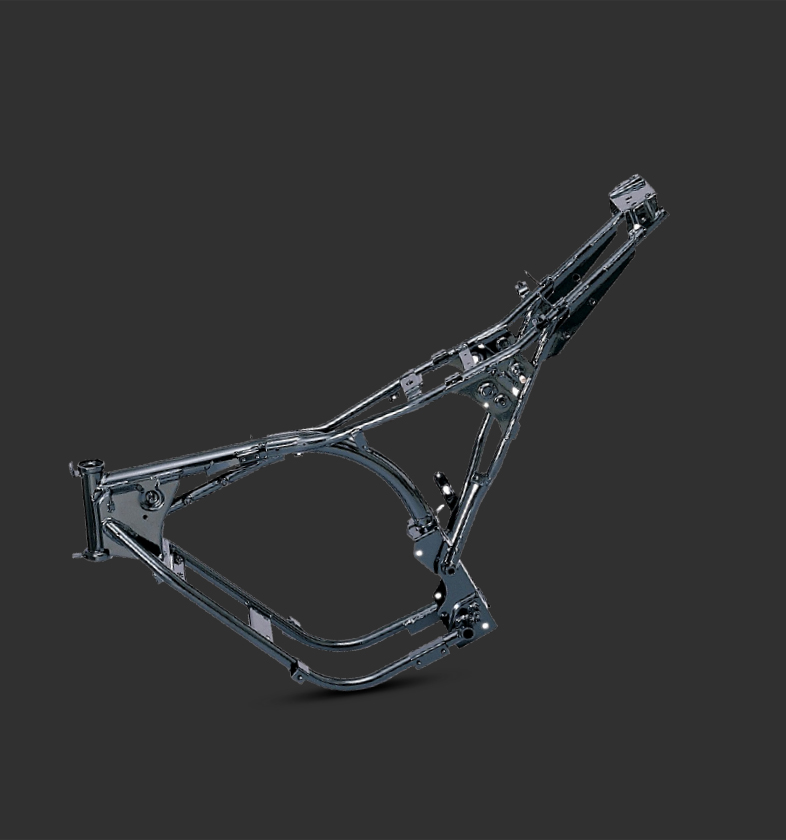

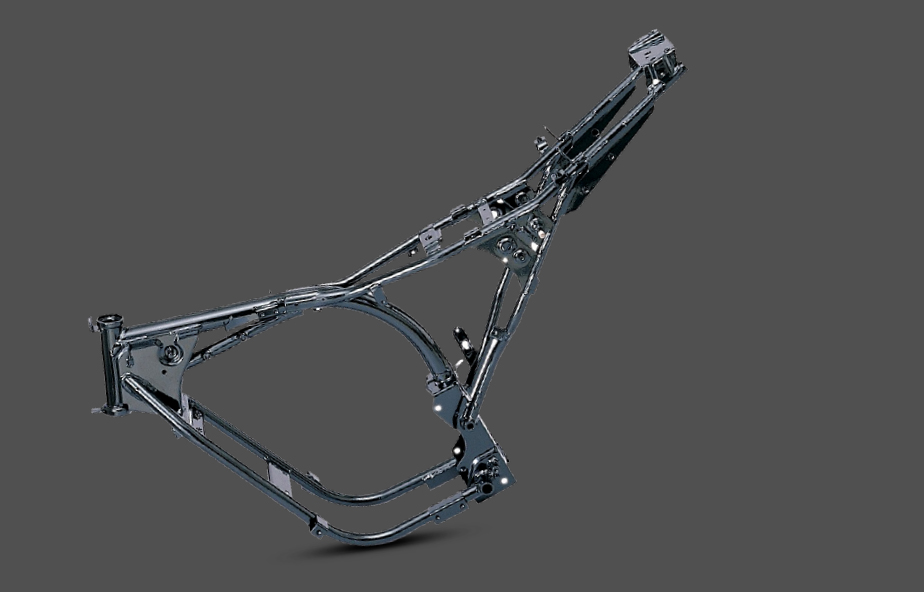

Synchronized Stiff Chassis
Unparallel riding dynamics is achieved through the synchronised stiff chassis which also provides flex for aggressive cornering.

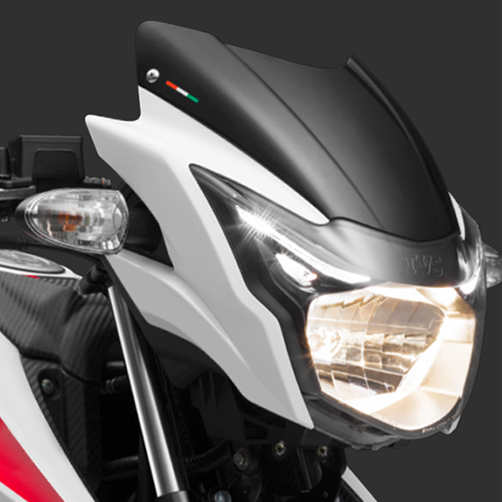

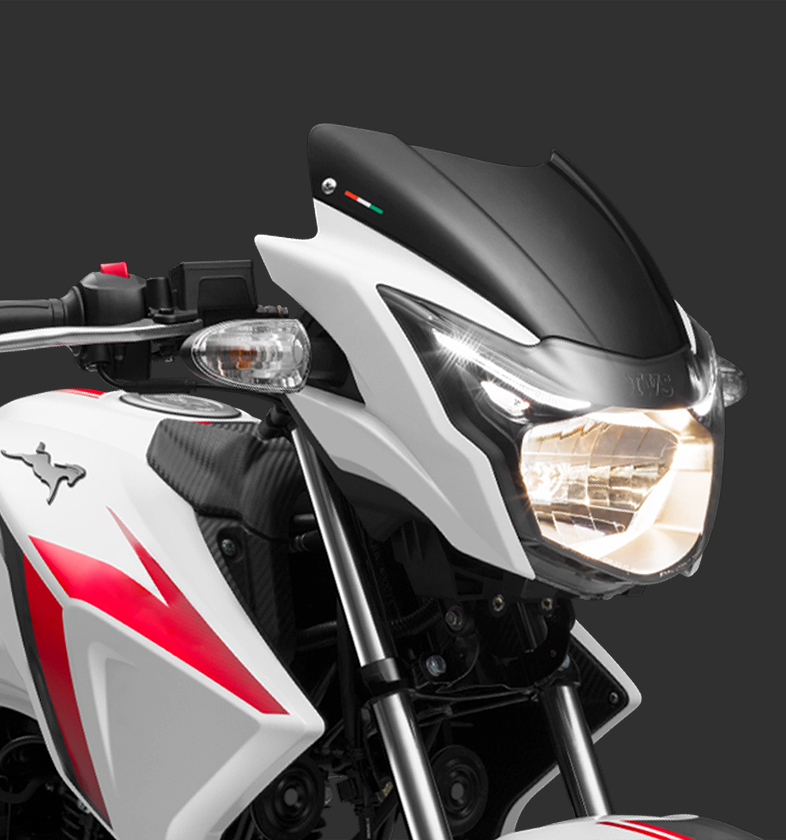

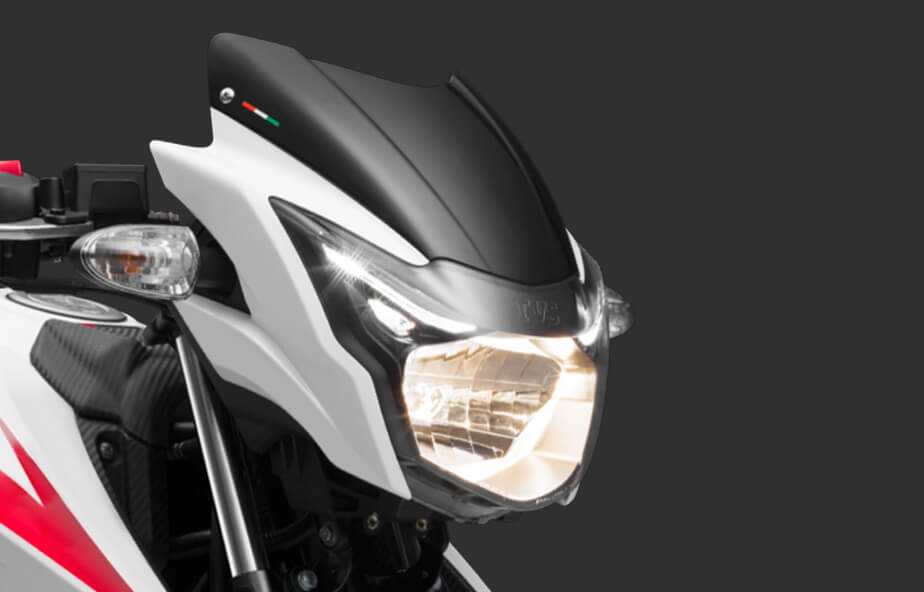

Beast-Inspired Headlamps
The LED light guide in the headlamp panel along with the pilot lamp produces an intense, raw, animastic gaze.

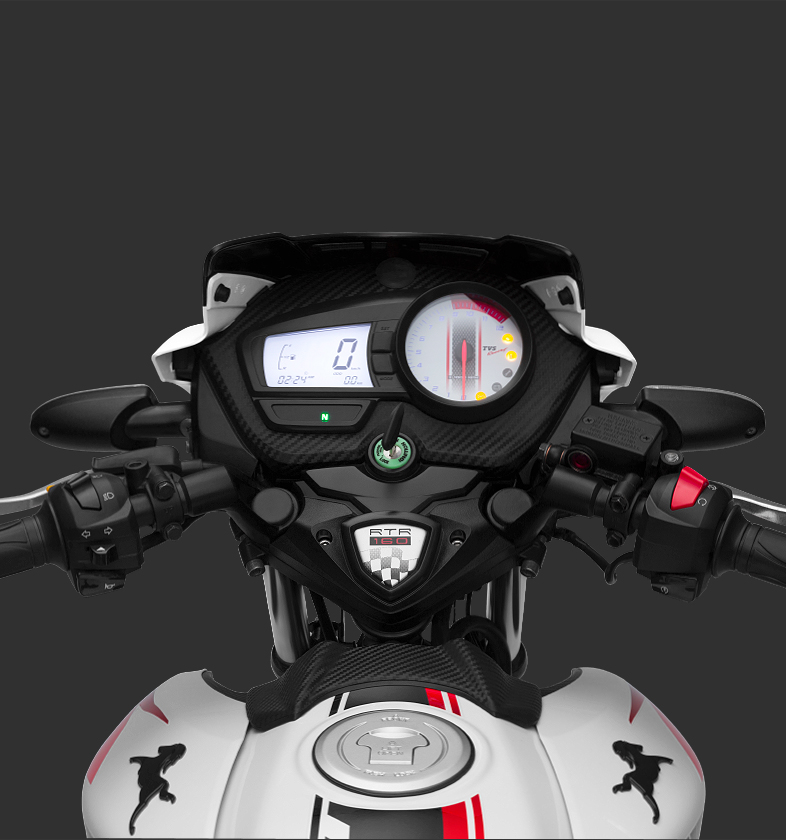

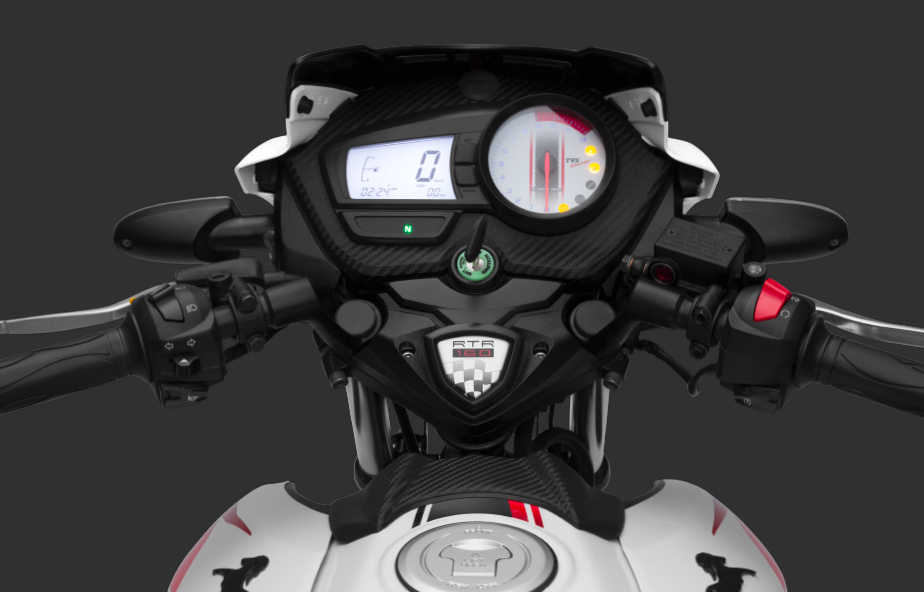

Race-inspired digital display
Designed with race-inspired carbon fibre cues, the countdown-on-ignition speedometer has a distinct blue-backlit display.

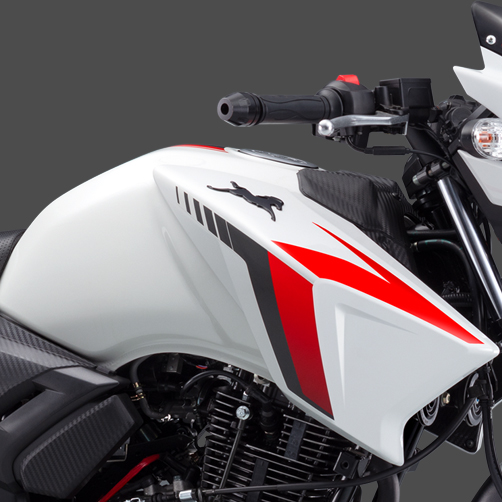

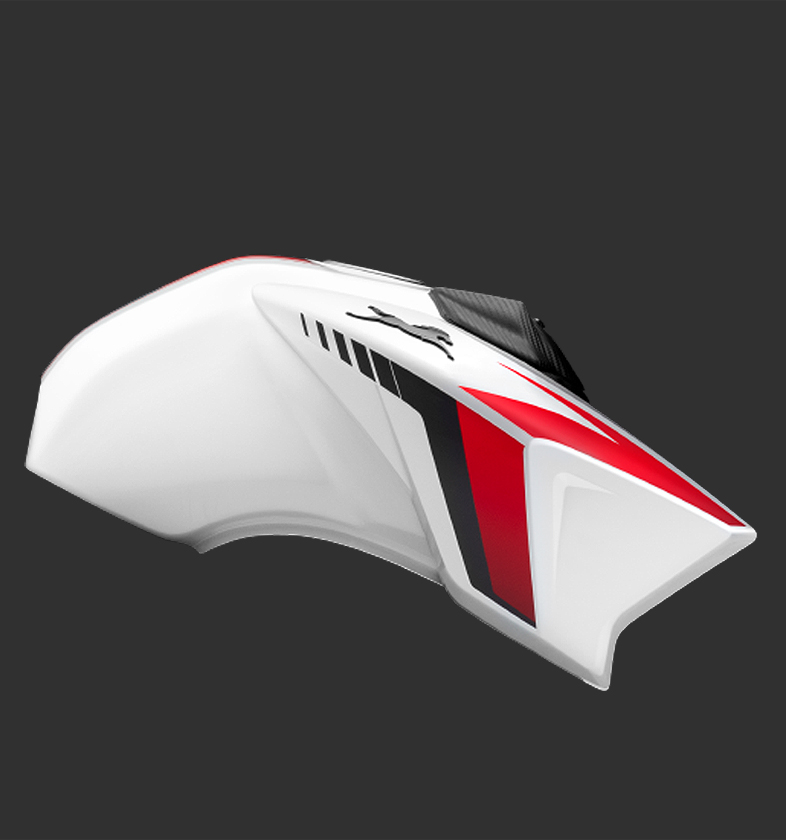

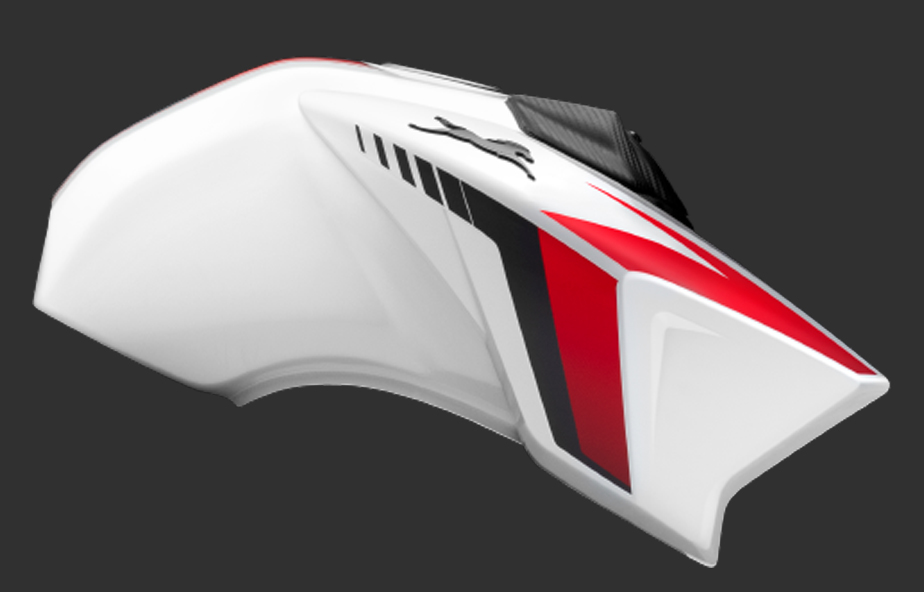

Tank scoops
In the heat of the race, the TVS Apache RTR is kept cool with the help of the tank scoops, to channel cool air to the engine and circulate the warm air out.

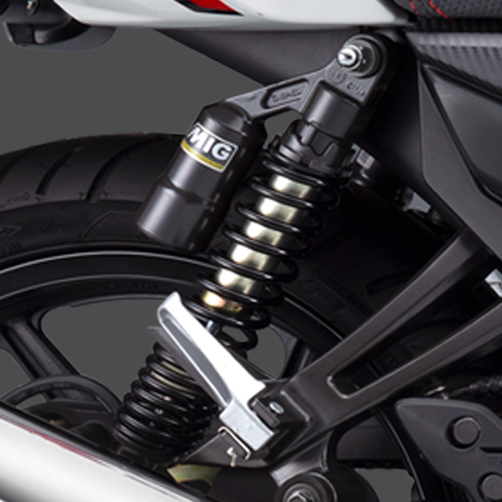

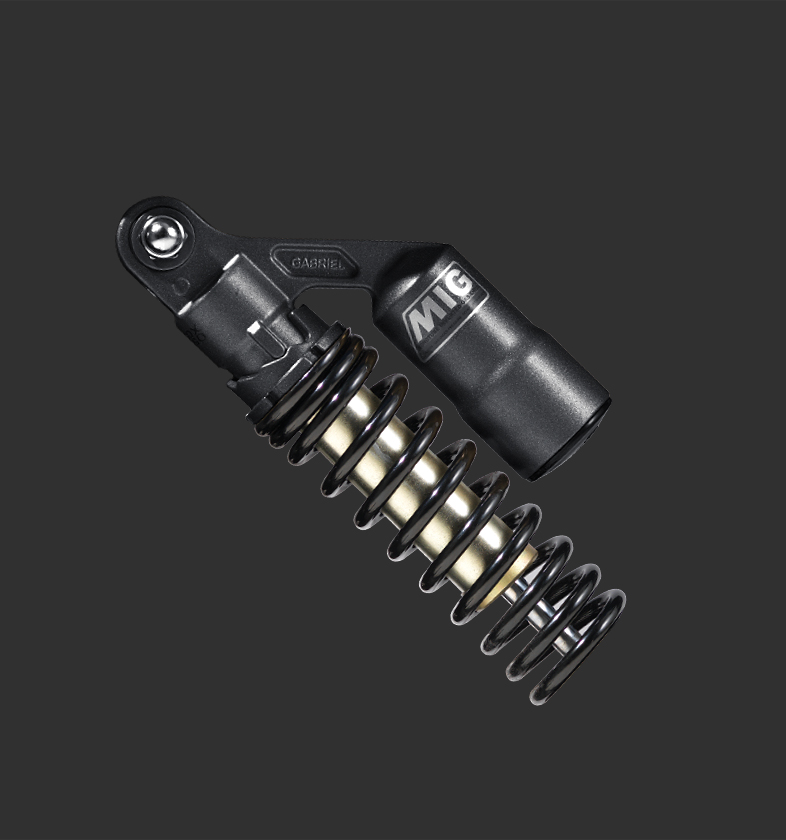

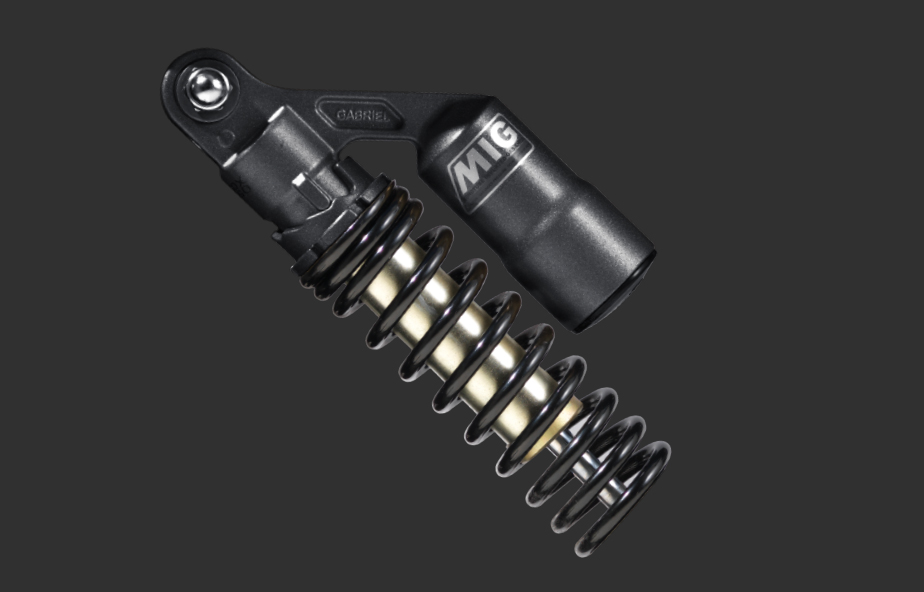

MIG Suspension
The rear monotube inverted gas filled 5 step adjustable shocks with rectangular swing arm, ensures cornering aggression meets agility.
Specifications
-
Type
SI, 4- stroke, Air- Cooled -
Engine capacity
159.7 cm3 -
Max. Power(kW @ rpm)
15.23 PS @8500 rpm -
Max. Torque (Nm @ rpm)
13.7 Nm @ 6000 rpm -
Fuel supply system
Carburettor: UCAL BS-26 -
Valve per cylinder
2 Valves -
Starting
Electric & Kick Start -
Gear box
5 speed gear box
-
Frame
Double Cradle Synchro STIFF -
Front Suspension
Telescopic forks -
Rear Suspension
Monotube Inverted Gas-filled shox (MIG) with spring aid
-
Battery rating (Ah)
12V, 9Ah MF -
Headlamp
Halogen HS1 12V 35/35W with AHO, Clear lens with MFR with LED position lamp -
Tail Lamp
LED
-
Tyre (front)
90/90-17 49P Tubeless -
Tyre (rear)
110/80-17 57P Tubeless -

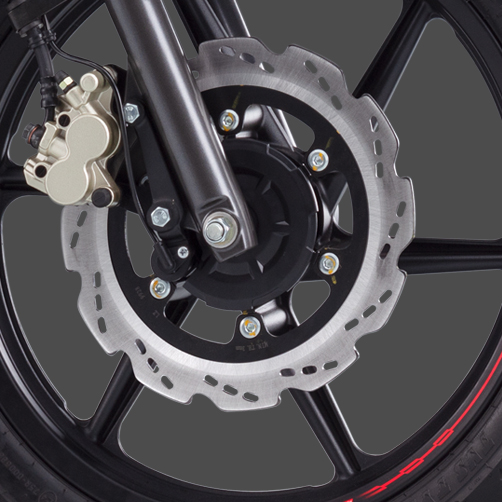

Front Brake (Disc)
270mm dia Petal Disc -
Rear Brake (Disc/Drum)
Drum-130mm dia Drum
Disc-200mm dia Petal Disc -
Brake Fluid
DOT 3 / DOT 4
-
Height
1105 mm -
Length
2085 mm -
Width
730 mm -
Wheelbase
1300 mm -
Ground Clearance
165 mm -
Saddle Height
790 mm -
Kerb weight (with 90% fuel and tool kit)
Rear Drum version - 139 kg, Rear Disc version - 140 kg
-
Fuel Tank Capacity
16 l
