DESIGN

Apache Design

Aggressive New Headlamp

The new LED headlamp delivers maximum luminosity while staring down the competition with its intense gaze. The headlamp features both high and low beams to cater to various visibility conditions.

Apache Design

Race Inspired Graphics

The all-new race-inspired graphics with decals and a refreshed racing aesthetic is based on an aero form theme. This will make their presence felt on the track & road.

FEATURES

Three Ride Modes

The first-in-class 3 ride modes give the racer, power to adapt to any race condition with a press of the dedicated ride mode switch. Each mode uniquely primes the machine’s engine and ABS response for optimal performance.

Race Tuned Slipper Clutch

Race Tuned Slipper Clutch’ technology, accentuates the motorcycle’s performance, with 22% reduction in clutch force for quicker upshifts, enabling the rider to achieve better lap times.

Adjustable SHOWA Suspension

The preload can be adjusted to soft for comfort riding, or made stiffer for an aggressive racing style meant for tearing up the track. These adjustments can be easily done without the need for additional tools, enabling adaptability on the go.

Aggressive New Headlamp

The new LED headlamp is designed to be an intimidating statement of both aggression and functionality. It delivers maximum luminosity while staring down the competition with its intense gaze. The headlamp features both high and low beams to cater to various visibility conditions.

Race Inspired Graphics

The race-inspired graphics with decals and a refreshed racing aesthetic is designed to pay homage to the racing pedigree of RTR DNA based on an aero form theme lending the motorcycle a dynamic and ready-to-attack stance.

Aggressive Tank Gowl

Aerodynamically modelled street-fighter inspired muscular design & Engineered to achieve lesser downforce for uncompromised handling at any speeds.

Dual Channel ABS with RLP Control

The Dual-Channel ABS with RLP (Rear wheel Lift-off Protection) control offers quick detection and recovery of the wheel lock achieving higher stability through precise close-loop slip control. It is well-tuned for both high friction and low friction surfaces.

Wave Bite Key

The bike now comes with a special Wave Bite Key to prevent theft. The motorcycle and the key are carved such that a duplicate key cannot be used to start the ignition, ensuring that your race machine responds only to you.

Type
SI, 4 stroke, Oil cooled
Engine capacity
197.75cm3
Maximum power
15.1kW @ 8500rpm (20.5 PS @8500)
Maximum torque
16.8Nm @ 7500rpm
Fuel injection
Bosch - Closed loop
FRAME
Double Cradle Split Synchro Stiff Frame
FRONT SUSPENSION
Telescopic Forks
REAR SUSPENSION
Mono Tube - Mono Shock
Battery
12V, 8Ah MF
Headlamp
AHO LED Headlamp With LED Position Lamp
Tail Lamp
LED
Tyre (front)
TVS 90/90-17 49P Tubeless (or)
TVS 90/90-17 M/C 49S Tubeless
Tyre (rear)
130/70 17 M/C 62P Tubeless (or)
130/70 17 M/C 62S Tubeless (or)
130/70 R17 M/C 62P Tubeless
Front
Disc 270 mm (Petal Type)
Rear
Disc 240 mm (Petal Type)
Brake Fluid
DOT 3 / DOT 4
Height
1050 mm
Length
2050 mm
Width
790 mm
Wheelbase
1353 mm
Ground Clearance
180 mm
Saddle Height
800 mm
Kerb Weight
153 kg
FUEL TANK CAPACITY FULL
12l
Reserve
2.5l

Connected Experience

Connected Experience

SmartXonnect Technology

The unique system is displayed on the racing console & TVS SmartXonnect app. The cutting-edge Bluetooth enabled system offers up a range of race analytics and data that allows any racer to review their racing style and constantly improve it on the track.

The SmartXonnect is equipped with features that improve the riding experience, be it on the road or the racetrack, numbers are what are going to define the experience.

Connected Experience

Connected Experience

Dedicated Info/
Control Switch

This switch offers an instant and easy interface between the racer and the SmartXonnect system. The dedicated button on the handlebar toggles lap times as well as triggers other features on the system.

Connected Experience

Connected Experience

Race Telemetry

Through the course of the race, the SmartXonnect app records a number of race parameters and the racer can easily scroll through the telemetry and pick out specific race data. The app also summarises essential data at the end of every track session.

Connected Experience

Connected Experience

Lean Angle Mode

The system uses the gyroscopic sensor on the phone to record the racer’s lean angle through the corners. The level of lean is displayed on the racing console while the app records the in-dept angle of lean through a lap. This ensures a racer knows when they’re absolutely on the limit in every corner.

Connected Experience

Connected Experience

Navigation Feature

The SmartXonnect is enabled with a single trip as well as a tour mode, where multiple stops can be plotted. The directions are displayed on the console, the system is also pre-programmed with essential stops such as fuel stations, hospitals and restaurants.

Connected Experience

Connected Experience

Call/SMS Notification

The SmartXonnect system displays an incoming call or SMS on the console, riders can press the dedicated info switch and the caller will receive an immediate notification.

Connected Experience

Connected Experience

Crash Alert System

This unique safety feature is triggered when the bike senses a fall, the system enters crash alert mode and within 120 seconds notifies the riders emergency contacts with the location of the fall. The alert can be cancelled by pressing the info switch within the first two minutes of the fall.

Connected Experience

Connected Experience

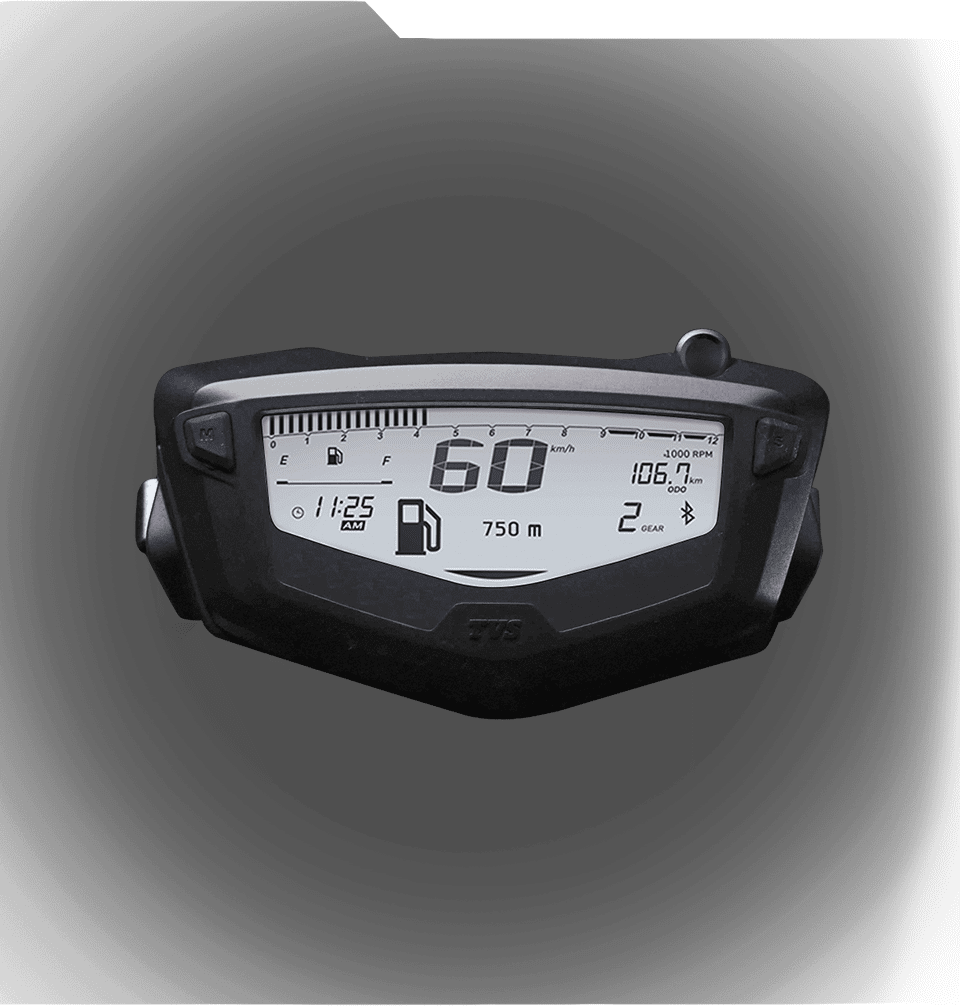

Low Fuel Alert

When the bike is low on fuel, pressing the info switch will automatically redirect the rider to the nearest petrol station. Directions will be displayed on the console.
