Apache RTR 160 4V Motorcycle Overview

Apache RTR 160 4V motorcycle Overview
Apache RTR 160 4V motorcycle Overview

The TVS Apache RTR 160 4V is a powerful entry in the line of TVS Apache race machines. With an imposing track presence, this machine is a testament to the future of cutting edge race technology.

Colours

Virtual design of Apache RTR 160 4V Sports motorcycles
Racing Red
Knight Black
Metallic Blue

Features

Oil cooled engine of Apache RTR 160 4V Sports motorcycles
Oil cooled engine of Apache RTR 160 4V Sports motorcycles

INMRC Winning Engine

The Oil-cooled 4 Valve, short stroke engine produces 16.5 PS@ 8000 rpm. The power plant is derived from the 7-time INMRC prototype.

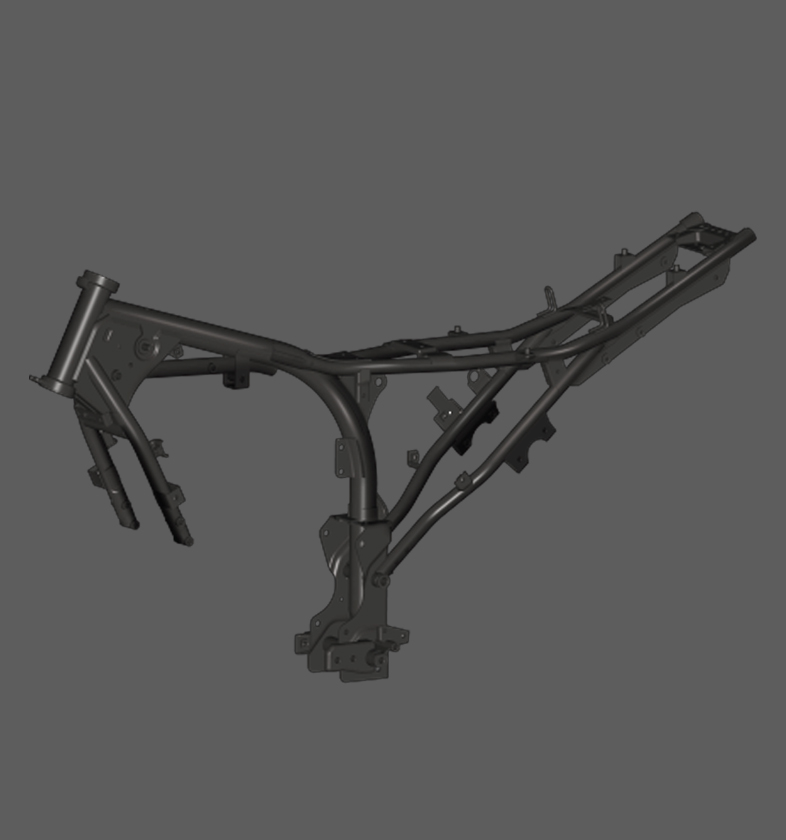

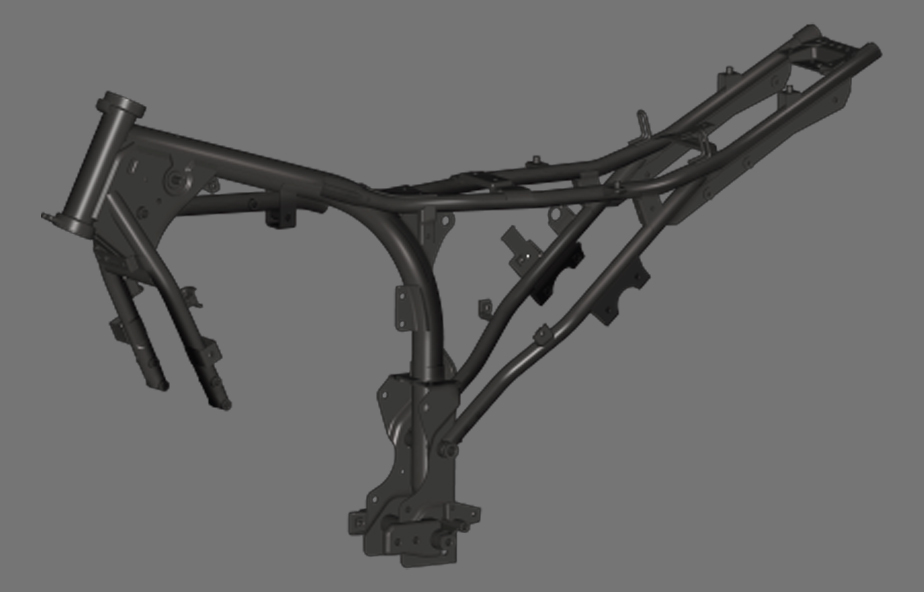

Split synchro chassis of Apache RTR 160 4V Sports motorcycles
Split synchro chassis of Apache RTR 160 4V Sports motorcycles

Patented Stiff Chassis

The unique Split Synchro Stiff Chassis provides increased stiffness for sharp cornering.

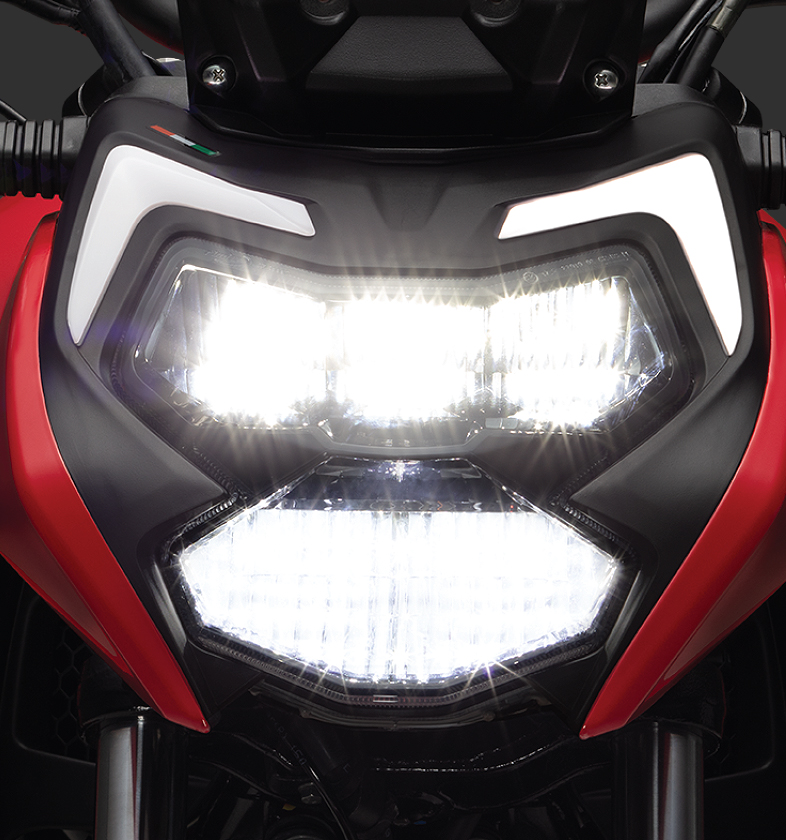

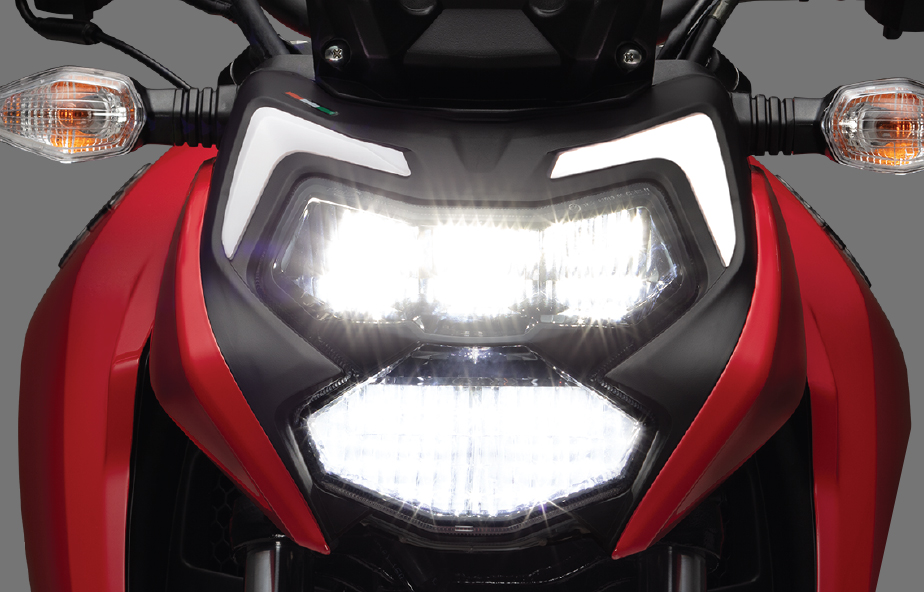

LED headlight of Apache RTR 160 4V Sports motorcycles
LED headlight of Apache RTR 160 4V Sports motorcycles

Imposing LED Headlamp

Aggression meets functionality with the high intensity LED positioned lamps with a unique fang design.

Double barrel exhaust of Apache RTR 160 4V Sports motorcycles
Double barrel exhaust of Apache RTR 160 4V Sports motorcycles

Racing Double Barrel Exhaust

Double barrel exhaust rapidly expels gases from the combustion chamber while producing a racier signature exhaust note.

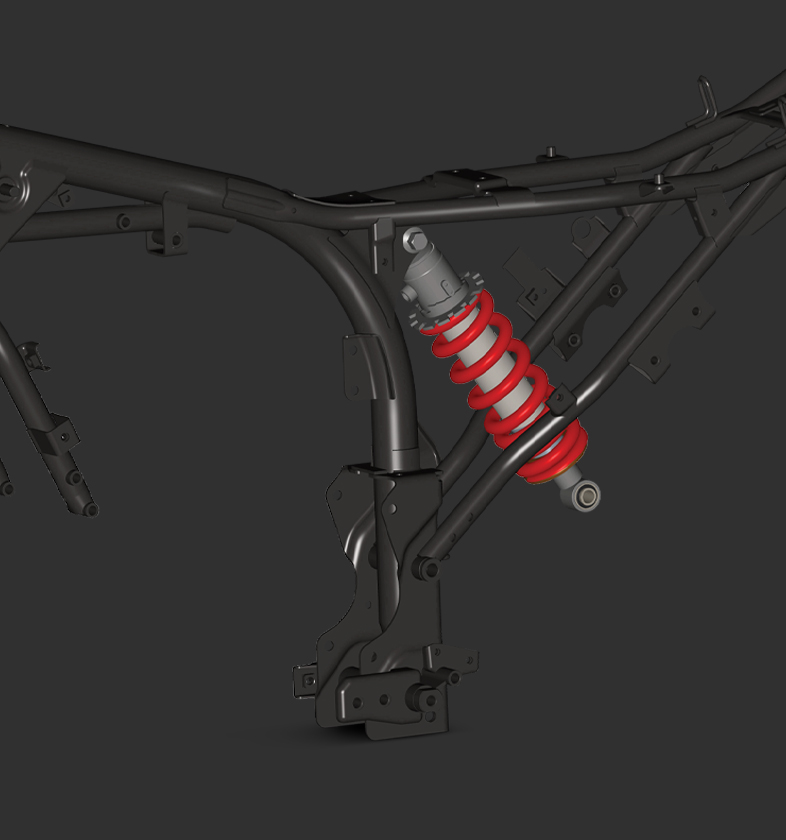

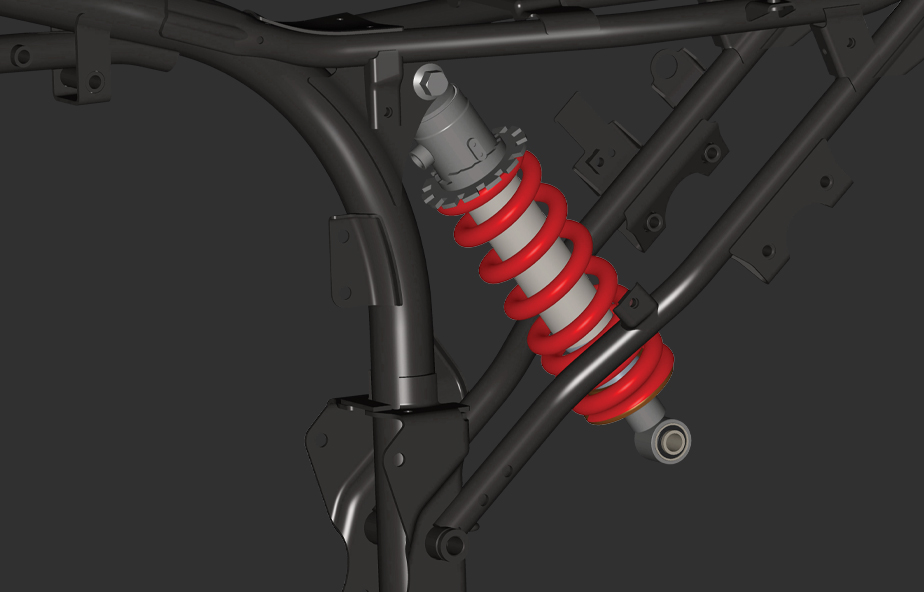

Monoshock suspension of Apache RTR 160 4V Sports motorcycles
Monoshock suspension of Apache RTR 160 4V Sports motorcycles

SHOWA Monoshock

The compression and rebound damping have been precision tuned on the race track . The setup give racers confidence while carrying higher cornering speeds.

Specifications

  • Type

    SI, 4 stroke, Oil cooled
  • Engine capacity

    159.7 cm3
  • Max. Power(PS @ rpm)

    16.5 PS @8000 rpm
  • Max. Torque (Nm @ rpm)

    14.8 Nm @ 6500 rpm
  • Carburettor type

    UCAL, CV
  • Valve per cylinder

    4 valves
  • Starting

    Electric Starter
  • Gear box

    5 speed gearbox
SI oil cooled engine of Apache RTR 160 4V Sports motorcycles
  • Frame

    Double cradle Split Synchro STIFF
  • Front Suspension

    Telescopic fork
  • Rear Suspension

    Mono Shock
Telescopic and monoshock suspension of Apache RTR 160 4V motorcycles
  • Battery rating (Ah)

    12V, 6Ah MF
  • Headlamp

    AHO LED Headlamp with LED position lamp
  • Tail Lamp

    LED
Electrical specifications of TVS RTR 160 4V 2 wheeler motorcycle
  • Tyre (front)

    90/90-17 Tubeless
  • Tyre (rear)

    110/80-17 Tubeless Radial
    130/70-17 Tubeless Radial
  • Front Brake

    270mm dia Petal Disc
  • Rear Brake

    130mm dia Drum/ 200mm dia Petal Disc
  • Brake Fluid

    DOT 3 / DOT 4

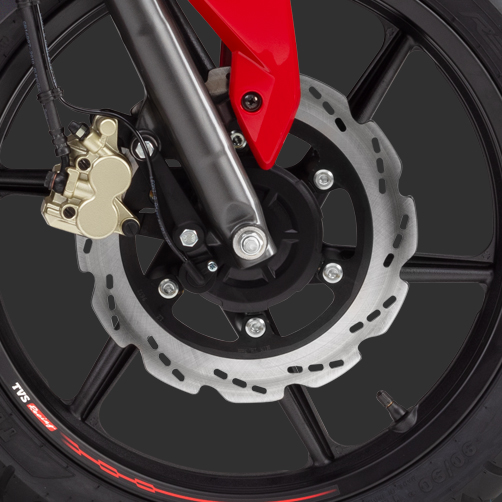

Petal disc braking of Apache RTR 160 4V Sports motorcycles
  • Height

    1050 mm
  • Length

    2050 mm
  • Width

    790 mm
  • Wheelbase

    1357 mm
  • Ground Clearance

    180 mm
  • Saddle Height

    800 mm
  • Kerb weight (with 90% fuel and tool kit)

    Drum - 143 kg / Disc - 145 kg

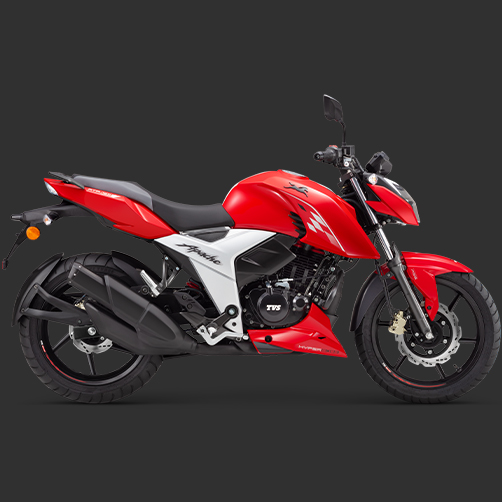

Dimension of Apache RTR 160 4V Sports motorcycles
