APACHE RTR 200 4V

The TVS Apache RTR 200 4V spearheads its class with never before seen innovation. The race machine wins the race to the future with futuristic technology and a revamped aesthetic featuring RT Slipper Clutch, LED Headlamp and High performance radial tyre.

Colours

Also available in Pearl White

Features

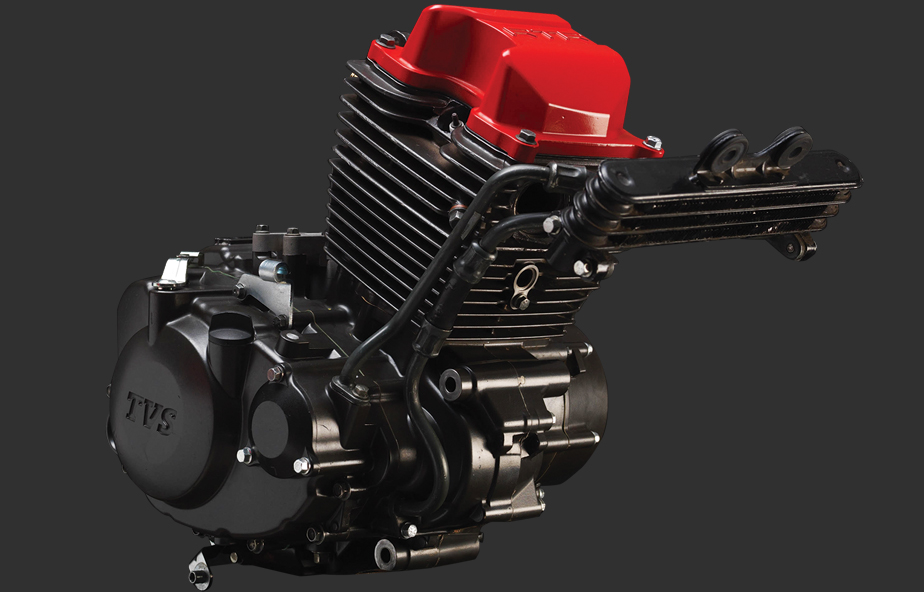

Race-Derived O3C Tech

Power ahead of the pack with oil-cooled combustion chamber technology and ram air-assisted cooling that reduces the engine heat map by 10⁰C.

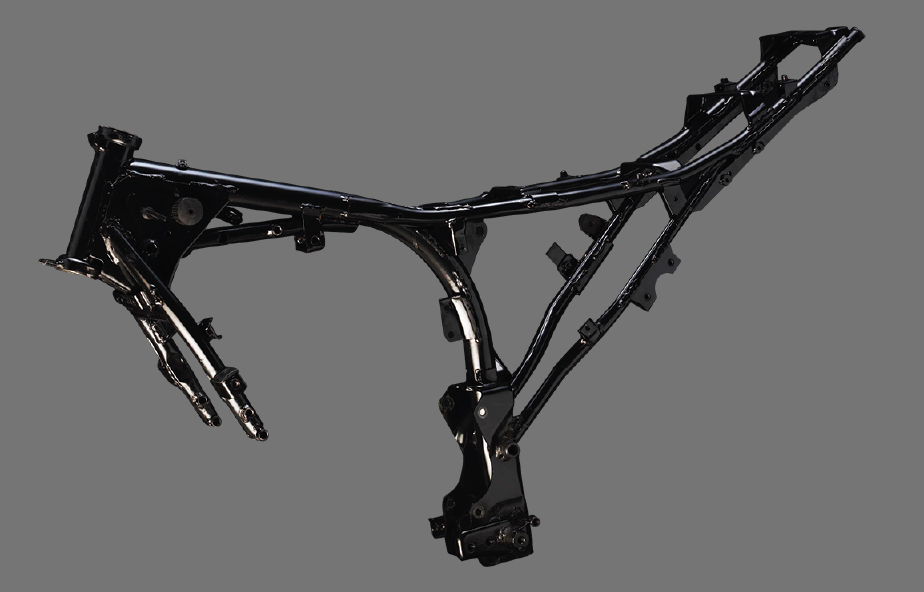

Race Origin Split cradle chassis

TVSM patented Double Split Synchro Stiff Chassis engineered using Multi-body dynamics analysis gives optimised vehicle layout, thereby increasing the stability by 25%.

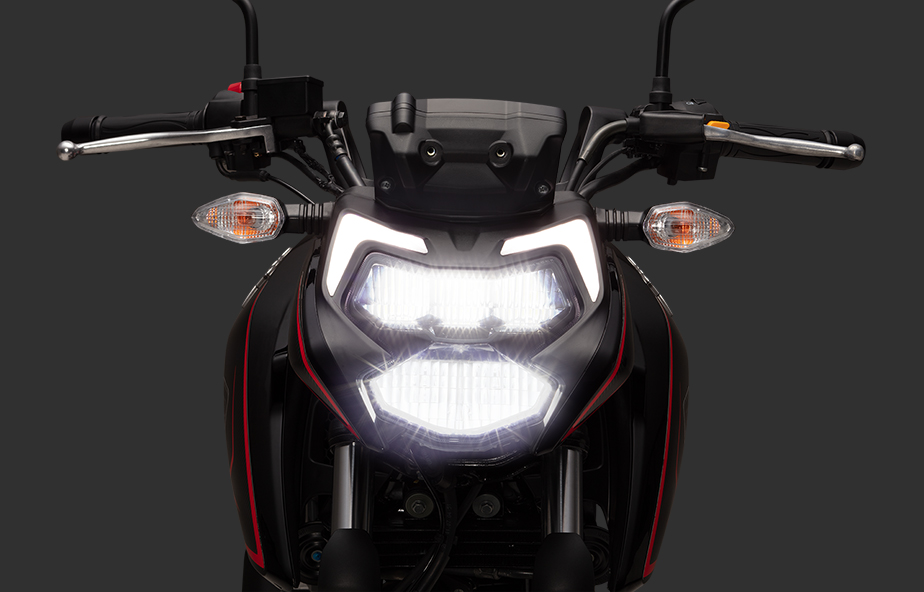

Aggressive Claw styled LED Headlamp

Aggression meets functionality with high-intensity LED positioned lamps with unique fang design.

Fully Interactive Digital Speedometer

TVS Apache RTR 200 4V welcomes you with the alpha-numeric message on race-inspired Speedo-cum-Tacho with features like 0-60 timer, Top speed recorder, etc.

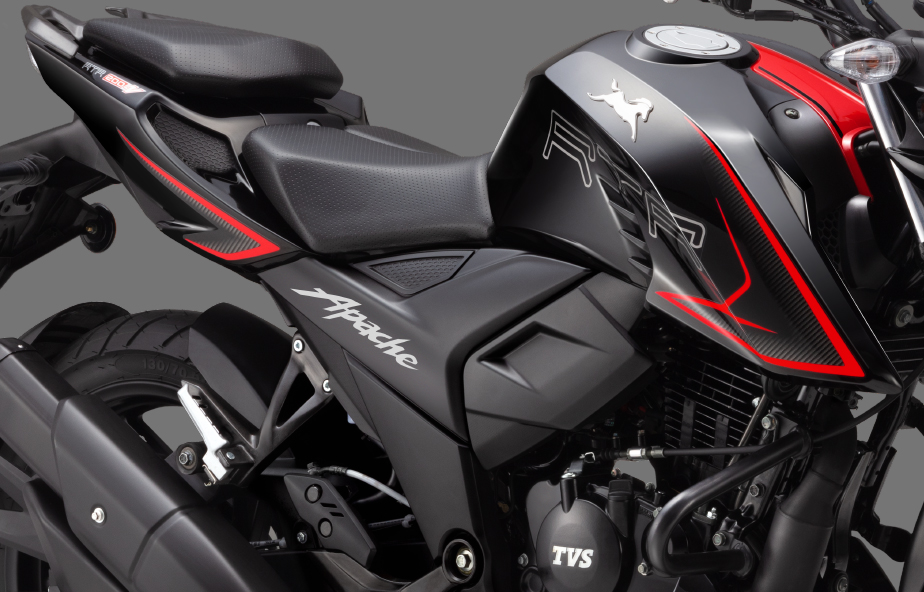

Race inspired graphics

The all-new race-inspired graphics with decals and a refreshed racing aesthetic is designed to pay homage to the racing pedigree of RTR DNA.

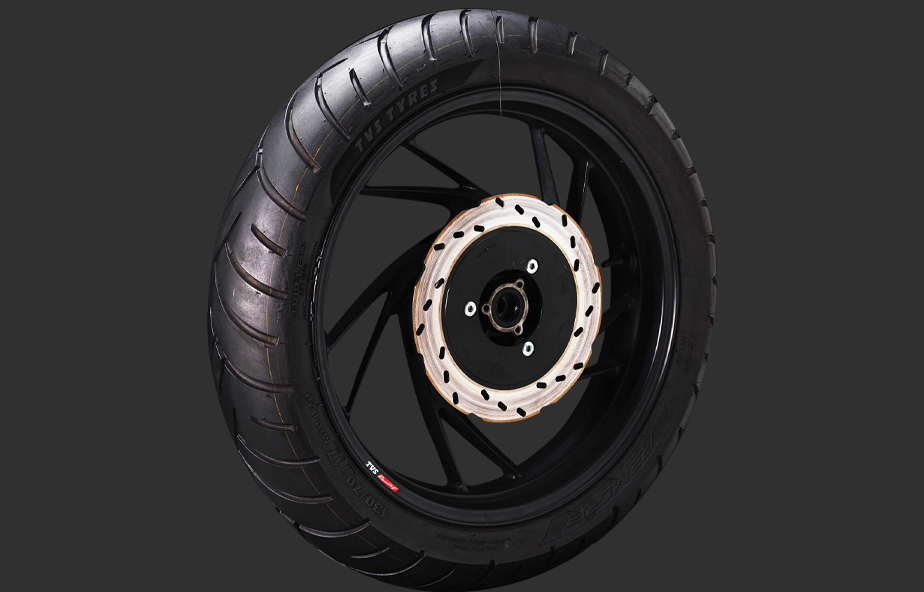

High performance Racing tyres

The all-new Apache RTR 200 4V now comes equipped with Eurogrip Protorq SR racing spec radial tyres, with increased traction control, stability and durability.

Racing Double - Barrel Exhaust

Double barrel exhaust rapidly expels gases from the combustion chamber, increasing horsepower while producing a racier exhaust note that's music to racer's ears.

Specifications

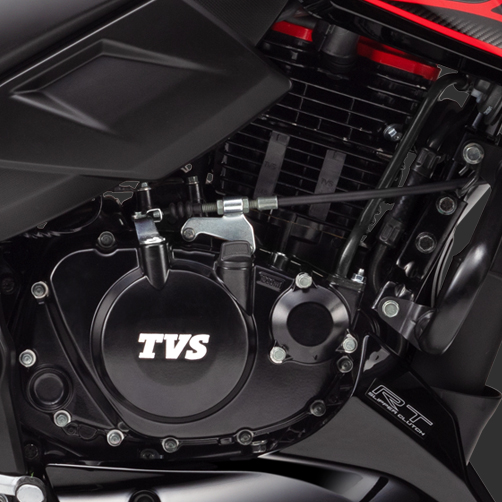

  • Type

    SI, 4-stroke, Oil-cooled

  • Displacement

    197.75 cm3

  • Max. Engine Output (kW @rpm)

    15.09 kW @8500 rpm

  • Maximum Torque (kW @ rpm)

    18.1 Nm @ 7000 rpm

  • Carburettor Type

    UCAL, Constant Depression type

  • Ignition

    Inductive Discharge Ignition (IDI)

  • Valve Per Cylinder

    4 Valves
download e-brochure Click here to download Owner’s Manual

  • Frame

    Double Cradle Split Synchro Stiff Frame

  • Front Suspension

    Telescopic Forks

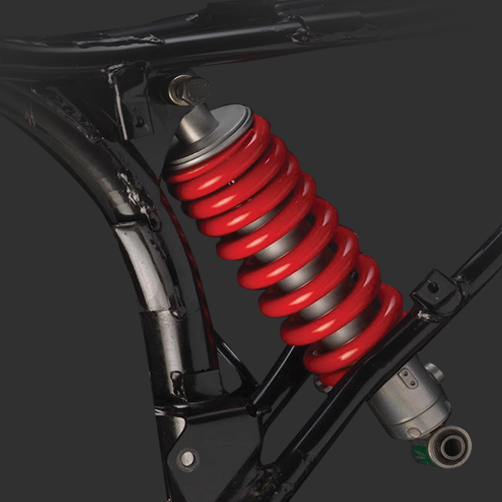

  • Rear Suspension

    Mono Tube - Mono Shock
download e-brochure Click here to download Owner’s Manual

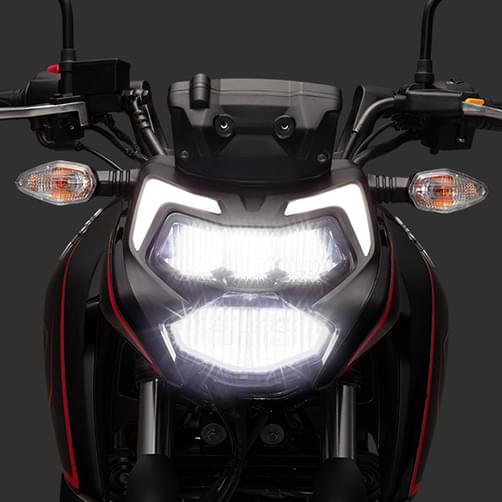

  • Battery Rating (Ah)

    12V, 8Ah MF

  • Headlamp

    AHO LED Headlamp with LED position lamp

  • Tail Lamp

    LED
download e-brochure Click here to download Owner’s Manual

  • Tyre (front)

    90/90-17 49P (Tubeless) (or)
    90/90-17 M/C 49S (Tubeless)

  • Tyre (rear)

    130/70-17 M/C 62P Tubeless (or)
    130/70-17 M/C 62S Tubeless (or)
    130/70 R17 M/C 62P Tubeless

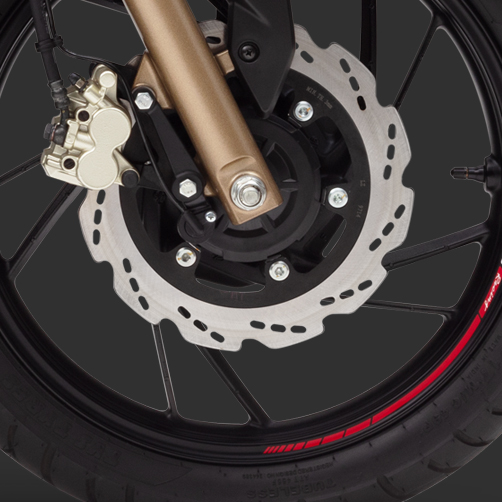

  • Front (Disc/Drum)

    Disc 270 mm (Petal Type)

  • Brake Fluid

    DOT 3 / DOT 4

  • Rear (Disc/Drum)

    Disc 240 mm (Petal Type)
download e-brochure Click here to download Owner’s Manual

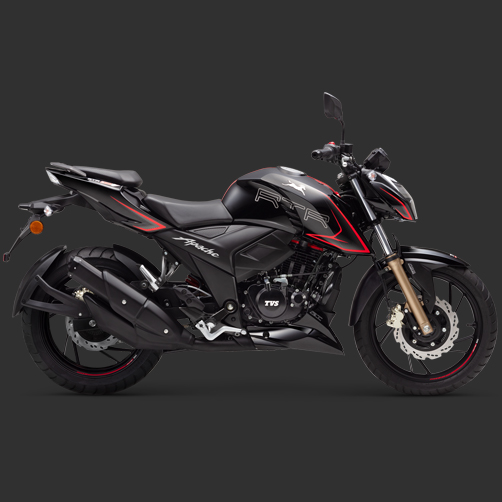

  • Height

    1105 mm

  • Length

    2050 mm

  • Width

    790 mm

  • Wheelbase

    1353 mm

  • Ground Clearance

    180 mm

  • Saddle Height

    800 mm

  • Kerb Weight with 90% Fuel and Tool kit

    151 kg
download e-brochure Click here to download Owner’s Manual

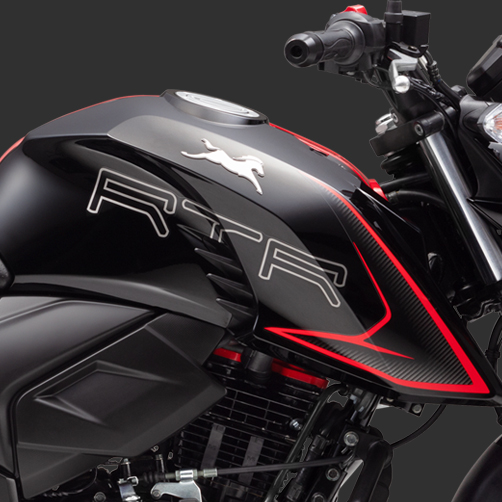

  • Fuel Tank Capacity

    12 l

  • Reserve

    2.5 l
