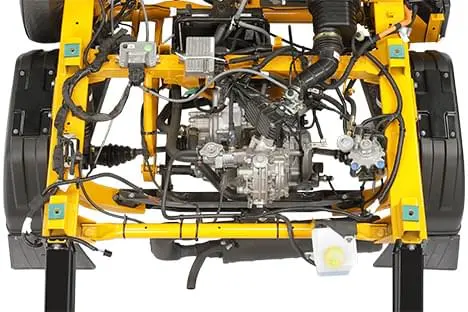

Type
4 Stroke, Single Cylinder Liquid Cooled,
EFi - Si-Engine
EFi - Si-Engine
Displacement
225.8 cc
Maximum Power
6.91 Kw @ 5000 rpm
Maximum Torque
15.5 Nm @ 3000 rpm
Max Speed (Unladen)
60 ± 2 Km/h
Starting
Integrated Starter Generator & Hand Starter
Ignition System
Electronic Control Unit – EFi Spark Ignition

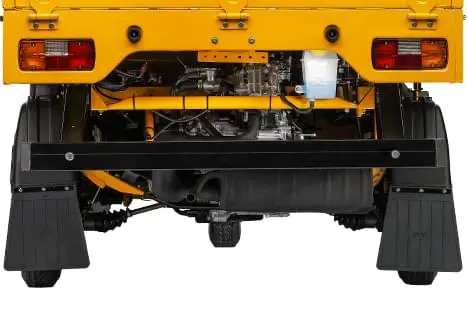

Transmission
4 Forward and 1 Reverse speed,
Constant Mesh, Fork & Cam Type Shift Mechanism
Constant Mesh, Fork & Cam Type Shift Mechanism

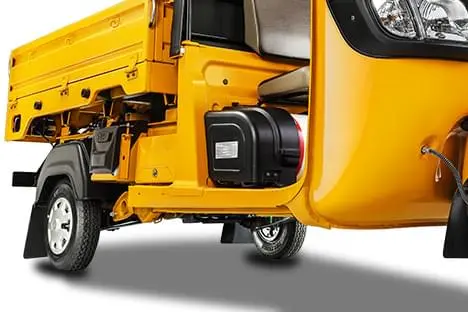

Type
Semi Monocoque

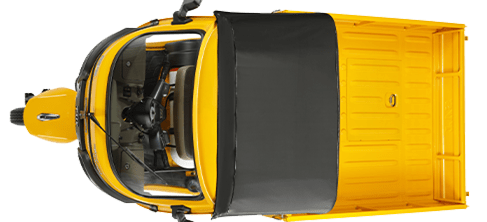

Cargo box dimensions (LXWXH)
1500 mm x 1300 mm x 280 mm

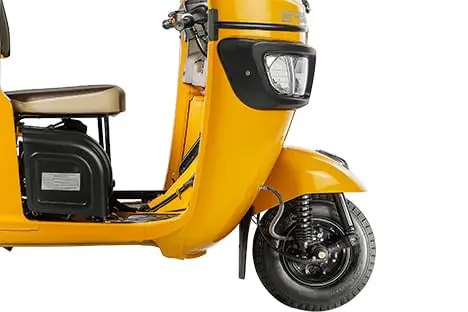

Front & Rear
Swing Arm with Hydraulic damper & Coil Spring

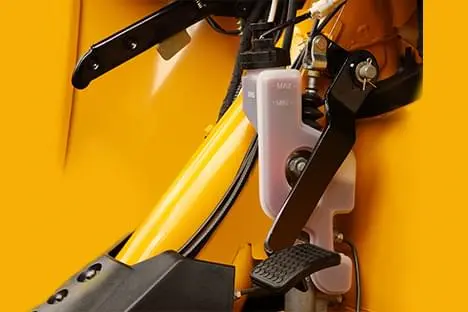

Front & Rear
Drum, Hydraulic

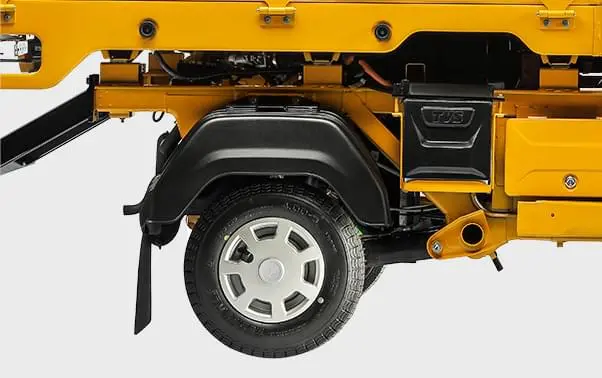

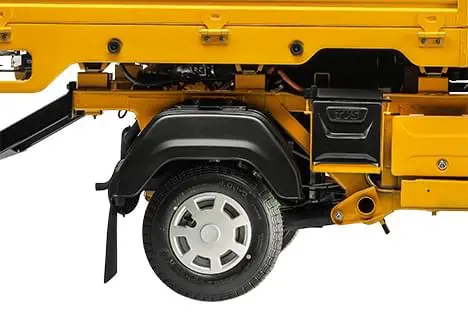

Rim size - Front & Rear
3.00 D x 8"
Type size - Front & Rear
4.00 – 8,76F 6 PR,
4.00 – 8,76E 6 PR
4.00 – 8,76E 6 PR
Battery
12 V, 32 Ah
Head Lamp
35/35 W, DC
Tail Lamp, Stop Lamp
21 W, 5 W
Turn Signal Lamp
10 W
Reverse Lamp
21 W
Warning Lamp
Malfunction Indication Lamp, Battery Indication Lamp,
Low Engine Oil, Brake Oil & Fuel Warning (CNG)
Low Engine Oil, Brake Oil & Fuel Warning (CNG)

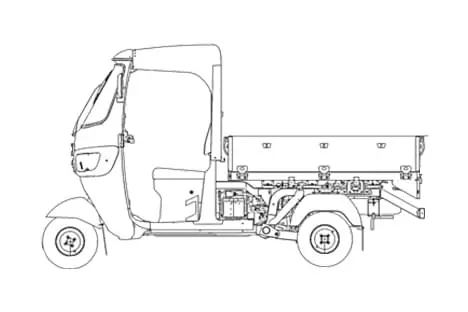

Wheelbase
1990 mm
Wheel Track
1150 mm
Overall Length
3010 ± 20 mm
Overall Width
1350 ± 10 mm
Overall Height
1720 ± 10 mm
Kerb Weight with 90% fuel
464 Kg
Gross Vehicle Weight
864 Kg
Ground Clearance
169 mm

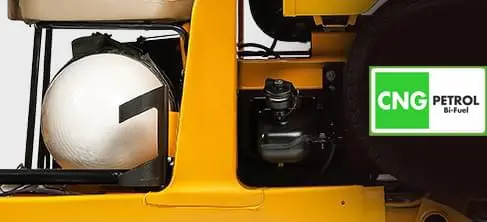

Fuel Tank Capacity
28 / 33 Ltr. (Water equivalent),
Petrol – 3 ltrs (Bi-Fuel)
Petrol – 3 ltrs (Bi-Fuel)
Gradeability
10°
