crafted to impose

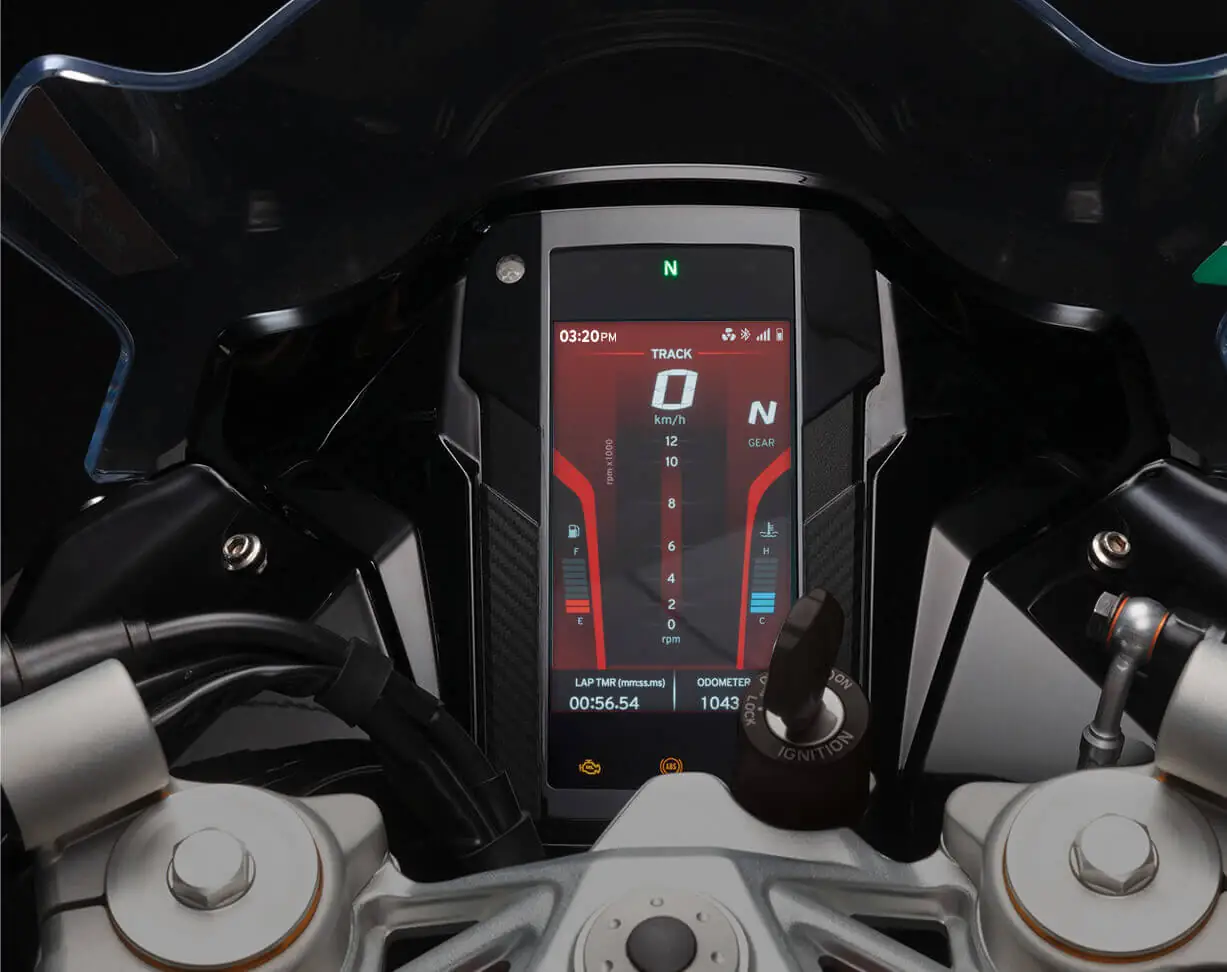

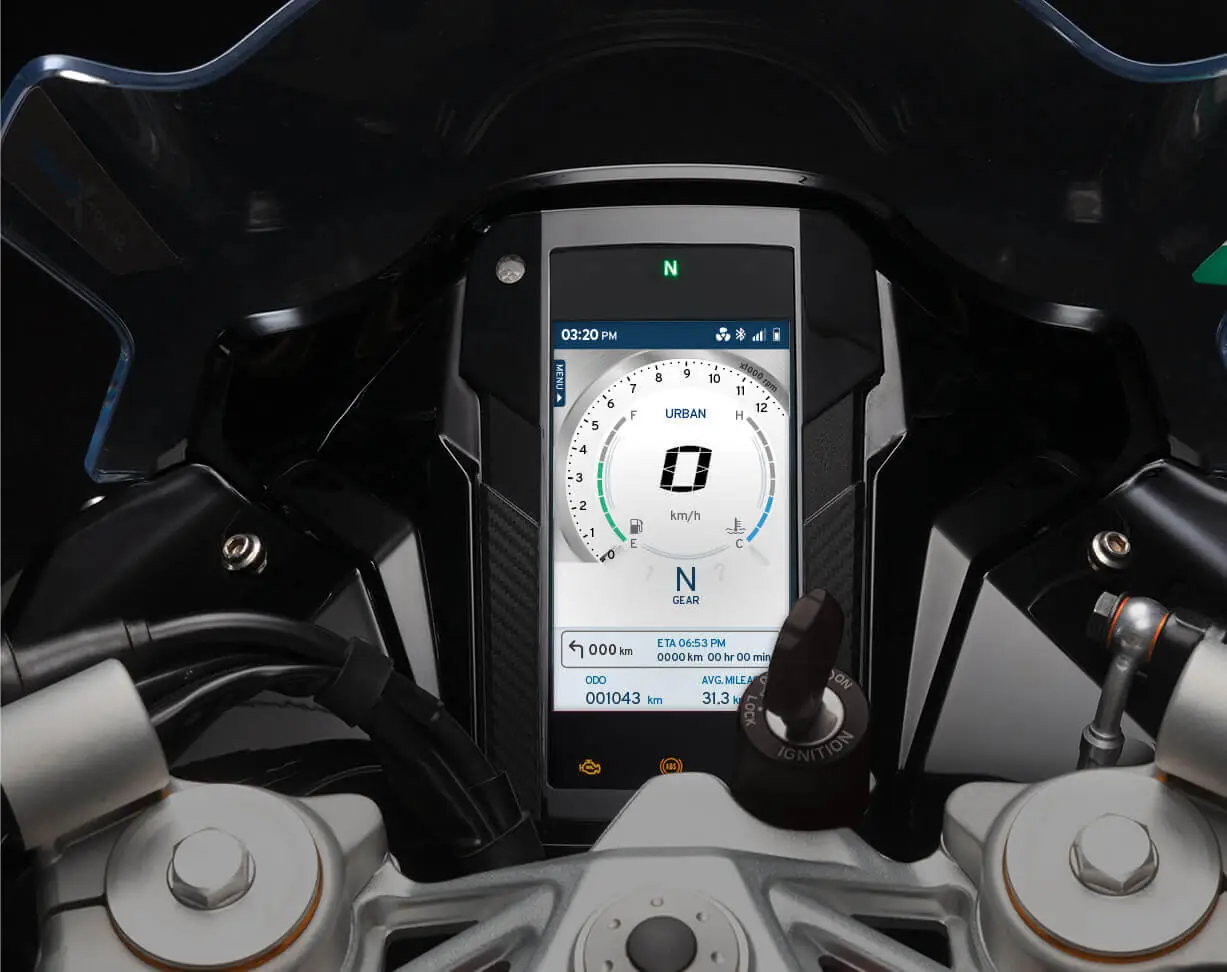

Multi Information Race Computer
The TVS Apache RR310 stays ahead in the race to the finish line– not just on the track, but in the race to the future as well. The race machine is equipped with a SmartXonnect enabled Multi Information Race Computer.
Crafted to impose
Development
Honed by rigorous testing and unlimited laps on the race track with key inputs and feedback by the TVS Racing Team to ensure ultimate control on the track and street. Racing heritage based expertise established since 1982, come standard with every TVS Apache RR310.
Crafted to impose
Concept

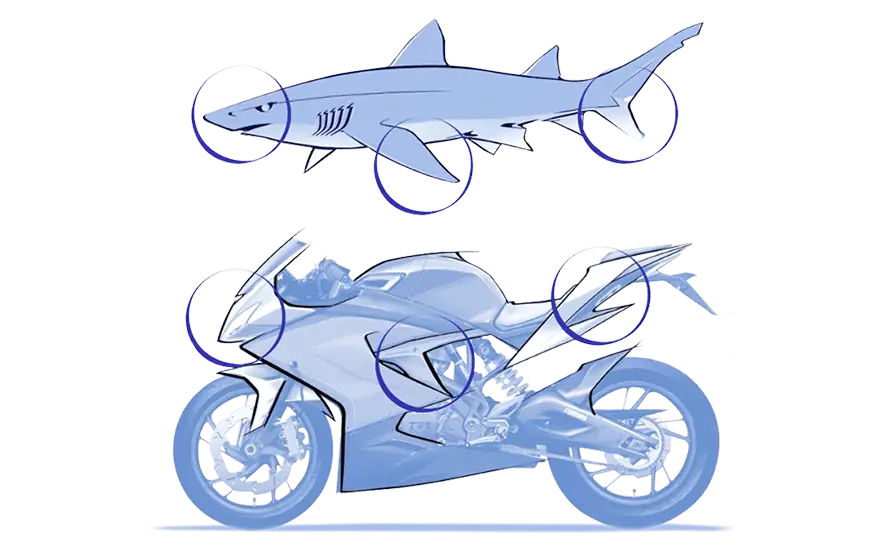

Inspired by the deadliest predator – the Shark. The Apache RR310 is conceptualized to have an aggressive and ready-to-attack silhouette which is aided by a raked-high tail and ‘Mass- Forward and Minimalist- Tail’ design. The Apache RR310, most powerful Apache till now, is based on the Akula Concept which won the ‘Best Concept Bike of Auto Expo 2016’ at New Delhi.
Crafted to impose
Bi-Led Twin Projector Headlamps
With aggressive brow lines, the first in its class Bi-LED Twin Projector headlamps offer higher intensity at day or night enabling you to ride with confidence at higher speeds.
Crafted to impose
Tail Light
Snake Fangs inspired LED tail lights complete the high sporty rake tail by giving the Apache RR310 a unique visual signature in its class.
Crafted to impose
crafted for power
Throttle-by-wire
A flick of the wrist now delivers precise performance on the track than ever before. The 2020 Apache RR310 is equipped with state-of-the-art Electronic throttle control (ETC) consisting of electronic throttle grip, electronic throttle body (ETB) and electronic control unit (ECU).
crafted for power
Racier Exhaust
The new race muffler with revised geometry has been engineered for higher lean angles, and will always sound like music to your ears. The muffler chamber has been optimised to deliver a high fidelity, racier sound that will echo across track and terrain alike.
crafted for power

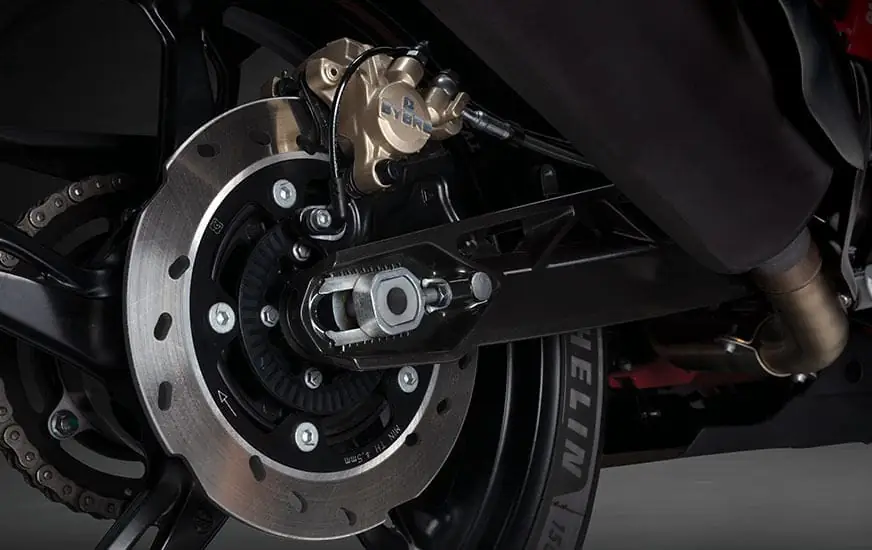

Dual Channel ABS
The Dual-channel ABS is the perfect synthesis of performance and functionality. The ABS prevents wheel lock, and rear wheel liftoff protection keeps the racer's wheels on the ground, even when braking late into corners.
crafted for power
Race Tuned Slipper Clutch
The all new RT slipper clutch allows for rapid downshifts that prevent rear wheel hopping, allowing for later braking and more precise cornering. The assist function tightly binds the clutch plates during acceleration, to provide enhanced torque carrying capacity with reduced clutch operating force.
crafted for power
Unique Reverse Inclined DOHC Engine
The race-derived 310cc powerplant makes upstream air being used effectively to pass through the air filter with ram effect. This innovative and unique design provides a compact engine layout resulting in mass centralization delivering best-in-class Power-to-Weight ratio.
crafted for power

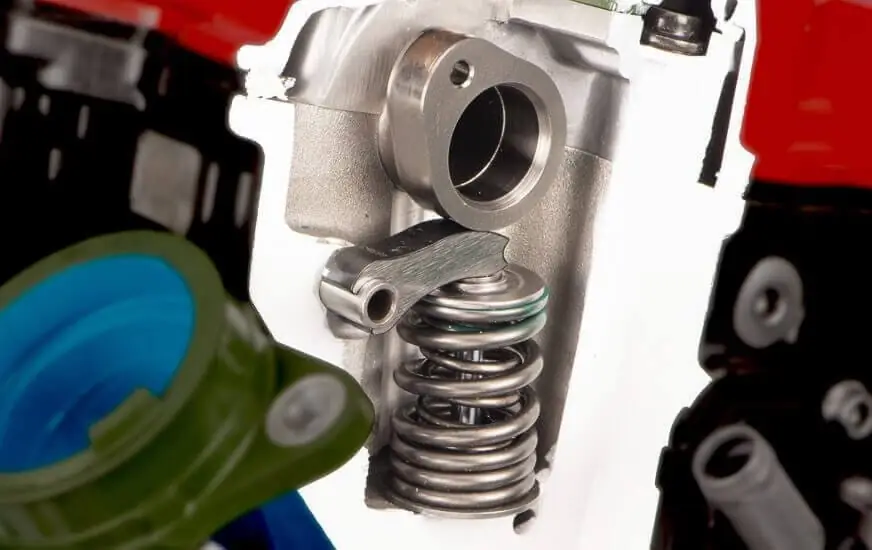

Double Over Head Cams (DOHC) with Finger Follower
Twin Over Head Cam shaft with hollow cam shaft carries 30% lower valve train mass. Finger follower with Diamond Like Carbon (DLC) coating gives more wear resistance and durability providing the high rev engine, an ultimate power delivery at top speeds.
crafted for power

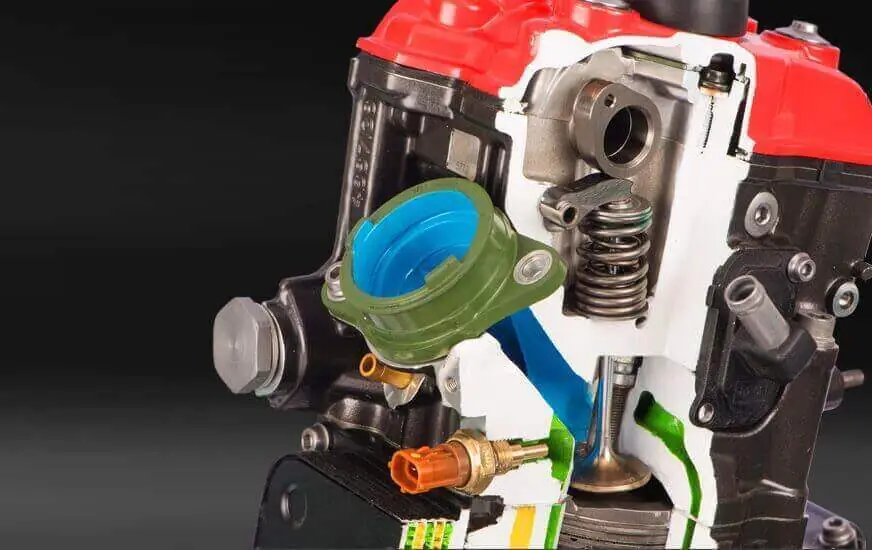

Down Draft Port with Button Tappet arrangement
26 varieties of buttons each with 20-micron steps provide 8% increase in volumetric efficiency due to gravity assistance, enabling the engine to offer racing performance and engine durability for consistency in performance.
crafted for power

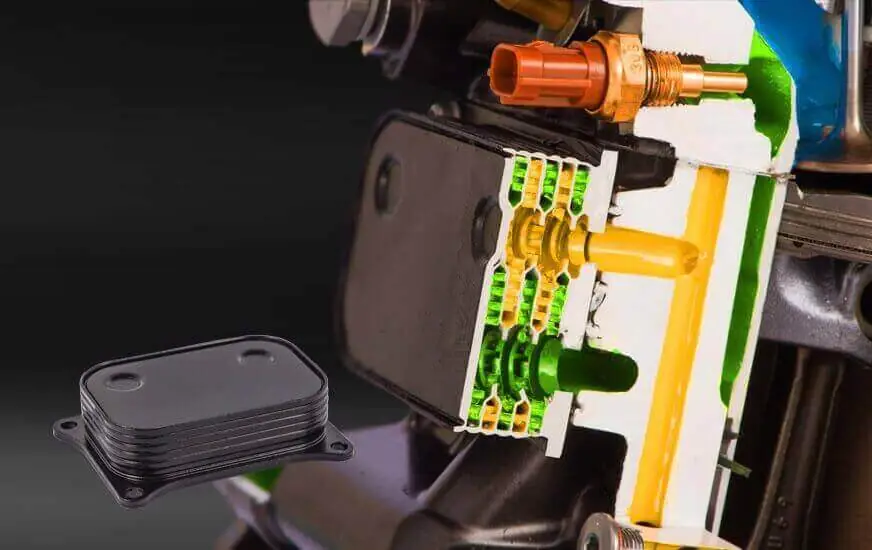

Liquid-Cooled Oil-Coolant Technology
In high performance Apache RR310 engine, the engine oil heats up and loses its lubricating properties. Apache RR310 has 23 rows of tubes for optimized cooling efficiency keeping the high revving engine at optimum temperature delivering maximum performance.
crafted for power
Hydraulic Cam Chain Tensioner
The Hydraulic Cam Chain Tensioner along with the drive is taken from a counter gear and has a Bleed Valve and Check Valve offering lesser maintenance and durable engine quality.
crafted for power

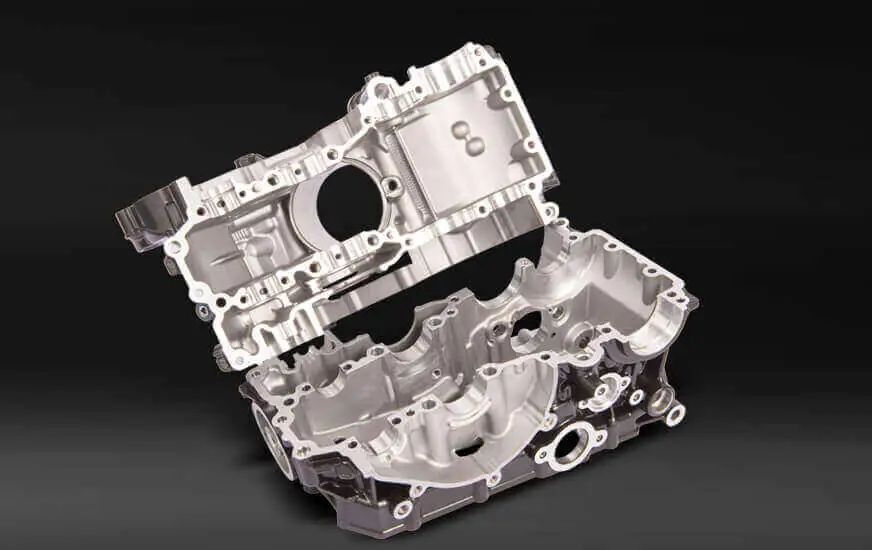

Horizontal Split Crank Case
4 axis single plane split line provides optimal weight of crankcase with adequate stiffness. Inclined split crankcase design makes a compact engine layout reducing the engine weight by 10%. This race responsive design of the engine gives more Power-to-Weight ratio and a durable engine with less maintenance.
crafted for power
Track Tuned 6-speed gearbox
The Bottom mounted shift-lever and gears with negative back rack angle machined in all the gears lug to lug allows ease of engagement of gear and no slippage at higher speeds for precision shifts; quick launches and avoids false neutrals
crafted for power
crafted by the wind
Advanced aerodynamics
Extensive designing and testing in a state-of-the-art wind tunnel has yielded the best-in-class coefficient of drag to achieve maximum downforce, minimum wind blast and higher top speed.
crafted by the wind
Ram-air Intake
Reverse inclined engine makes upstream air being used effectively to pass through the air filter with ram effect, thereby giving a compact engine layout and optimum engine temperature at all conditions.
crafted by the wind
Gill Vents
Patented Deflector Cowl along with gill vents channel hot air away from the engine giving higher ride comfort for the racer at any time on the track.
crafted by the wind

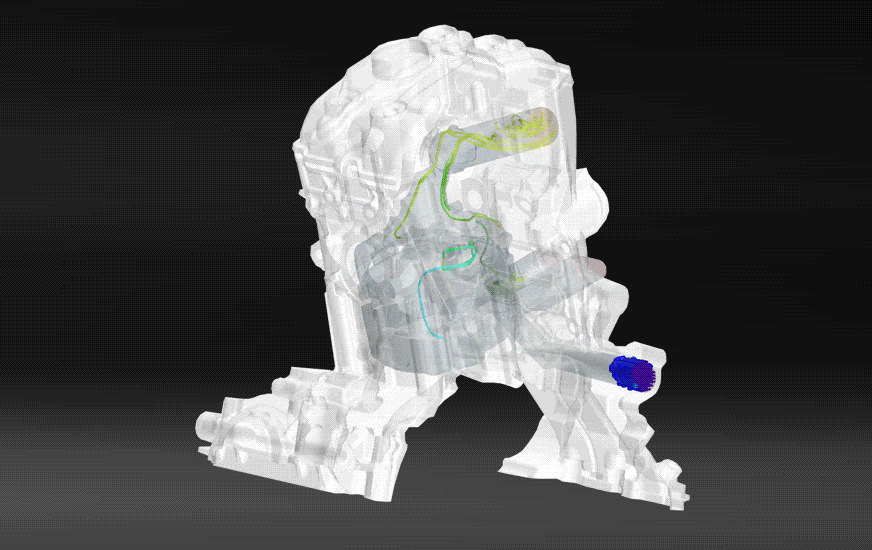

Engine Coolant Jacket Optimization
The cylinder head is designed and crafted to have best-in-class heat management by reducing the engine temperature by 40o C. This again allows for better performance and higher revving.
crafted by the wind
crafted for agility
Superior Michelin Road 5 Tyres
The TVS Apache RR310 is equipped with all-new Michelin Road 5 tyres. engineered with next-gen compounds and featuring Michelin's patented ACT+ technology, these tyres provide superior grip for cornering and offer a premium ride feel.
crafted for agility

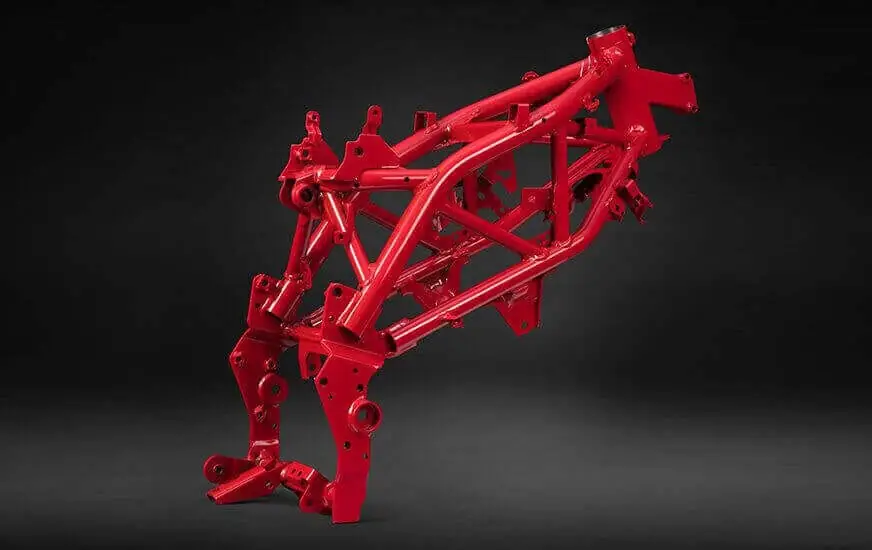

Racing Origin Trellis Frame
Light weight trellis frame offers higher stiffness with best structural efficiency for total control, excellent dynamic response at higher speeds and ease of manoeuvrability to cut through city traffic.
crafted for agility

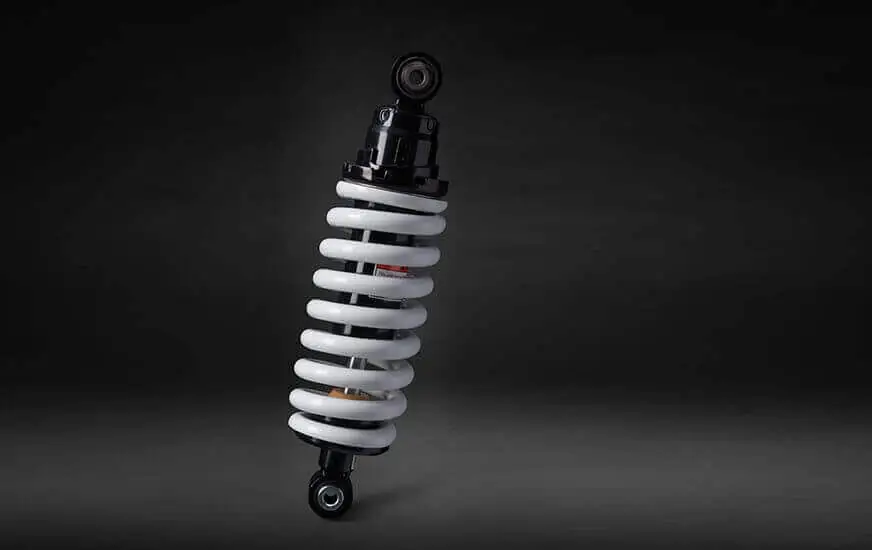

Race tuned KYB suspension
Honed and tuned by the experts from KYB. The Monoshock with monotube floating piston technology has hydraulic stopper with check valves providing precise damping and smooth dynamic response to achieve best-in-class lateral acceleration and cornering speeds.
crafted for agility

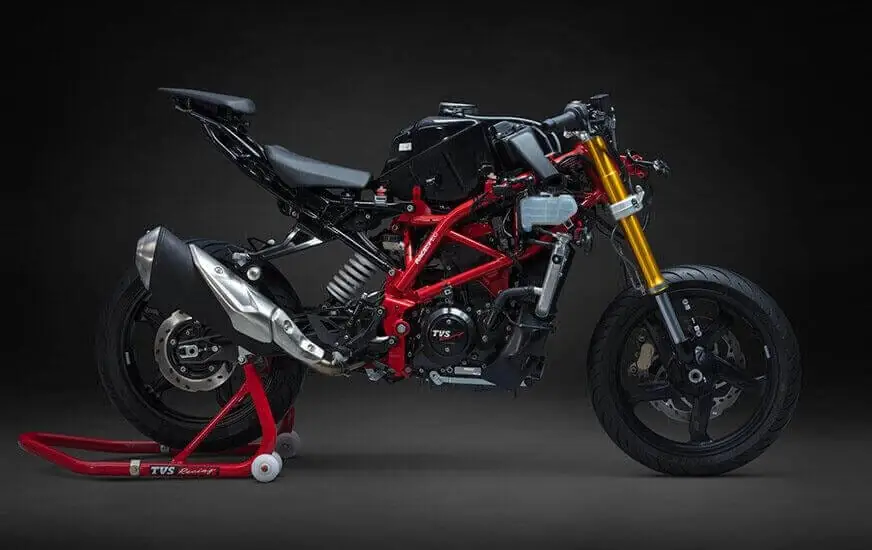

Mass centralised layout
The vehicle engine layout fits compactly on the frame providing a low centre of gravity for uncompromised handling and unmatched control.
crafted for agility
Sporty Ergonomics
The rider triangle is optimized for better load distribution on the shoulder to give excellent steering control and good low-back comfort. The seat profile is sculpted for ease of sliding around to achieve precise racing line while hitting the apex.
crafted for agility

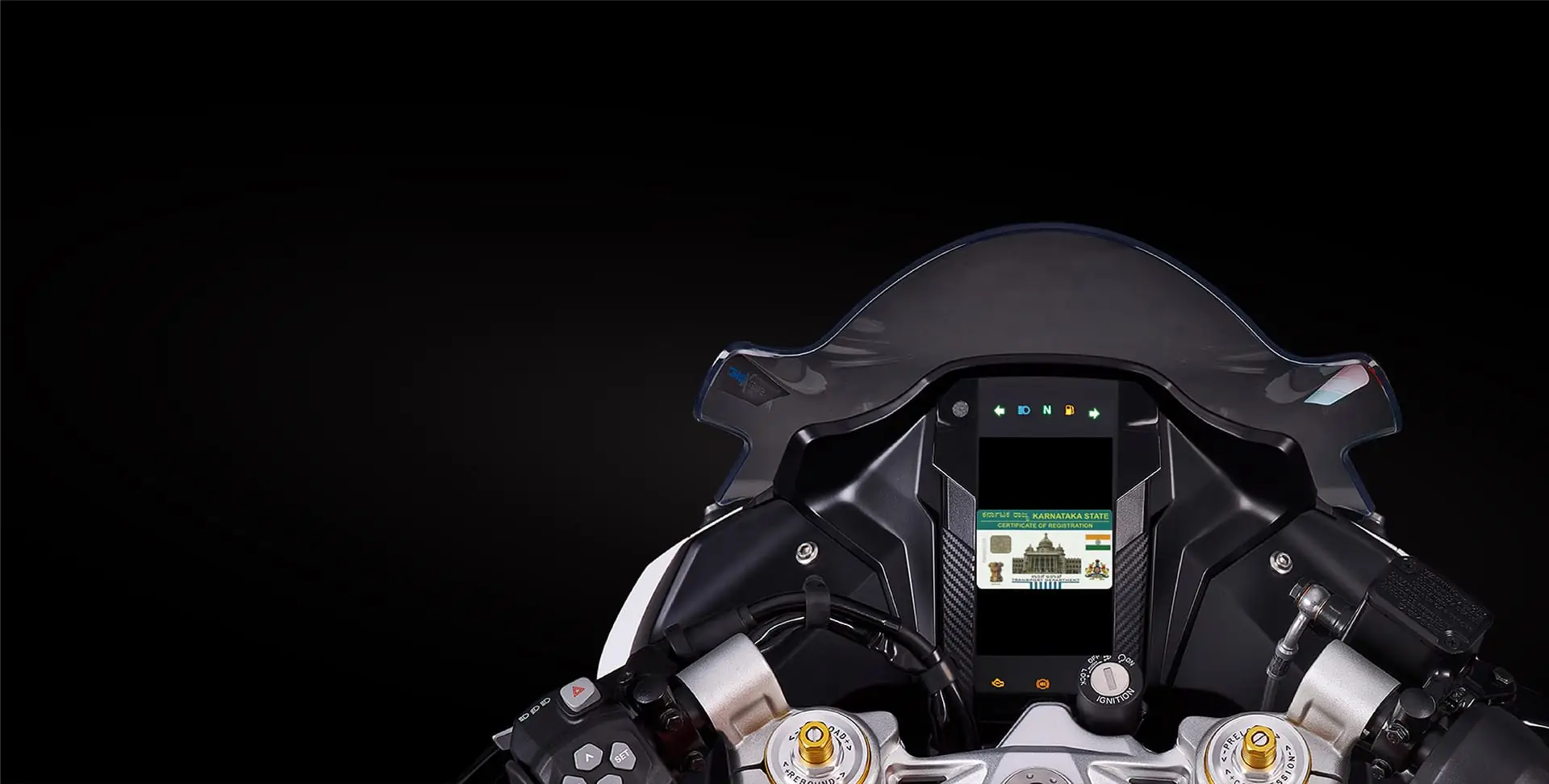

Digi Docs
An intelligent feature on the Apache RR310 to store/transfer images and documents from the TVS Connect App to Cluster. You can now store and view up to 3 documents like RC card, Driving license etc on your cluster

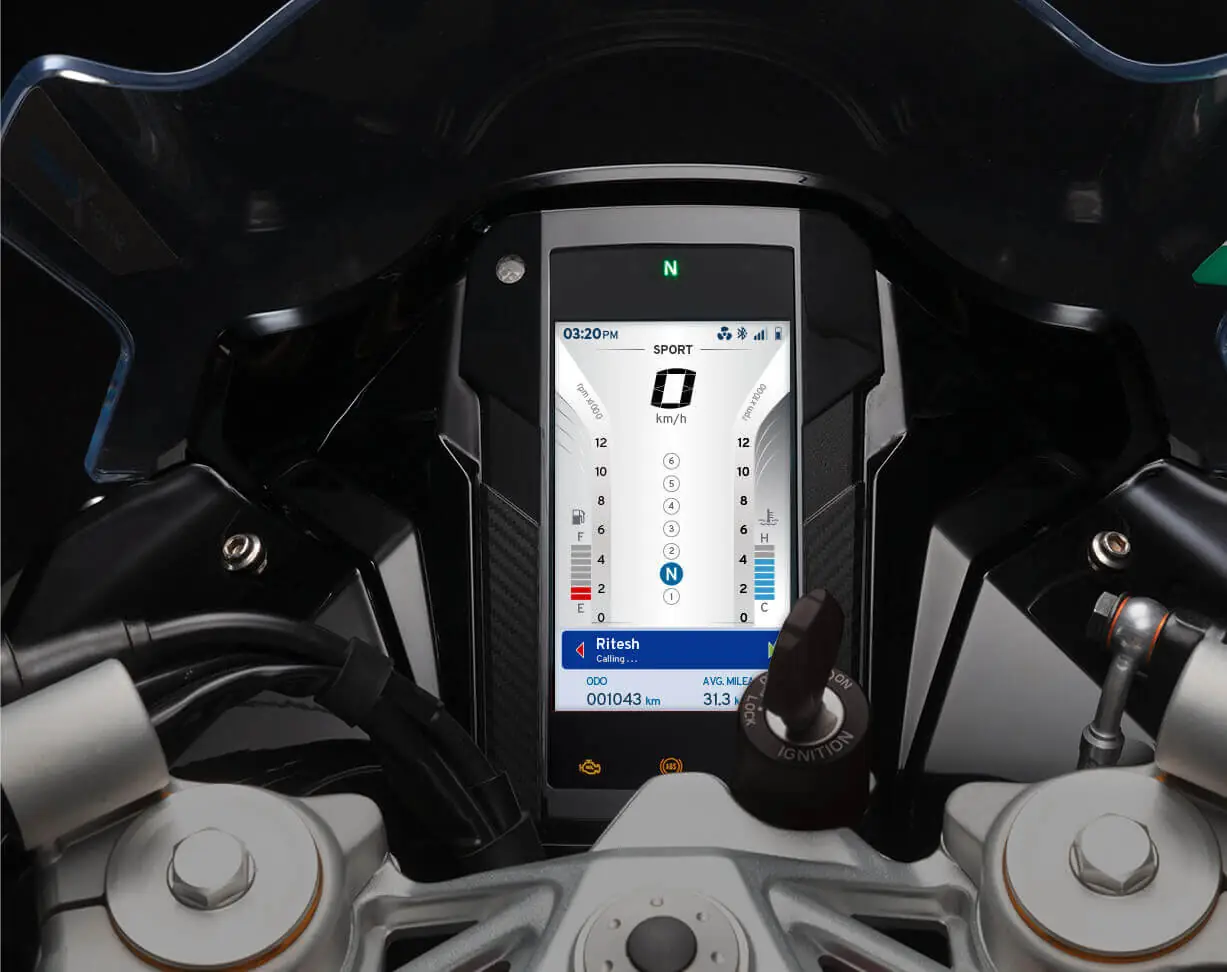

Intelligent Cluster Features
The Apache RR310 now comes with intelligent and advanced cluster features like
  • Dynamic rev limit indicator to alert the rider depending on the engine temperature and rev limit for enhancing the safety and durability of the engine
  • Overspeed indication to warn the rider as per set speed limit (rider defined)

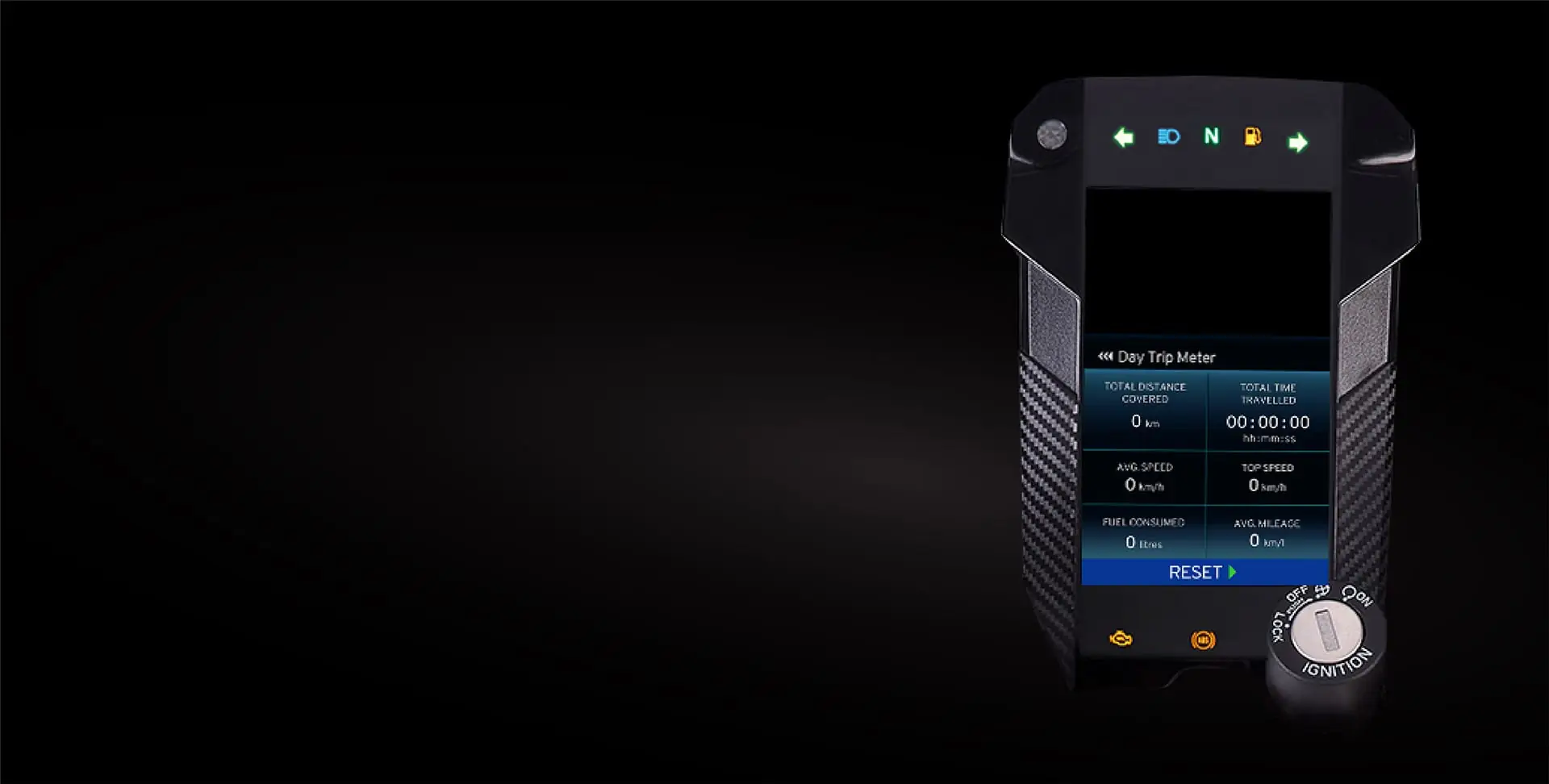

  • Day trip meter to track and display daily ride statistics like distance covered, time traveled, average speed, top speed, fuel consumed and a lot more.
crafted to overcome

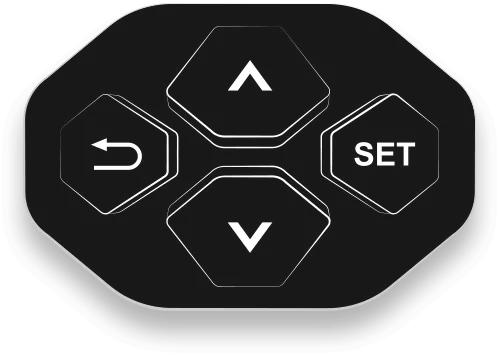

Dedicated Control Cubes
The control cubes on the handlebar, allows you to instinctively switch between ride modes with the touch of a button while you are on the go. Control cubes also helps the racer to navigate through the Multi Information Race Computer giving access to a host of essential information and personalization widgets
crafted to overcome

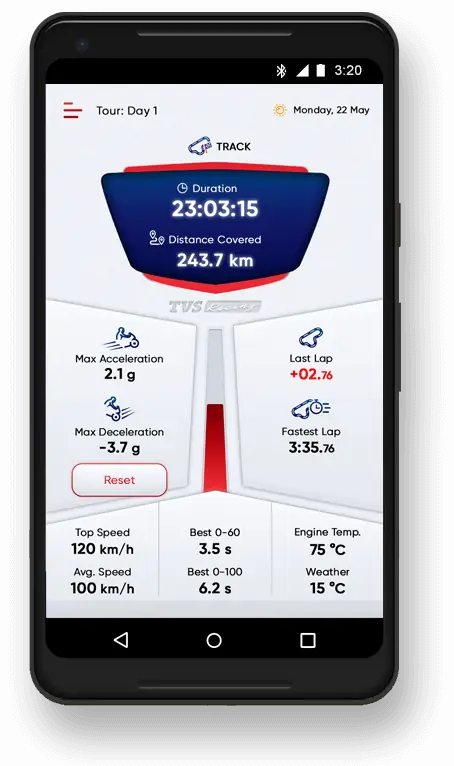

TVS SmartXonnect

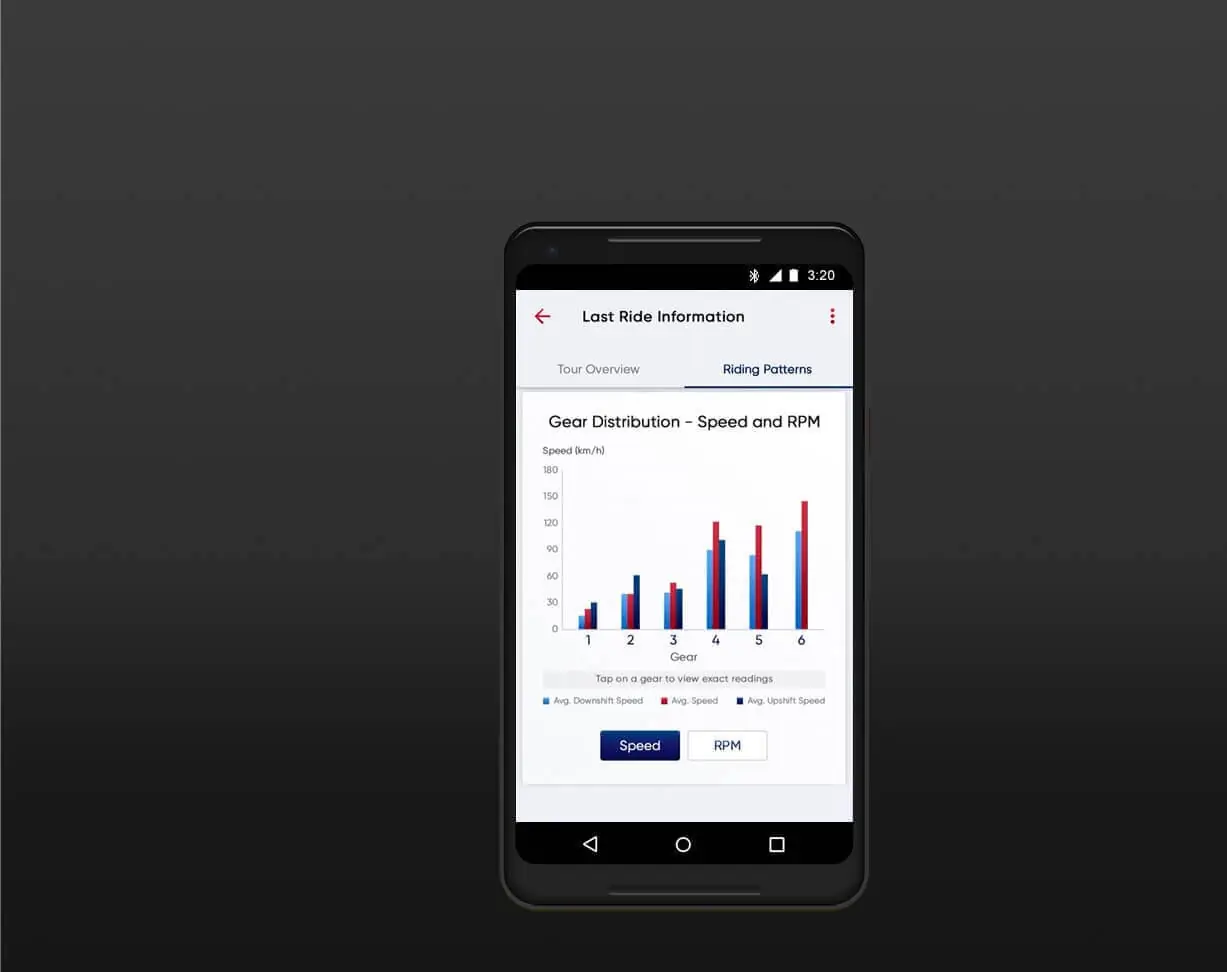

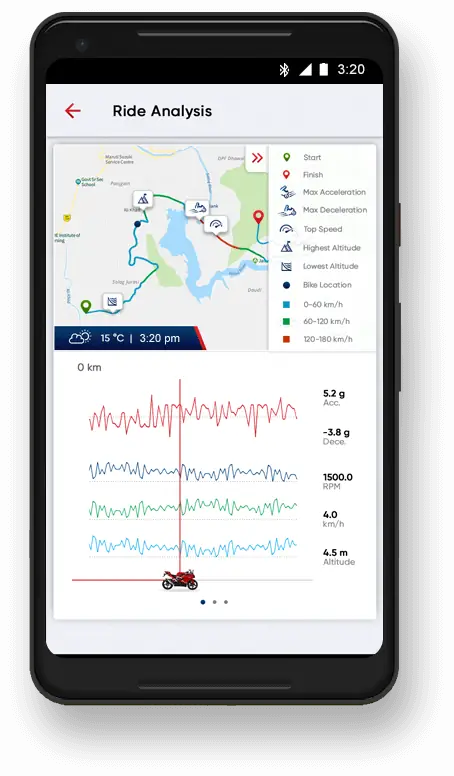

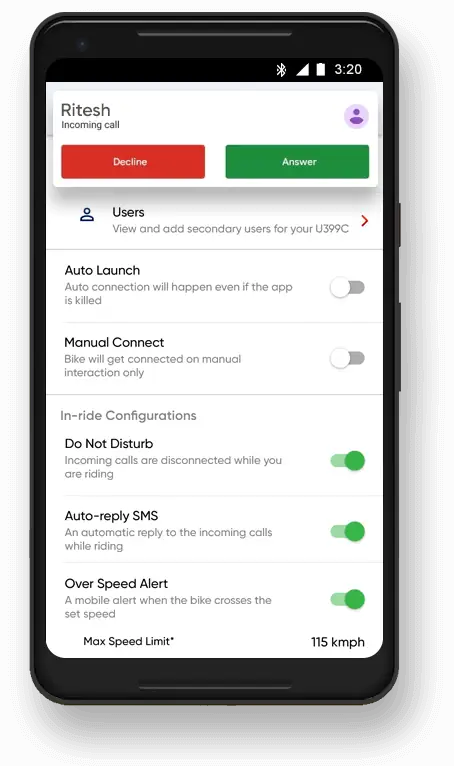

The SmartXonnect app links your smartphone and to your race machine. The cutting-edge Bluetooth connected app offers up a range of race analytics and data that allows any racer to review their racing style and constantly improve it on the track. The app displays a detailed post-ride/race analysis which includes statistics like distance covered, gear shifting points, best lap record, G-Force, interactive tour map plot, ride pattern analysis, and much more.
crafted to overcome
Glide Through Technology Plus
Tuned feature for urban and rain mode riding, GTT+ enables an extremely smooth and controlled ride. With this feature, one can put the vehicle in motion with a slow release of the clutch lever, without the throttle operation. This eliminates the synchronization of the clutch lever and throttle lever, further eliminating engine stalling. The maximum speed with GTT+ without throttle in Urban and rain mode:
Gear No. 1 2 3 4 5 6
vehicle speed 11 17 25 29 33 37
1 / 6
engine & Performance
Type SI, 4 stroke, 4 valve, Single cylinder, Liquid cooled, Reverse inclined
Engine capacity 312.2cc
Maximum power Sport and Track mode - 25 kW@9700 engine rpm (34 PS@9700 engine rpm)
Urban and rain mode - 19 kW@7600 engine rpm (25.8 PS@7600 engine rpm)
Maximum torque Sport and Track mode - 27.3 Nm@7700 engine rpm
Urban and rain mode - 25 Nm@6700 engine rpm
Bore 80 mm
Stroke 62.1 mm
Fuel injection Bosch - Closed loop RT-FI
Throttle control Electronic throttle control with multiple ride modes
Bore to stroke ratio 1.29
Starting Electric start
Idle speed 1700 ± 200rpm
Ignition Dynamically controlled integrated high energy ignition system
Power to weight Ratio 0.144 kW/kg
Compression ratio 10.9 :1
Air filter Dry Paper filter
Cooling system Liquid cooled
Muffler Single pipe and single body design
Clutch Wet multi plate - 7 plate design, RT slipper clutch
Gear box 6 speed
Max speed 160 km/h - Sport and Track mode
125 km/h - Urban and rain mode
Acceleration 0-2sec (speed in km/h) 46.77 km/h
0-60km/h (time in sec) 2.93 s
0-100km/h (time in sec) 7.17 s
chassis, suspension & electrical
Frame Trellis frame, split chassis
Front Suspension Inverted cartridge telescopic Fork
Rear Suspension Two arm Aluminium die-cast swingarm
Mono tube floating piston gas assisted shock absorber
Battery 12V, 8Ah
Headlamp Bi-LED projector, 30W@13 V
Tail Lamp LED 4 W
Instrument cluster 5" TFT screen connected cluster
wheel, tyre & brake
Rim Size (Front) MT 3.0x17
Rim Size (Rear) MT 4.0x17
Tyre Size (Front) 110/70-ZR17 M/C 54W Tubeless - Michelin ROAD5
Tyre Size (Rear) 150/60-ZR17 M/C 66W Tubeless - Michelin ROAD5
Front Disc 300mm Petal type with ABS
Rear Disc 240mm Petal type with ABS
ABS With 3 ride modes
Brake Fluid DOT 4
dimensions, weight & fuel tank capacity
Height 1135 mm
Length 2001 mm
Width 786 mm
Wheelbase 1365 mm
Ground Clearance 180 mm
Saddle Height 810 mm
Kerb Weight 174 kg
Max payload 130 kg
Full 11 l
limitless assist
24 X 7 All India TVS Apache RR310 Roadside Assistance
Exclusive Dealer & Price

Ex Showroom price* Exclusive of mandatory and other accessories*

259990 *
