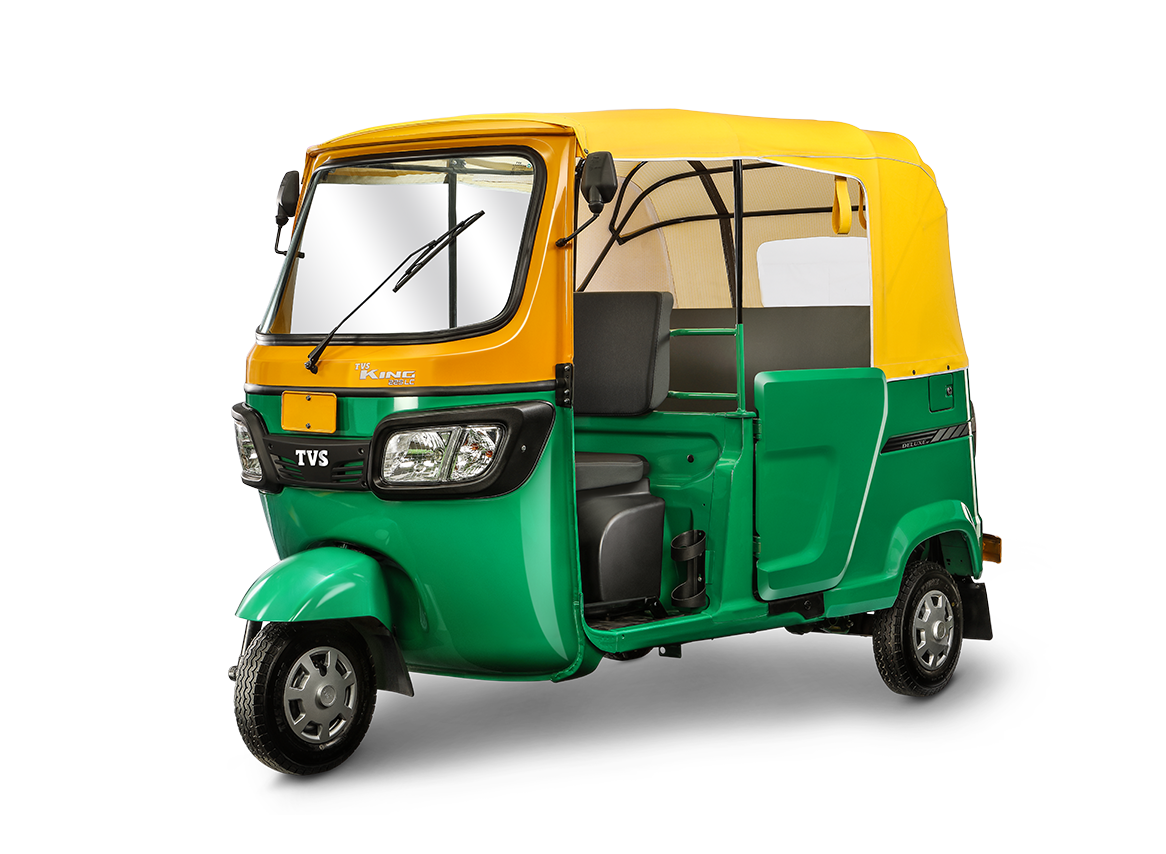

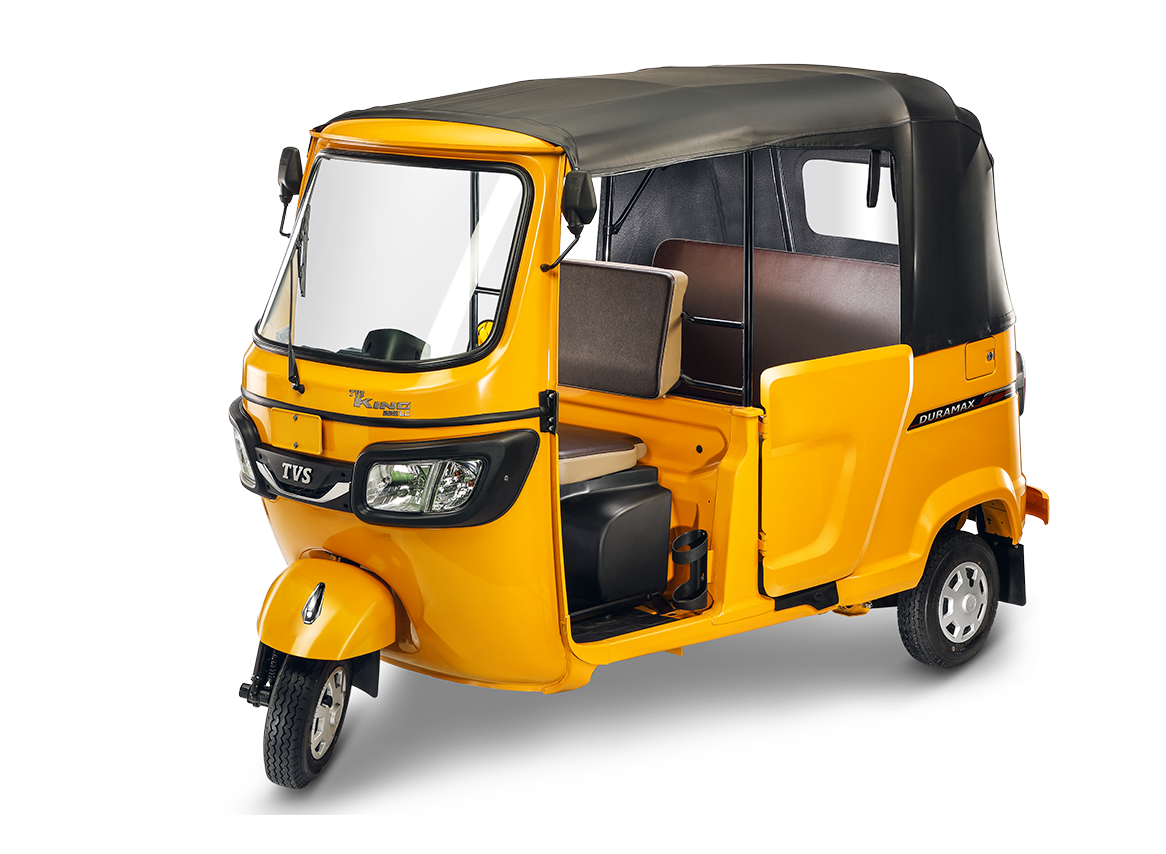

TVS King Auto BS6: Price, Mileage, Colours & Specifications

Features

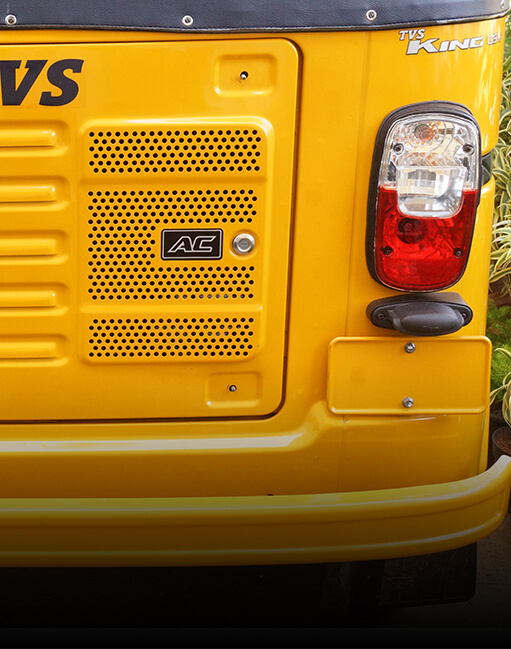

Chassis Mounted Bumper

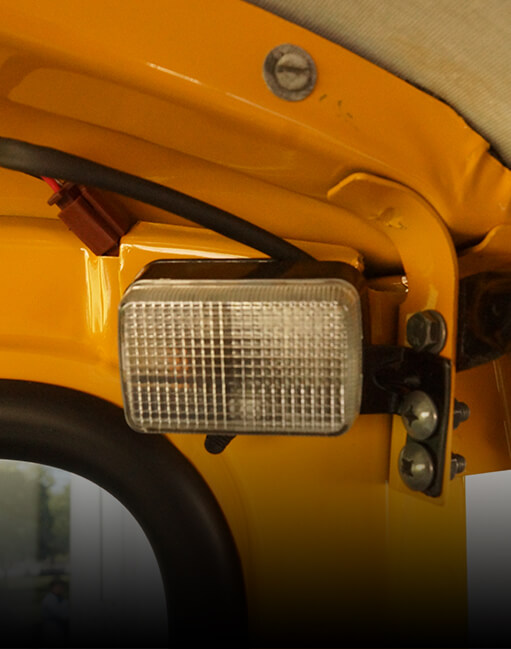

Driver Cabin Light

Dual Tone Seats

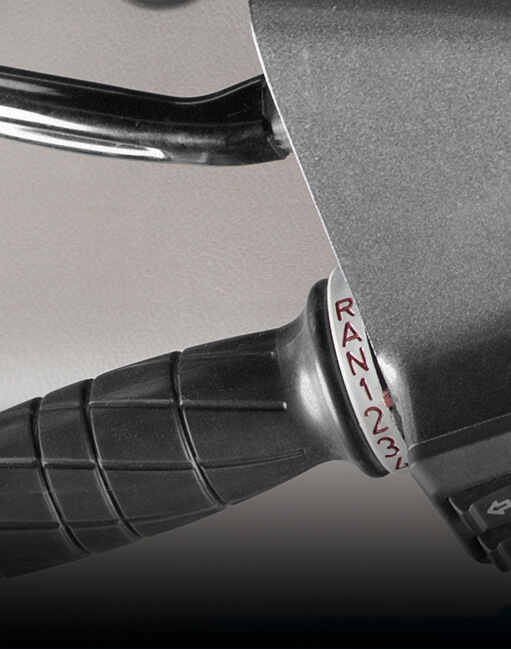

Easy to Operate Reverse Gear

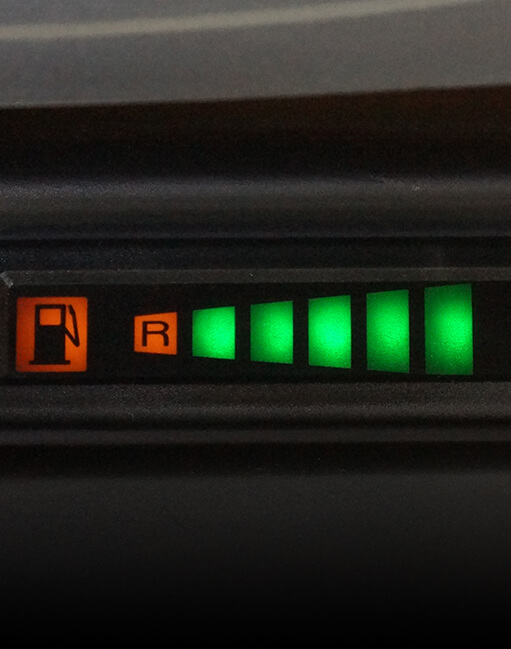

Fuel Level Indicators

Fuel Lid with Lock

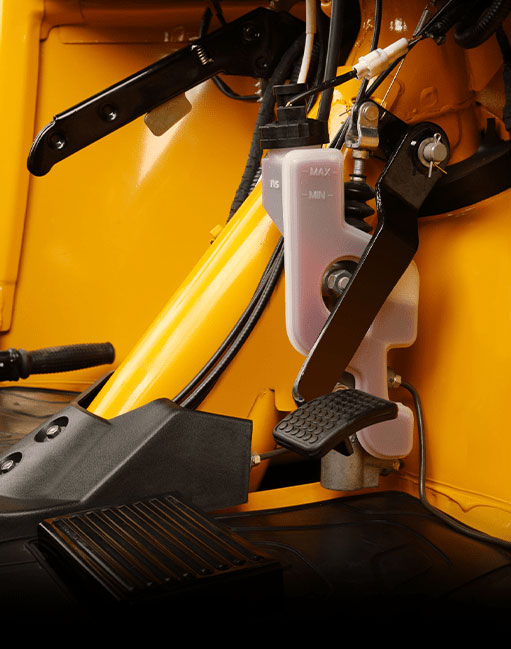

Head Tube Cover

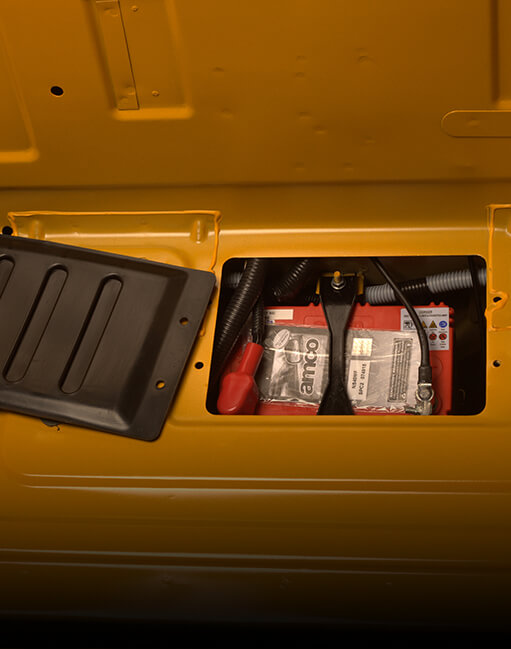

Maintenance Free Battery

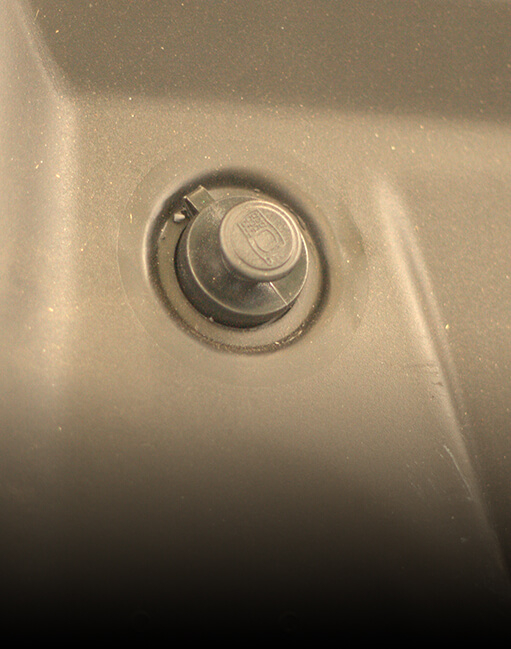

Mobile Charging Socket

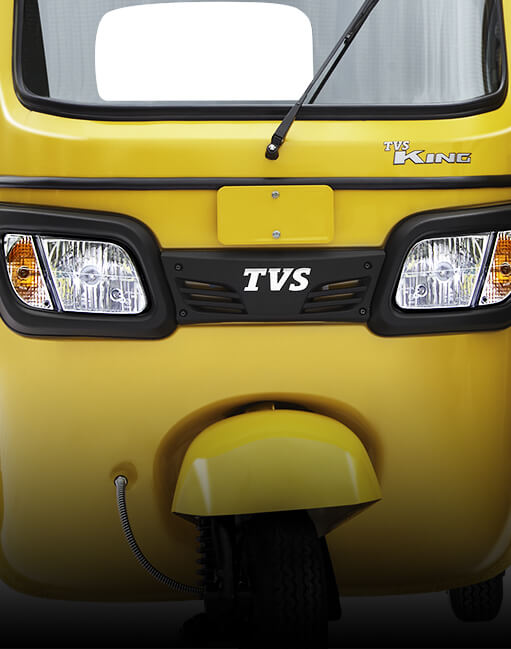

Twin DC Head Lamps

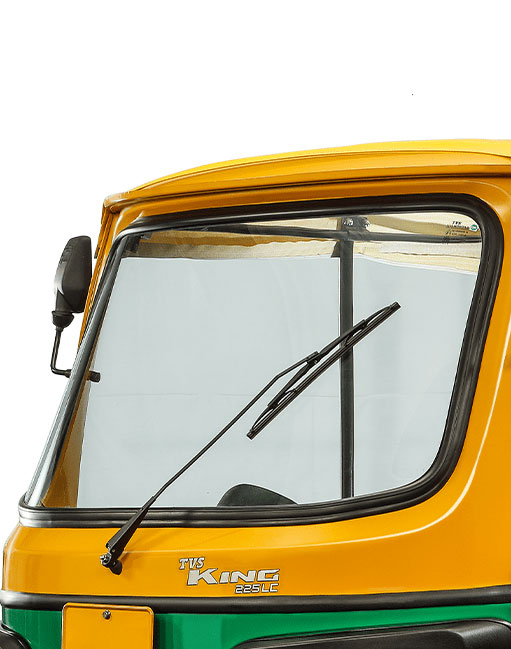

Single Large Wind Shield

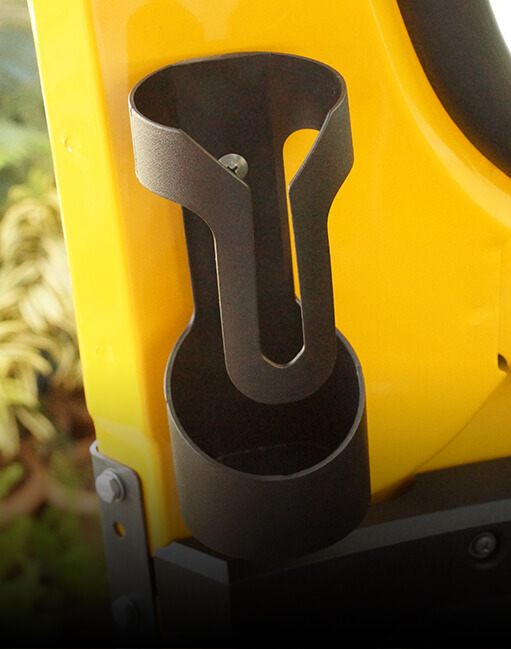

Water Bottle Holder

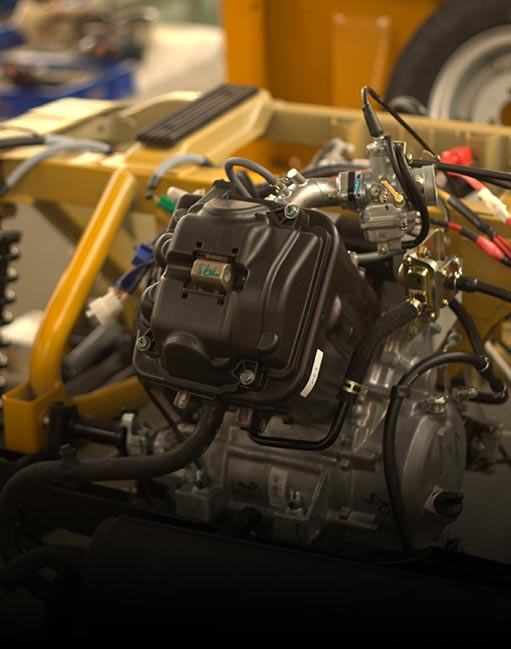

Water Proof Electricals

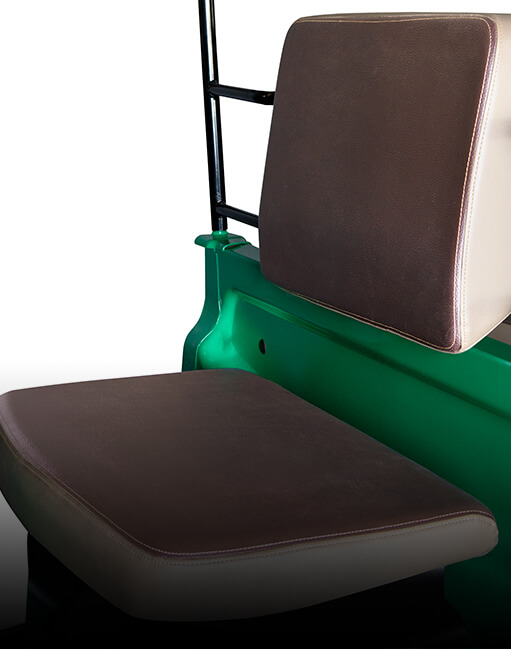

Wider Driver Back Rest

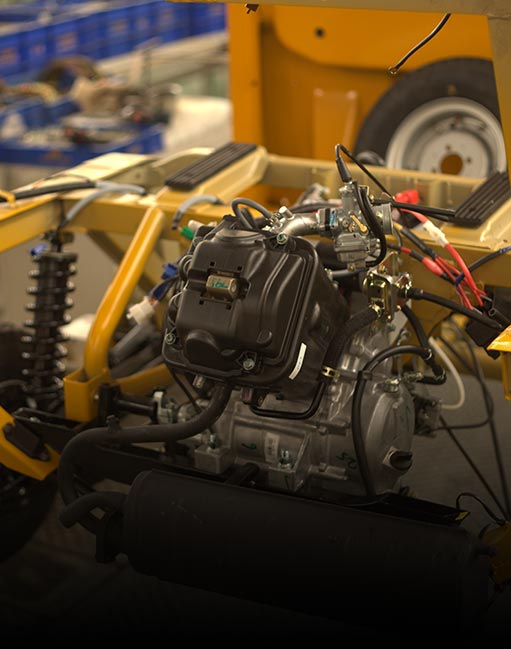

Easy to Service

Engine Compartment Lamp

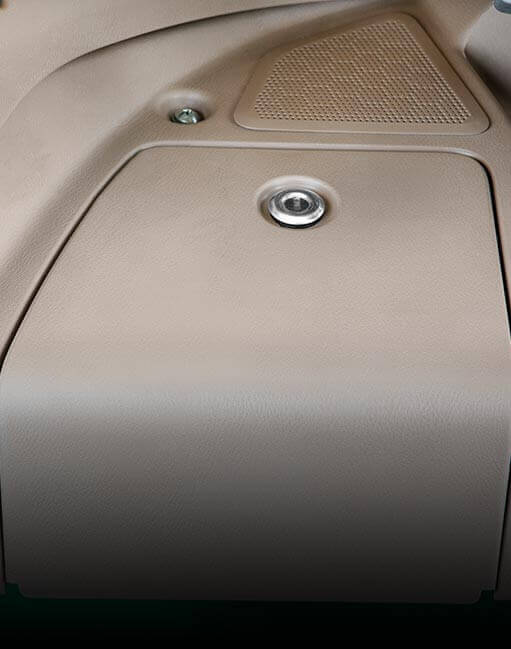

Larger Theft-proof Dual Utility Box

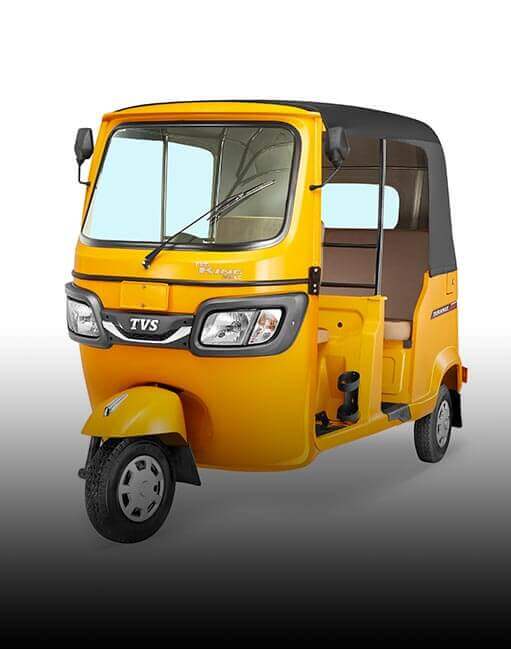

Stylish 3D Embellishment

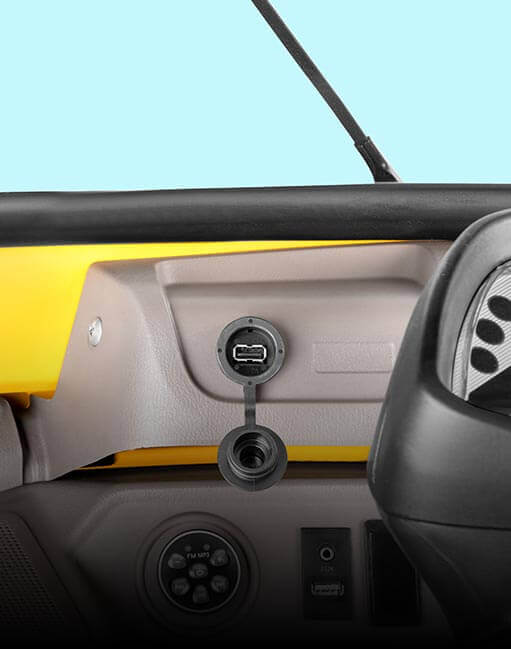

Smart USB Charger

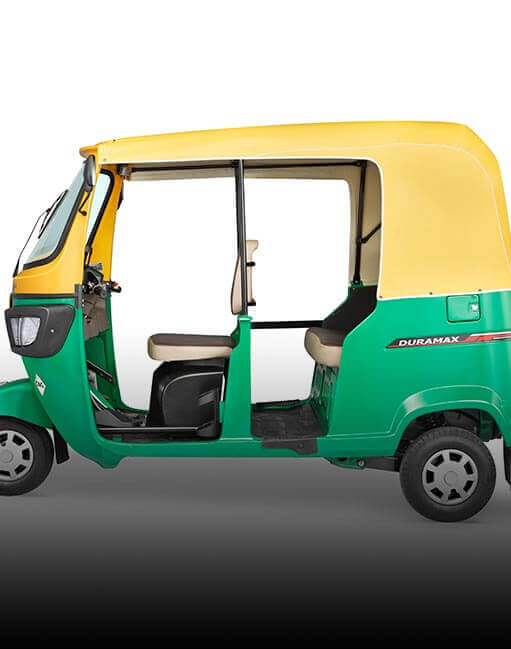

Stronger Soft Top Structure

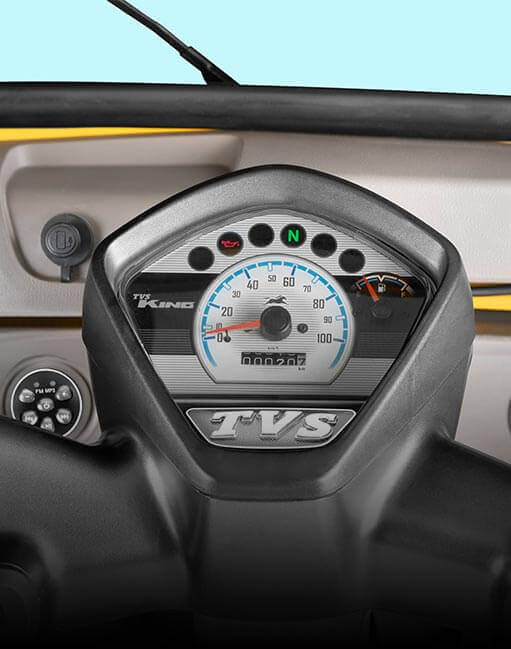

Stylish & Informative Speedo Cluster

Attractive Dashboard

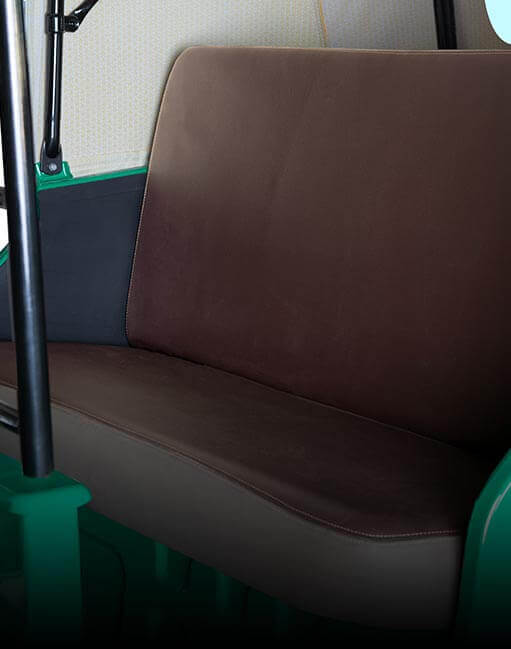

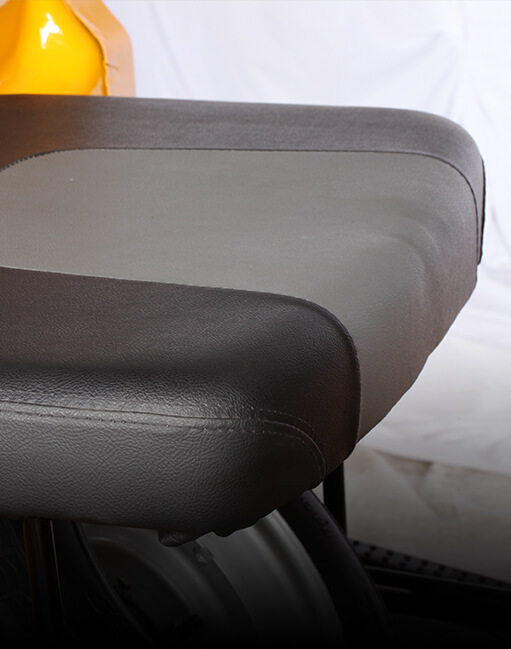

Dual Tone Seat

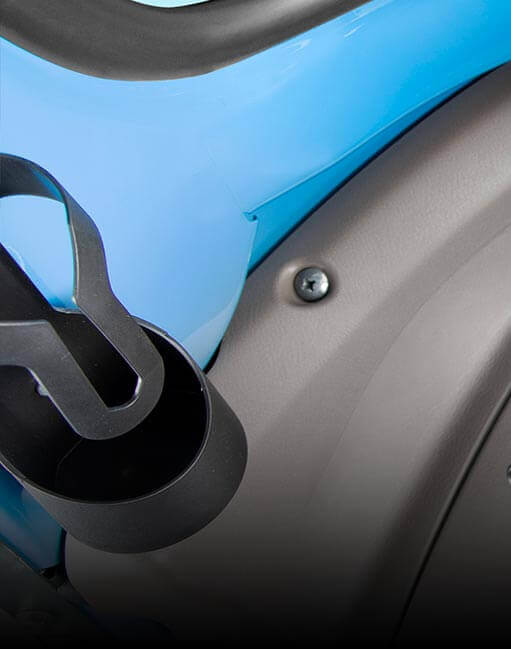

Water Bottle Holder

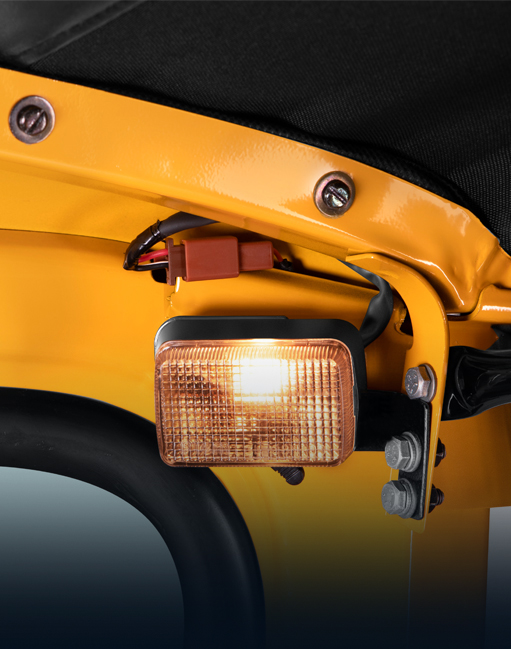

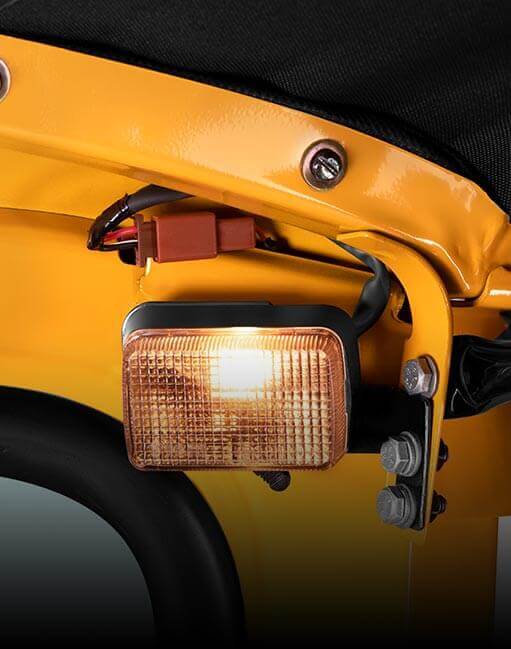

Driver Cabin Lamp

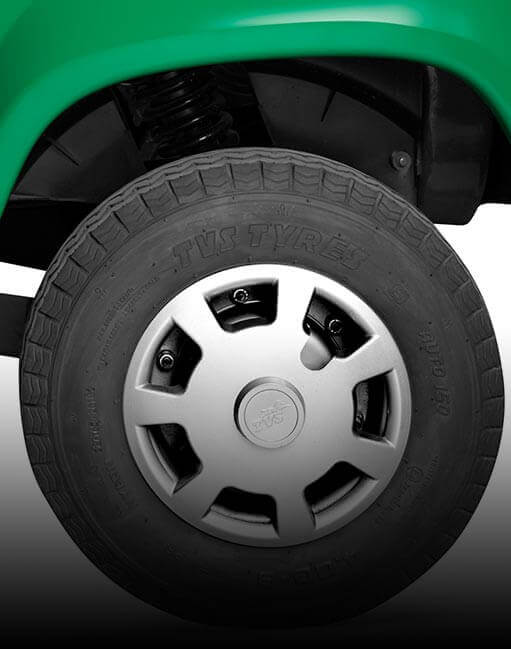

Wheel Cap

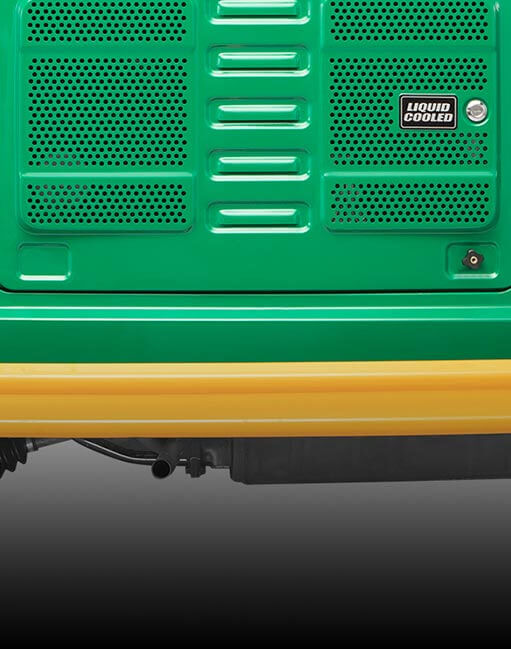

Strong Chassis Mounted Bumper

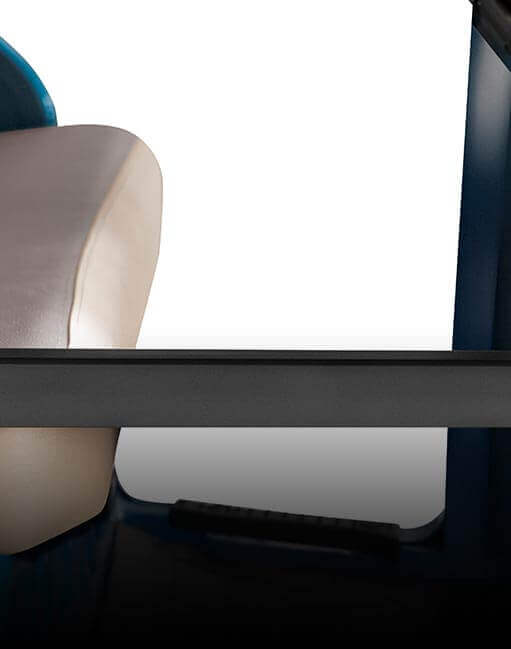

Right Side Entry Barrier

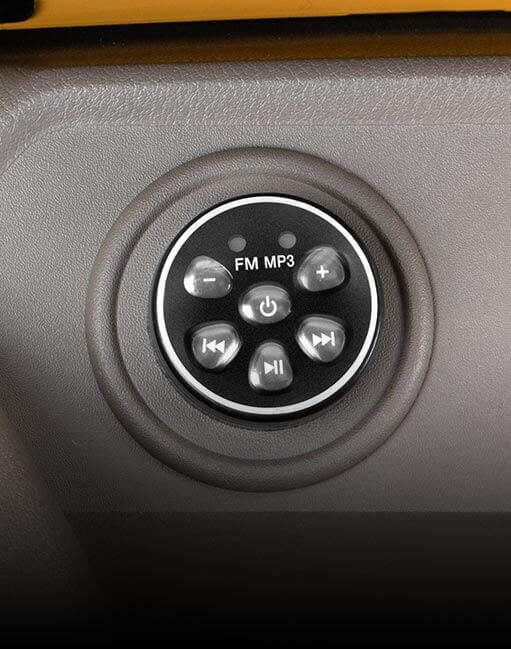

Smart Music System

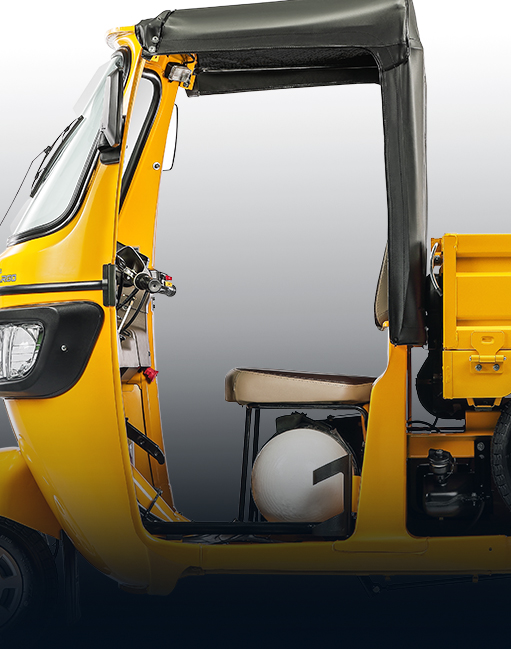

CNG or LPG - Petrol Bi-Fuel Option

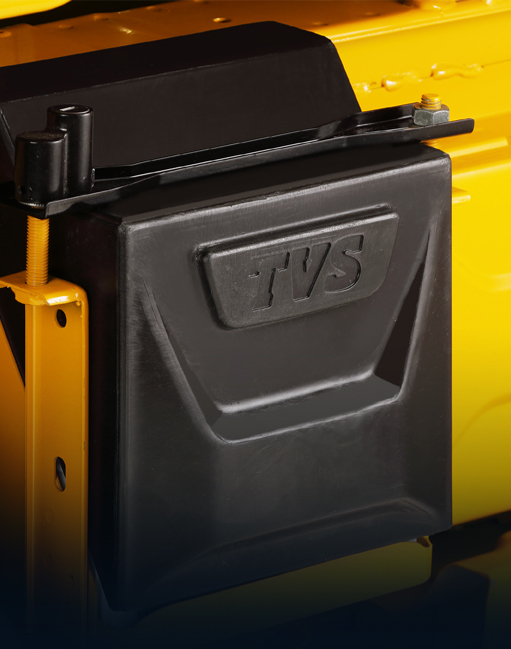

Covered Battery

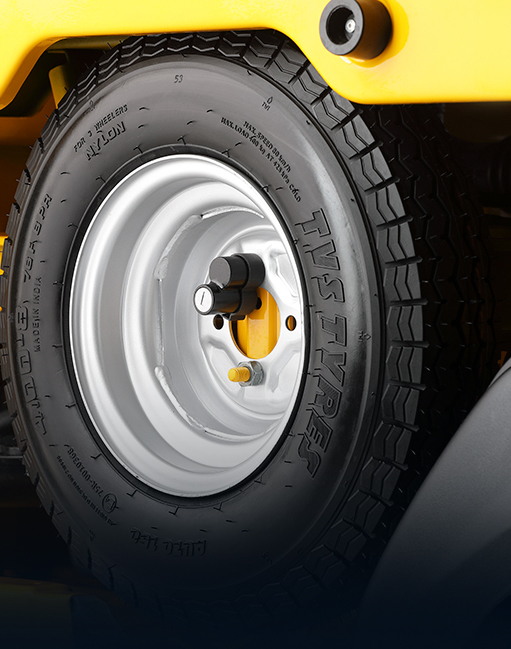

Covered Theft Proof Spare Wheel

Driver Cabin Lamp

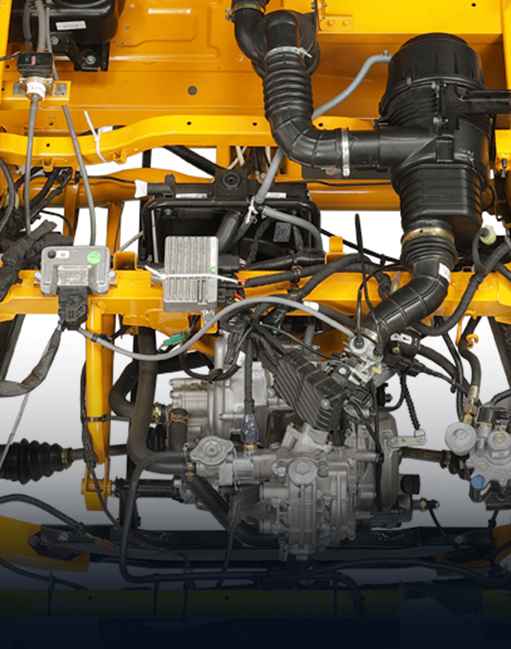

Durable Liquid Cooled Engine

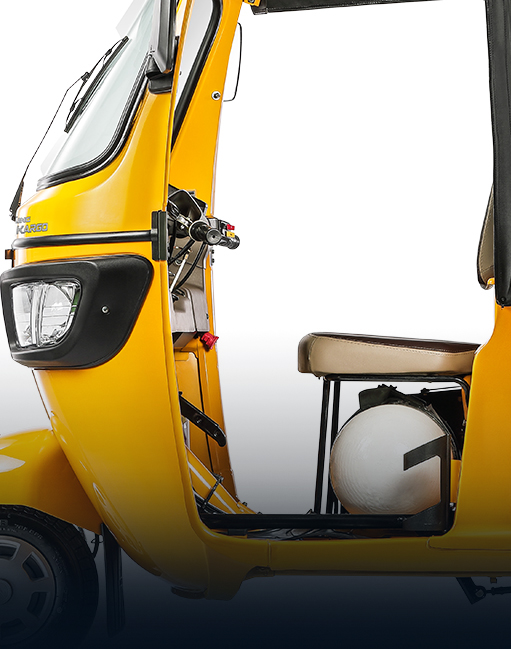

Hand Starter System

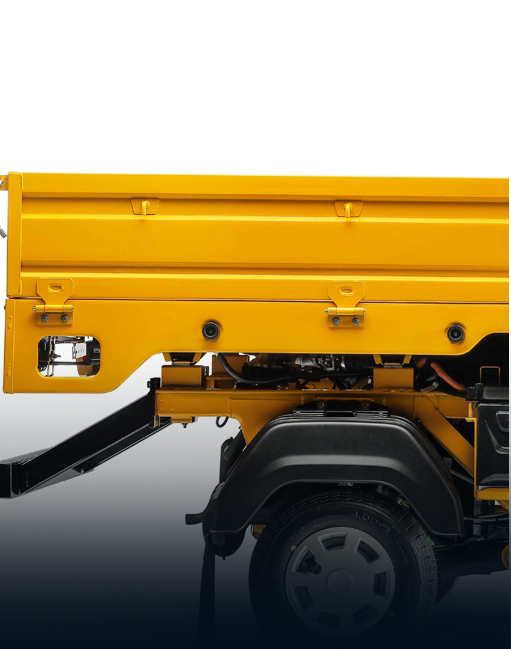

Integrated Load Body Footstep

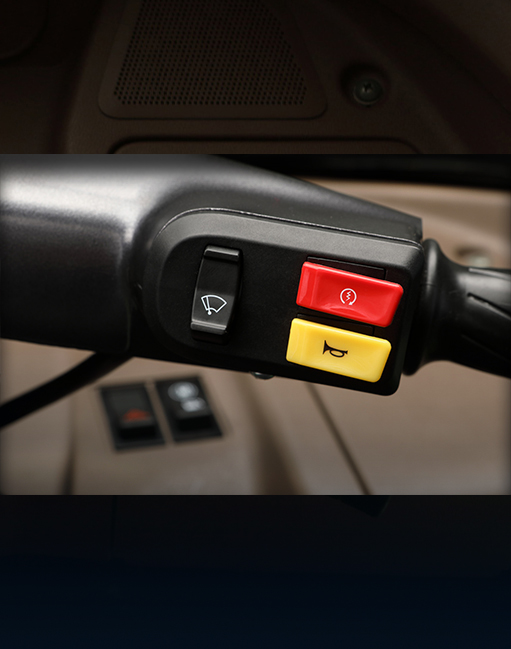

i-Touch Single Start Stop

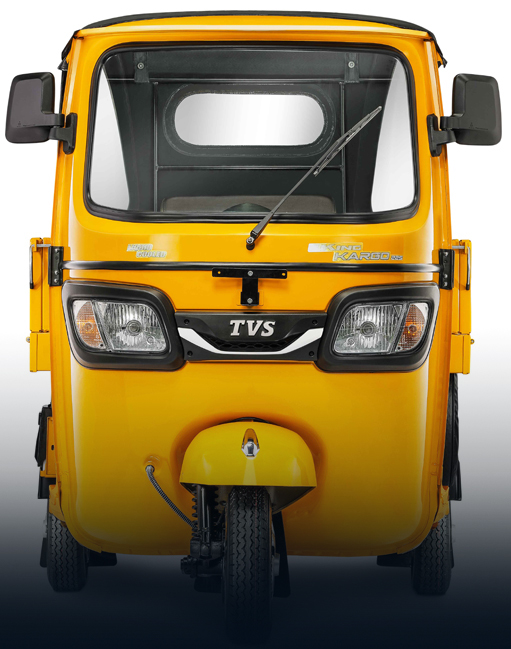

Large & Strong Rear View Mirror

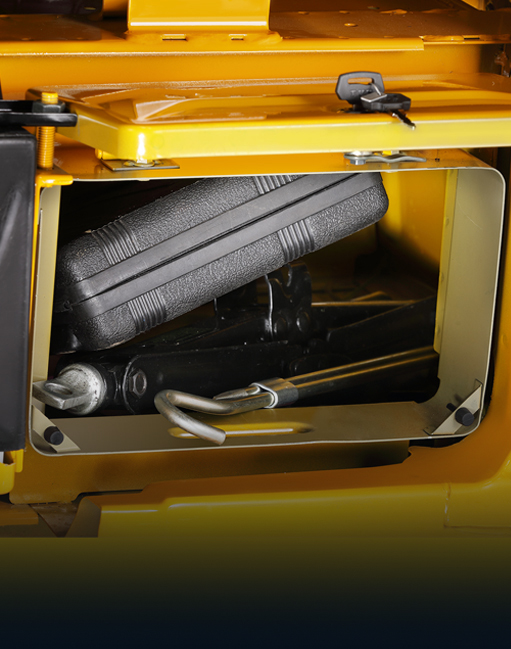

Large Lockable Storage - 50 Liters

Protected Tail Lamps

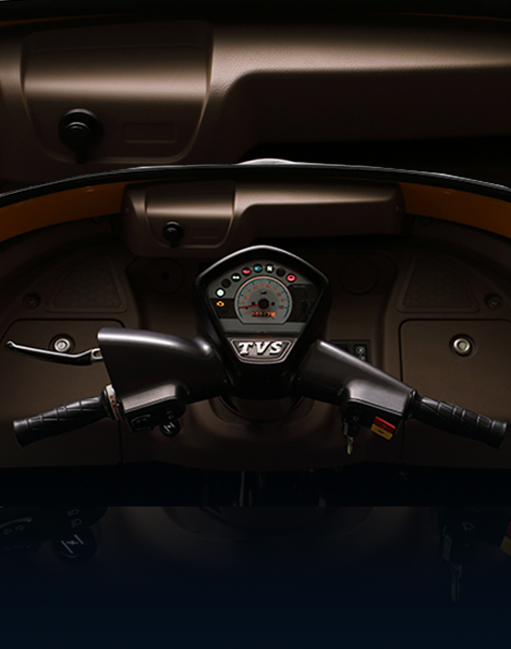

Smart Cluster Dashboard

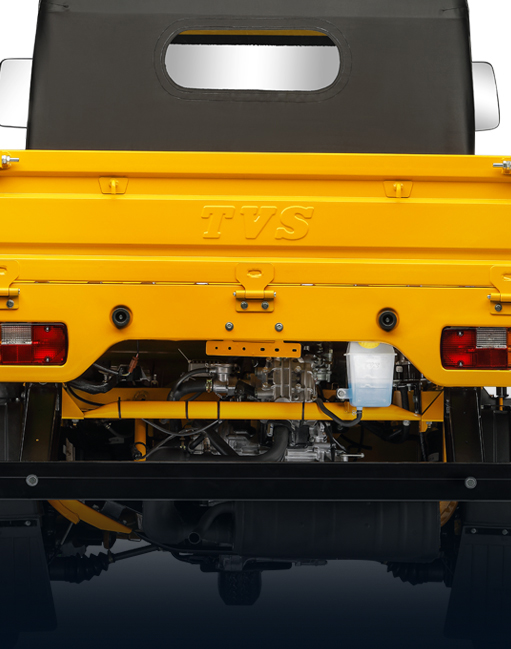

Strong Chassis Mounted Rear Bumper

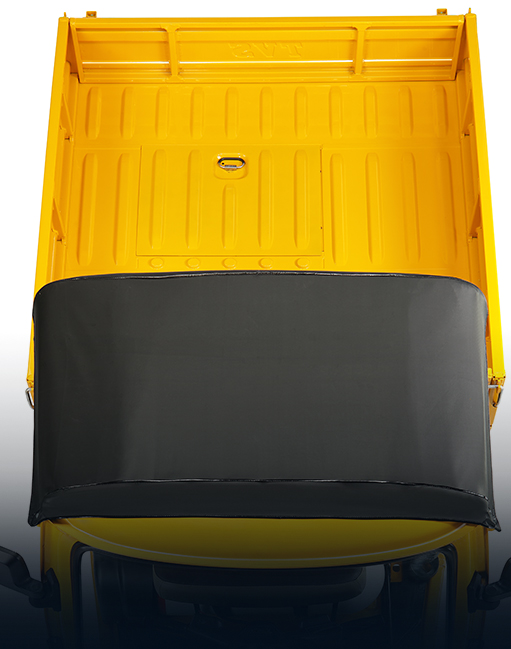

Three Side Openable Load Deck

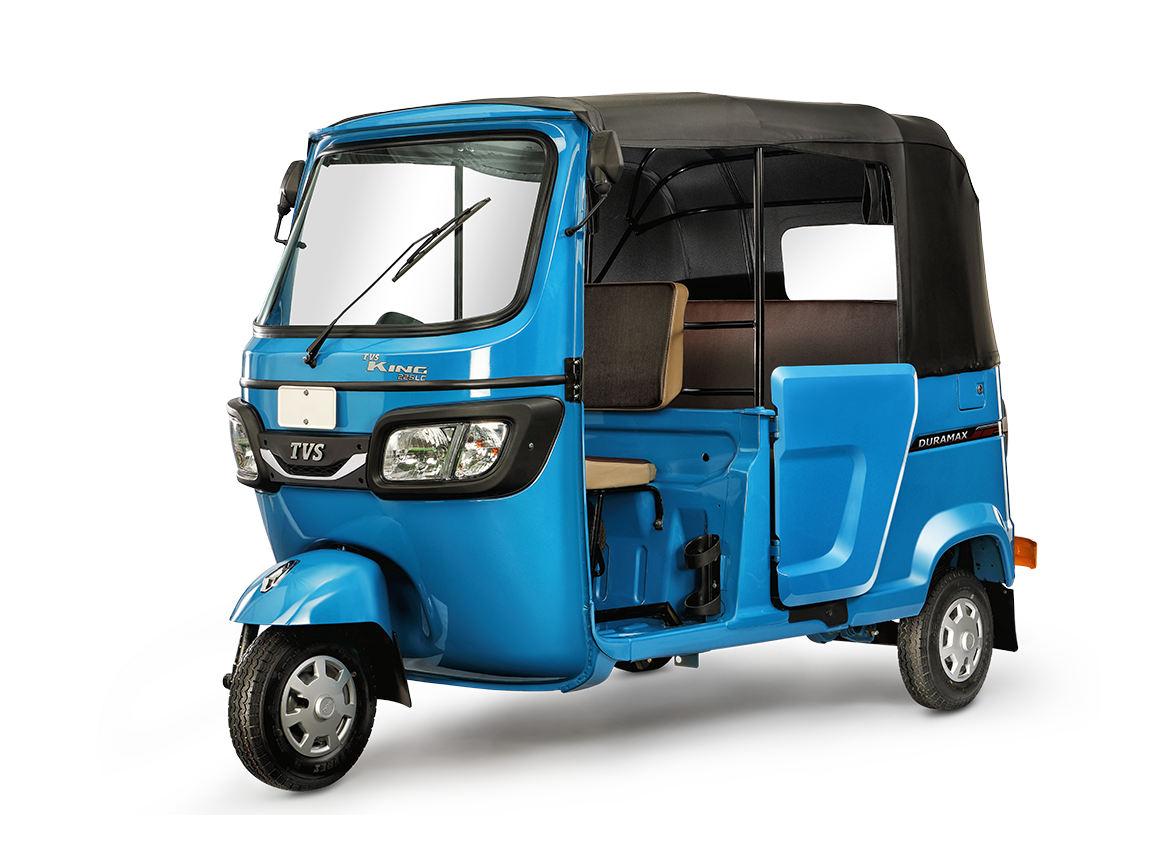

Optional Accessories For Deluxe and Duramax

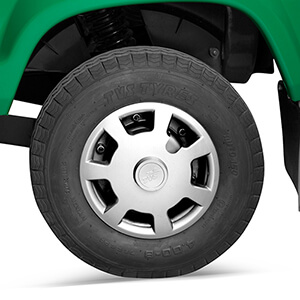

Stylish Wheel Cap

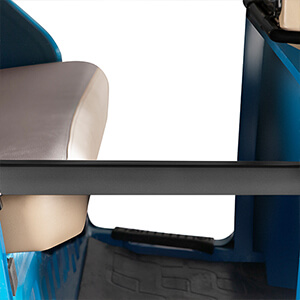

Right Side Entry Barrier

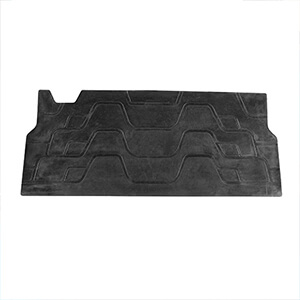

Designer Floor Mat

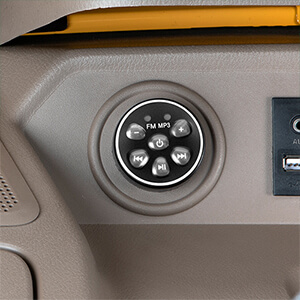

Smart Music System

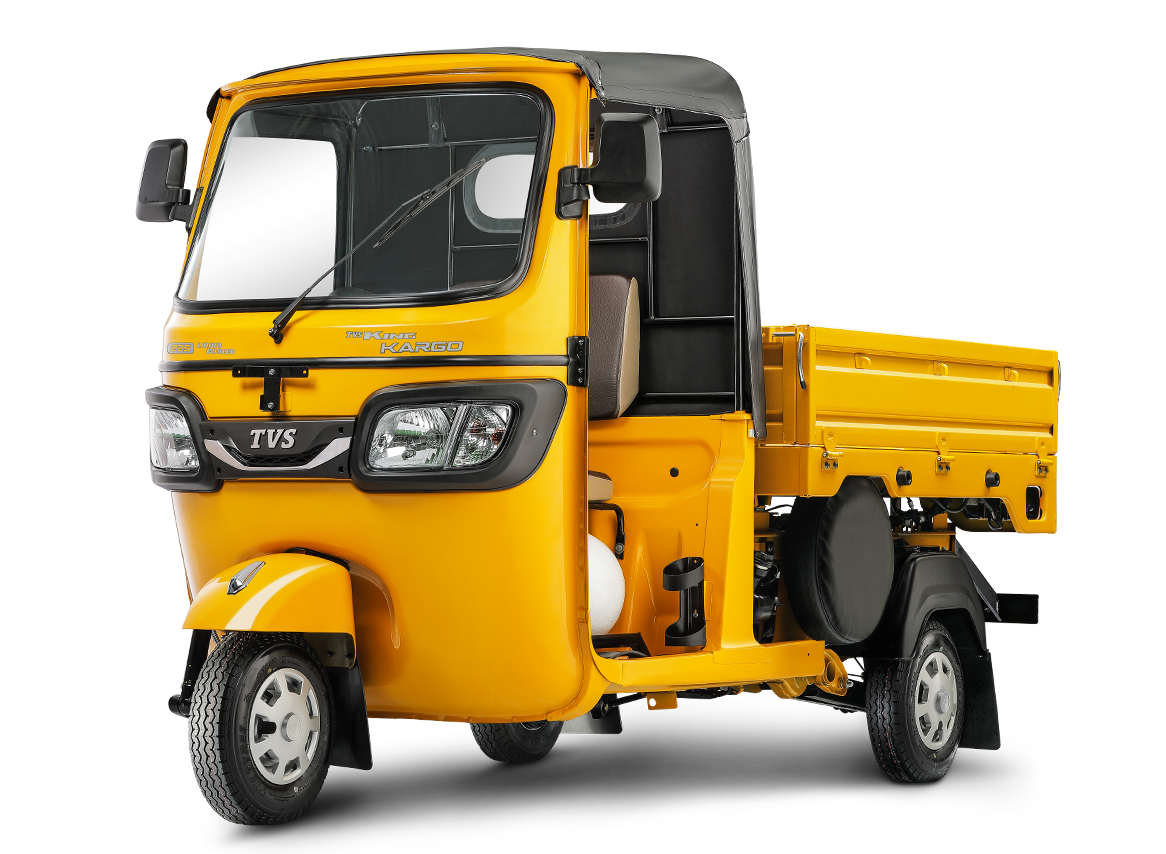

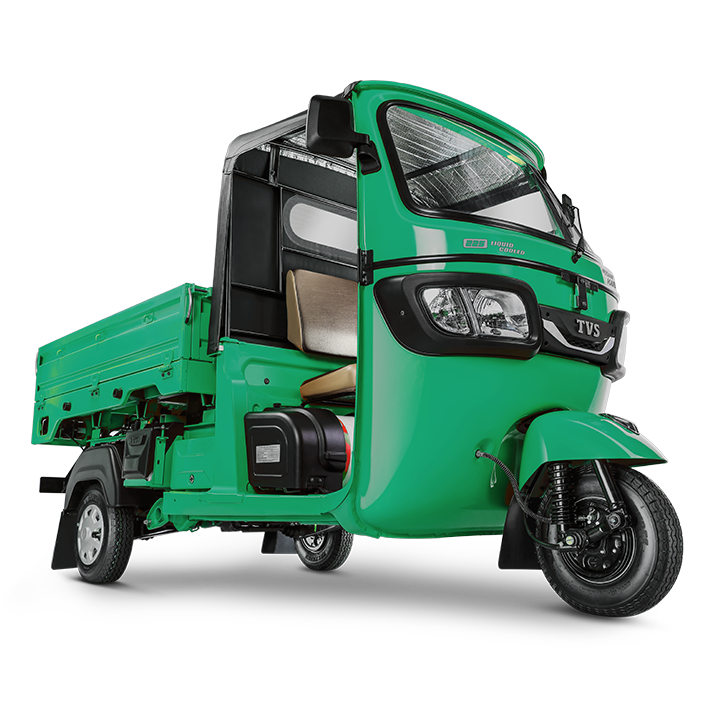

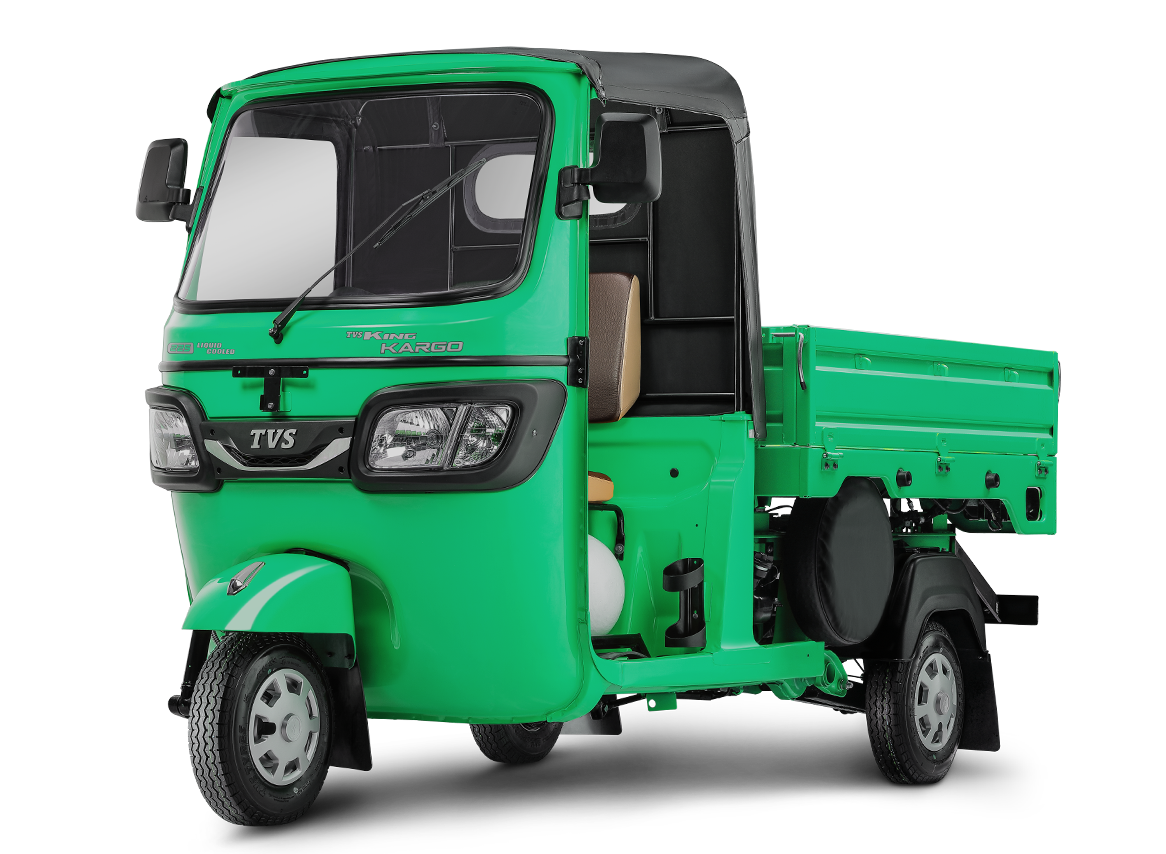

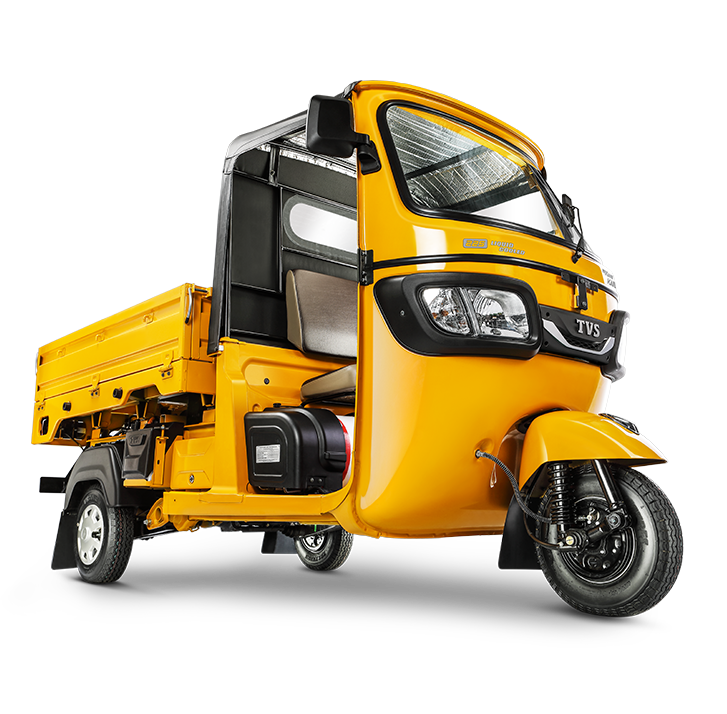

Optional Accessories for Kargo

Smart Music System

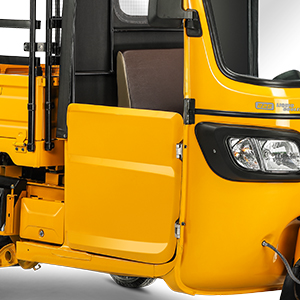

Driver Cabin Doors

High Deck Body Structure

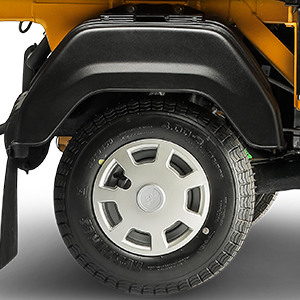

Wheel Cap

colours

Techspec

Engine

Type	4 Stroke, Single Cylinder Air Cooled, Si-Engine
Displacement	199.26 cc
Maximum Power	7.8 Kw @ 5500 rpm
Maximum Torque	15.5 Nm @ 3750 rpm
Max Speed	63 ± 2 km/h
Starting	Integrated Starter Generator & Hand Starter
Ignition System	Electronic Control Unit

Transmission

4 Forward and 1 Reverse speed, Constant Mesh, Fork & Cam Type Shift Mechanism

Chassis

Type	Semi Monocoque

Suspension

Front & Rear

Swing Arm with Hydraulic damper & Coil Spring

Wheels and Tyres

Rim size - Front & Rear	3.00D x 8"
Tyre size - Front & Rear	4.00 – 8,76F 6 PR 4.00 – 8,76E 6 PR

Electricals

Battery	12V, 32 Ah
Head Lamp	35/35W, DC
Tail Lamp, Stop Lamp	21 W, 5W
Turn Signal Lamp	10 W
Reverse Lamp	21 W
Warning Lamp	Malfunction Indication Lamp, Low Engine oil, Brake oil & Low fuel (Petrol), Engine temperature

Dimensions, Weights & Capacity

Wheelbase	1990 mm
Wheel Track	1150 mm
Overall Length	2647 mm
Overall Width	1329 mm
Overall Height	1740 mm
Kerb Weight with 90% fuel	356 kg
Ground Clearance	169 mm
Fuel Tank Capacity	8.5 ± 0.5 litre (Petrol)

Engine

Type	4 Stroke, Single Cylinder Air Cooled, Si-Engine
Displacement	199.26 cc
Maximum Power	7.1 Kw @ 5500 rpm
Maximum Torque	14.5 Nm @ 3500 rpm
Max Speed	61 ± 2 Km/h
Starting	Integrated Starter Generator & Hand Starter
Ignition System	Electronic Control Unit

Transmission

4 Forward and 1 Reverse speed, Constant Mesh, Fork & Cam Type Shift Mechanism

Chassis

Type	Semi Monocoque

Suspension

Front & Rear

Swing Arm with Hydraulic damper & Coil Spring

Wheels and Tyres

Rim size - Front & Rear	3.00D x 8"
Tyre size - Front & Rear	4.00 – 8,76F 6 PR 4.00 – 8,76E 6 PR

Electricals

Battery	12V, 32 Ah
Head Lamp	35/35W, DC
Tail Lamp, Stop Lamp	21 W, 5W
Turn Signal Lamp	10 W
Reverse Lamp	21 W
Warning Lamp	Low fuel (LPG)

Dimensions, Weights & Capacity

Wheelbase	1990 mm
Wheel Track	1150 mm
Overall Length	2647 mm
Overall Width	1329 mm
Overall Height	1740 mm
Kerb Weight with 90% fuel	386 Kg (LPG)
Ground Clearance	169 mm
Fuel Tank Capacity	20.6 (Water equivalent) 3 liters petrol

Engine

Type	4 Stroke, Single Cylinder Air Cooled, Si-Engine
Displacement	199.26 cc
Maximum Power	7.8 Kw @ 5500 rpm
Maximum Torque	15.5 Nm @ 3500 rpm
Max Speed	63 ± 2 Km/h
Starting	Integrated Starter Generator & Hand Starter
Ignition System	Electronic Control Unit

Transmission

4 Forward and 1 Reverse speed, Constant Mesh, Fork & Cam Type Shift Mechanism

Chassis

Type	Semi Monocoque

Suspension

Front & Rear

Swing Arm with Hydraulic damper & Coil Spring

Wheels and Tyres

Rim size - Front & Rear	3.00D x 8"
Tyre size - Front & Rear	4.00 – 8,76F 6 PR 4.00 – 8,76E 6 PR

Electricals

Battery	12V, 32 Ah
Head Lamp	35/35W, DC
Tail Lamp, Stop Lamp	21 W, 5W
Turn Signal Lamp	10 W
Reverse Lamp	21 W
Warning Lamp	Low fuel (Petrol)

Dimensions, Weights & Capacity

Wheelbase	1990 mm
Wheel Track	1150 mm
Overall Length	2647 mm
Overall Width	1329 mm
Overall Height	1740 mm
Kerb Weight with 90% fuel	356 Kg(Petrol)
Ground Clearance	169 mm
Fuel Tank Capacity	8.5 ± 0.5

Engine

Type	4 Stroke, Single Cylinder Air Cooled, Si-Engine
Displacement	225.8 cc
Maximum Power	6.7 Kw @ 5500rpm
Maximum Torque	15.5 Nm @ 3000 rpm
Max Speed	60 ± 2 Km/h
Starting	Integrated Starter Generator & Hand Starter
Ignition System	Electronic Control Unit

Transmission

4 Forward and 1 Reverse speed, Constant Mesh, Fork & Cam Type Shift Mechanism

Chassis

Type	Semi Monocoque

Suspension

Front & Rear

Swing Arm with Hydraulic damper & Coil Spring

Wheels and Tyres

Rim size - Front & Rear	3.00D x 8"
Tyre size - Front & Rear	4.00 – 8,76F 6 PR 4.00 – 8,76E 6 PR

Electricals

Battery	12V, 32 Ah
Head Lamp	35/35W, DC
Tail Lamp, Stop Lamp	21 W, 5W
Turn Signal Lamp	10 W
Reverse Lamp	21 W
Warning Lamp	OK

Dimensions, Weights & Capacity

Wheelbase	1990 mm
Wheel Track	1150 mm
Overall Length	2647 mm
Overall Width	1329 mm
Overall Height	1740 mm
Kerb Weight with 90% fuel	419 Kg(CNG)
Ground Clearance	169 mm
Fuel Tank Capacity	28/33 liter (Water equivalent) 3 Liter petrol

Engine

Type	4 Stroke, Single Cylinder Liquid Cooled, Si-Engine
Displacement	225.8 cc
Maximum Power	7.3 Kw @ 5500 rpm
Maximum Torque	17.5 Nm @ 3000 rpm
Max Speed	63 ± 2 Km/h
Starting	Integrated Starter Generator & Hand Starter
Ignition System	Electronic Control Unit

Transmission

4 Forward and 1 Reverse speed, Constant Mesh, Fork & Cam Type Shift Mechanism

Chassis

Type	Semi Monocoque

Suspension

Front & Rear

Swing Arm with Hydraulic damper & Coil Spring

Wheels and Tyres

Rim size - Front & Rear	3.00D x 8"
Tyre size - Front & Rear	4.00 – 8,76F 6 PR, 4.00 – 8,76E 6 PR

Electricals

Battery	12V, 32 Ah
Head Lamp	35/35W, DC
Tail Lamp, Stop Lamp	21 W, 5W
Turn Signal Lamp	10 W
Reverse Lamp	21 W
Warning Lamp	Low fuel (LPG)

Dimensions, Weights & Capacity

Wheelbase	1990 mm
Wheel Track	1150 mm
Overall Length	2647 mm
Overall Width	1329 mm
Overall Height	1740 mm
Kerb Weight with 90% fuel	397 Kg(LPG)
Ground Clearance	169 mm
Fuel Tank Capacity	20.6 (Water equivalent) 3 liters petrol

Engine

Type	4 Stroke, Single Cylinder Air Cooled, Si-Engine
Displacement	225.8 cc
Maximum Power	7.8 Kw @ 4750 rpm
Maximum Torque	18.5 Nm @ 3000 rpm
Max Speed	65 km/h
Starting	Integrated Starter Generator & Hand Starter
Ignition System	Electronic Control Unit

Transmission

4 Forward and 1 Reverse speed, Constant Mesh, Fork & Cam Type Shift Mechanism

Chassis

Type	Semi Monocoque

Suspension

Front & Rear

Swing Arm with Hydraulic damper & Coil Spring

Wheels and Tyres

Rim size - Front & Rear	3.00D x 8"
Tyre size - Front & Rear	4.00 – 8,76F 6 PR 4.00 – 8,76E 6 PR

Electricals

Battery	12V, 32 Ah
Head Lamp	35/35W, DC
Tail Lamp, Stop Lamp	21 W, 5W
Turn Signal Lamp	10 W
Reverse Lamp	21 W
Warning Lamp	Low fuel (Petrol)

Dimensions, Weights & Capacity

Wheelbase	1990 mm
Wheel Track	1150 mm
Overall Length	2647 mm
Overall Width	1329 mm
Overall Height	1740 mm
Kerb Weight with 90% fuel	366 Kg(Petrol)
Ground Clearance	169 mm
Fuel Tank Capacity	8.5 ± 0.5

Engine

Type	4 Stroke, Single Cylinder Liquid Cooled, EFi - Si-Engine
Displacement	225.8 cc
Maximum Power	6.91 Kw @ 5000rpm
Maximum Torque	15.5 Nm @ 3000 rpm
Max Speed (Unladen)	60 ± 2 Km/h
Starting	Integrated Starter Generator & Hand Starter
Ignition System	Electronic Control Unit – EFi Spark Ignition

Transmission

Gears

4 Forward and 1 Reverse speed, Constant Mesh, Fork & Cam Type Shift Mechanism

Chassis

Type	Semi Monocoque
Cargo box dimensions (LXWXH)	1500mm x 1300mm x 280mm

Suspension

Front & Rear

Swing Arm with Hydraulic damper & Coil Spring

Wheels and Tyres

Rim size - Front & Rear	3.00D x 8"
Tyre size - Front & Rear	4.00 – 8,76F 6 PR 4.00 – 8,76E 6 PR

Electricals

Battery	12V, 32 Ah
Head Lamp	35/35W, DC
Tail Lamp, Stop Lamp	21 W, 5W
Turn Signal Lamp	10 W
Reverse Lamp	21 W
Warning Lamp	MIL, Battery Charging, Low Engine Oil, Brake Oil & Fuel Warning (CNG)

Dimensions, Weights & Capacity

Wheelbase	1990 mm
Wheel Track	1150 mm
Overall Length	3010±20 mm
Overall Width	1350±10 mm
Overall Height	1720±10 mm
Kerb Weight (with 90% fuel)	464 Kg
Gross Vehicle Weight	864 Kg
Ground Clearance (GVW)	169 mm
Fuel Tank Capacity - CNG	28 / 33 Ltr. (Water equivalent) 3 Ltr. petrol

Engine

Type	4 Stroke, Single Cylinder Liquid Cooled, EFi - Si-Engine
Displacement	225.8 cc
Maximum Power	7.8 Kw @ 5000 rpm
Maximum Torque	17.5 Nm @ 3000 rpm
Max Speed (Unladen)	63 km/h
Starting	Integrated Starter Generator & Hand Starter
Ignition System	Electronic Control Unit – EFi Spark Ignition

Transmission

Gears

4 Forward and 1 Reverse speed, Constant Mesh, Fork & Cam Type Shift Mechanism

Chassis

Type	Semi Monocoque
Cargo box dimensions (LXWXH)	1500mm x 1300mm x 280mm

Suspension

Front & Rear

Swing Arm with Hydraulic damper & Coil Spring

Wheels and Tyres

Rim size - Front & Rear	3.00D x 8"
Tyre size - Front & Rear	4.00 – 8,76F 6 PR 4.00 – 8,76E 6 PR

Electricals

Battery	12V, 32 Ah
Head Lamp	35/35W, DC
Tail Lamp, Stop Lamp	21 W, 5W
Turn Signal Lamp	10 W
Reverse Lamp	21 W
Warning Lamp	MIL, Battery Charging, Low Engine Oil, Brake Oil & Fuel Warning (LPG)

Dimensions, Weights & Capacity

Wheelbase	1990 mm
Wheel Track	1150 mm
Overall Length	3010±20 mm
Overall Width	1350±10 mm
Overall Height	1720±10 mm
Kerb Weight (with 90% fuel)	442 Kg
Gross Vehicle Weight	842 Kg
Ground Clearance (GVW)	169 mm
Fuel Tank Capacity - LPG	20.6 Ltr. (Water equivalent) 3 Ltr. petrol

Engine

Type	4 Stroke, Single Cylinder Liquid Cooled, EFi - Si-Engine
Displacement	225.8 cc
Maximum Power	6.91 Kw @ 5000 rpm
Maximum Torque	15.5 Nm @ 3000 rpm
Max Speed (Unladen)	60 ± 2 Km/h
Starting	Integrated Starter Generator & Hand Starter
Ignition System	Electronic Control Unit – EFi Spark Ignition

Transmission

Gears

4 Forward and 1 Reverse speed, Constant Mesh, Fork & Cam Type Shift Mechanism

Chassis

Type	Semi Monocoque
Cargo box dimensions (LXW)	1500mm x 1300mm (Only platform)

Suspension

Front & Rear

Swing Arm with Hydraulic damper & Coil Spring

Wheels and Tyres

Rim size - Front & Rear	3.00D x 8"
Tyre size - Front & Rear	4.00 – 8,76F 6 PR 4.00 – 8,76E 6 PR

Electricals

Battery	12V, 32 Ah
Head Lamp	35/35W, DC
Tail Lamp, Stop Lamp	21 W, 5W
Turn Signal Lamp	10 W
Reverse Lamp	21 W
Warning Lamp	MIL, Battery Charging, Low Engine Oil, Brake Oil & Fuel Warning (CNG)

Dimensions, Weights & Capacity

Wheelbase	1990 mm
Wheel Track	1150 mm
Overall Length	3010±20 mm
Overall Width	1350±10 mm
Overall Height	1720±10 mm
Kerb Weight (with 90% fuel)	438 Kg
Gross Vehicle Weight	864 Kg
Ground Clearance (GVW)	169 mm
Fuel Tank Capacity - CNG	28 / 33 Ltr. (Water equivalent) 3 Ltr. petrol

Engine

Type	4 Stroke, Single Cylinder Liquid Cooled, EFi - Si-Engine
Displacement	225.8 cc
Maximum Power	7.8 Kw @ 5000 rpm
Maximum Torque	17.5 Nm @ 3000 rpm
Max Speed (Unladen)	63 km/h
Starting	Integrated Starter Generator & Hand Starter
Ignition System	Electronic Control Unit – EFi Spark Ignition

Transmission

Gears

4 Forward and 1 Reverse speed, Constant Mesh, Fork & Cam Type Shift Mechanism

Chassis

Type	Semi Monocoque
Cargo box dimensions (LXWXH)	1500mm x 1300mm (Only Platform)

Suspension

Front & Rear

Swing Arm with Hydraulic damper & Coil Spring

Wheels and Tyres

Rim size - Front & Rear	3.00D x 8"
Tyre size - Front & Rear	4.00 – 8,76F 6 PR 4.00 – 8,76E 6 PR

Electricals

Battery	12V, 32 Ah
Head Lamp	35/35W, DC
Tail Lamp, Stop Lamp	21 W, 5W
Turn Signal Lamp	10 W
Reverse Lamp	21 W
Warning Lamp	MIL, Battery Charging, Low Engine Oil, Brake Oil & Fuel Warning (LPG)

Dimensions, Weights & Capacity

Wheelbase	1990 mm
Wheel Track	1150 mm
Overall Length	3010±20 mm
Overall Width	1350±10 mm
Overall Height	1720±10 mm
Kerb Weight (with 90% fuel)	416 Kg
Gross Vehicle Weight	842 Kg
Ground Clearance (GVW)	169 mm
Fuel Tank Capacity - LPG	20.6 Ltr. (Water equivalent) 3 Ltr. petrol

Gradeability

12°

Maintenance schedule

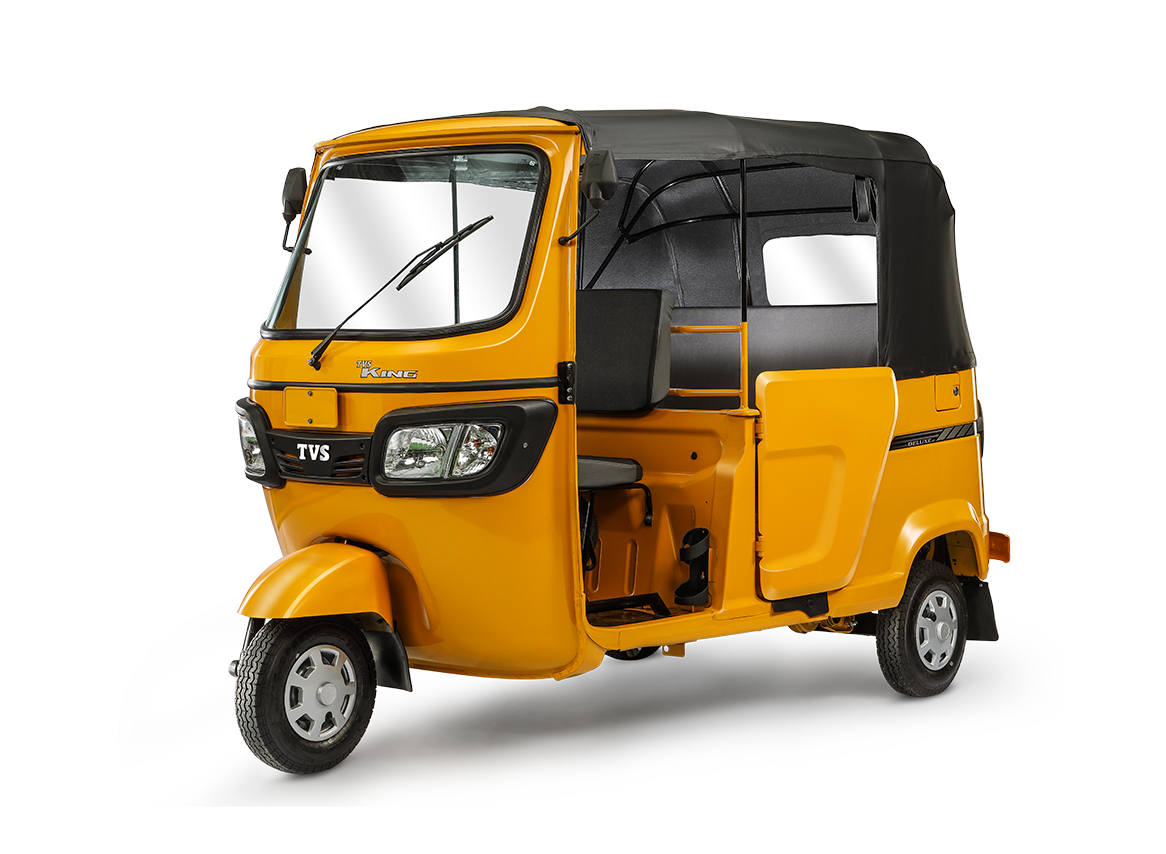

Deluxe

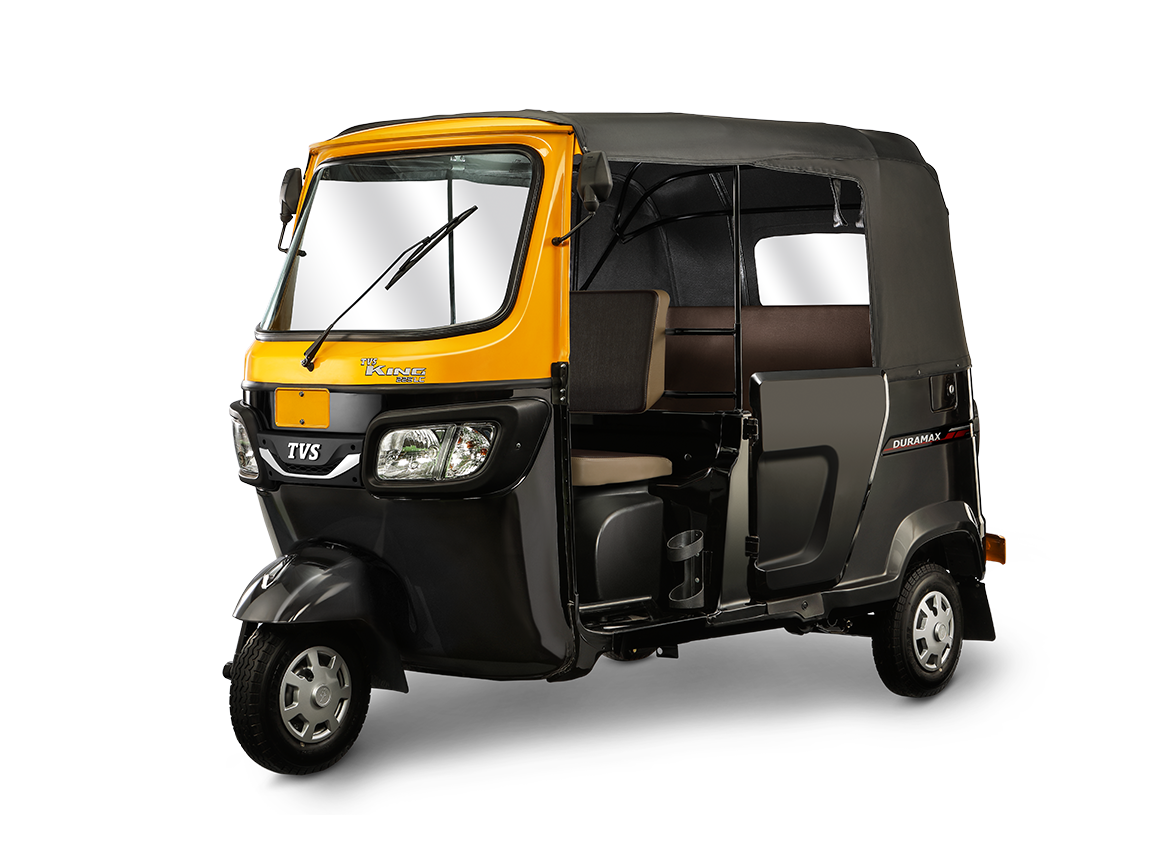

Duramax

Kargo

Warranty policy

Deluxe

Duramax

Kargo

Email: enquiry3W@tvsmotor.com

Contact: 04344 276780, Extn, 1904 & 1905

To know more, join us on the TVS King social media pages

TVS Motor Company uses cookies - including from third parties - to provide visitors with the best possible experience when using the website. Please note that by continuing to use the website, you accept the use of cookies. To know more about this, please click here

I Understand
