engine & Performance
| Type |

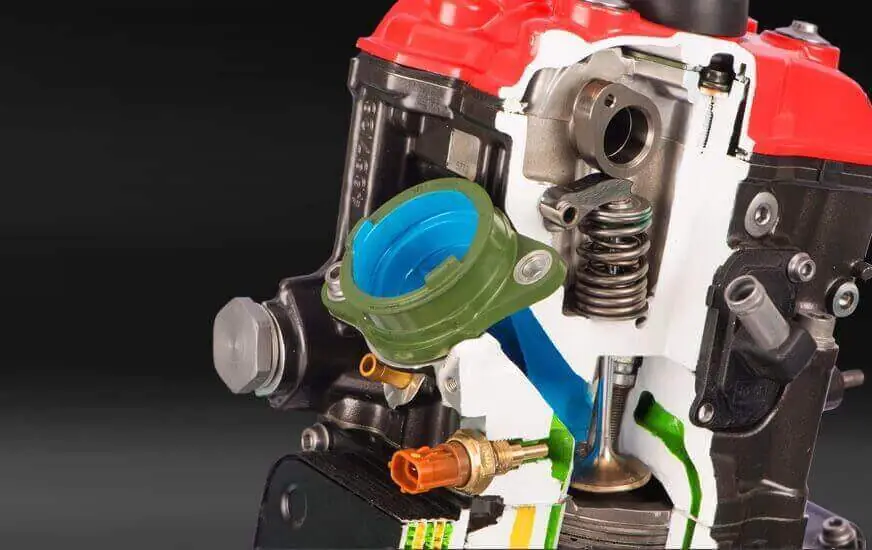

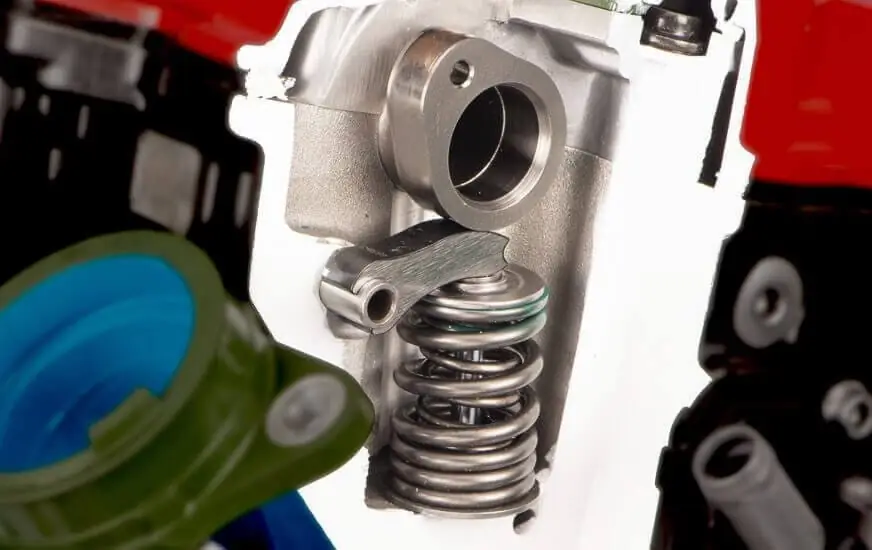

SI, 4 stroke, 4 valve, Single cylinder, Liquid cooled, Reverse inclined
|
| Engine capacity |
312.2cc |
| Maximum power |
Sport and Track mode - 28 kW@9800 engine rpm (38 PS@9800 engine rpm)
|
|
Urban and rain mode - 22 kW@7600 engine rpm (30 PS@7600 engine rpm)
|
| Maximum torque |
Sport and Track mode - 29 Nm@7900 engine rpm |
|
Urban and rain mode - 26.5 Nm@6700 engine rpm
|
| Bore |
80 mm |
| Stroke |
62.1 mm |
| Fuel injection |
Bosch - Closed loop RT-FI |
| Throttle control |
Electronic throttle control with multiple ride modes |
| Bore to stroke ratio |
1.29 |
| Starting |
Electric start |
| Idle speed |
1700 ± 200rpm |
| Ignition |
Dynamically controlled integrated high energy ignition system
|
| Power to weight Ratio |
0.144 kW/kg |
| Compression ratio |
12.17 :1 |
| Air filter |
Dry Paper filter |

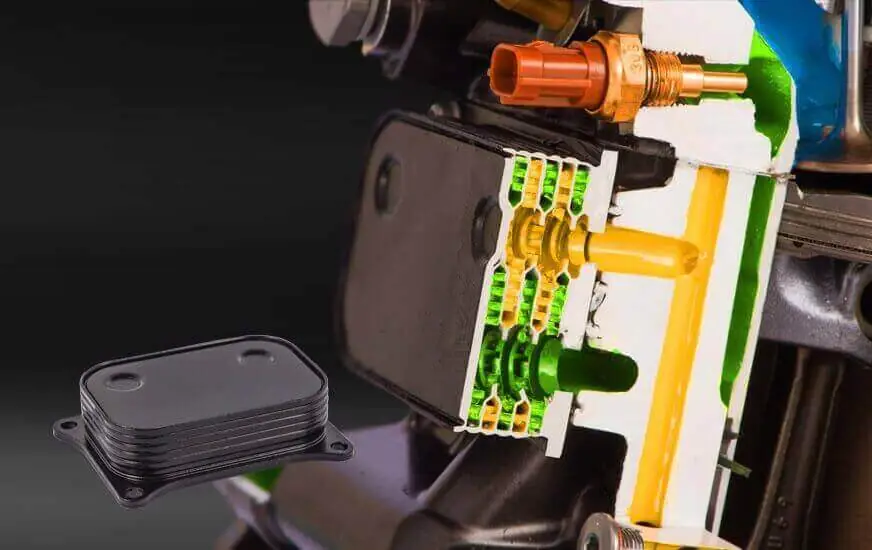

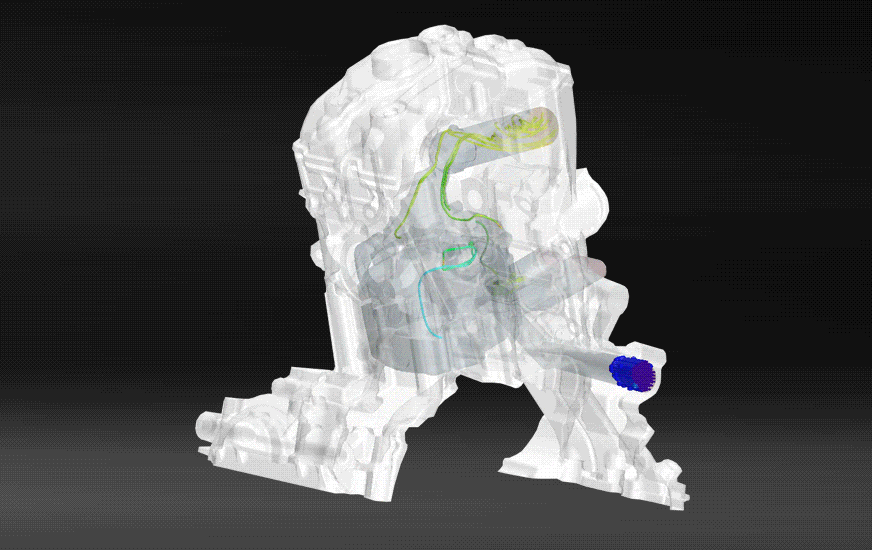

| Cooling system |
Liquid cooled |
| Muffler |
Single pipe and single body design |
| Clutch |
Wet multi plate - 7 plate design, RT slipper clutch |
| Gear box |
6 speed |
| Max speed |
164 km/h - Sport and Track mode |
| 0-60km/h (time in sec) |
2.82 s
|
| 0-100km/h (time in sec) |
6.74 s |
chassis, suspension & electrical
| Frame |

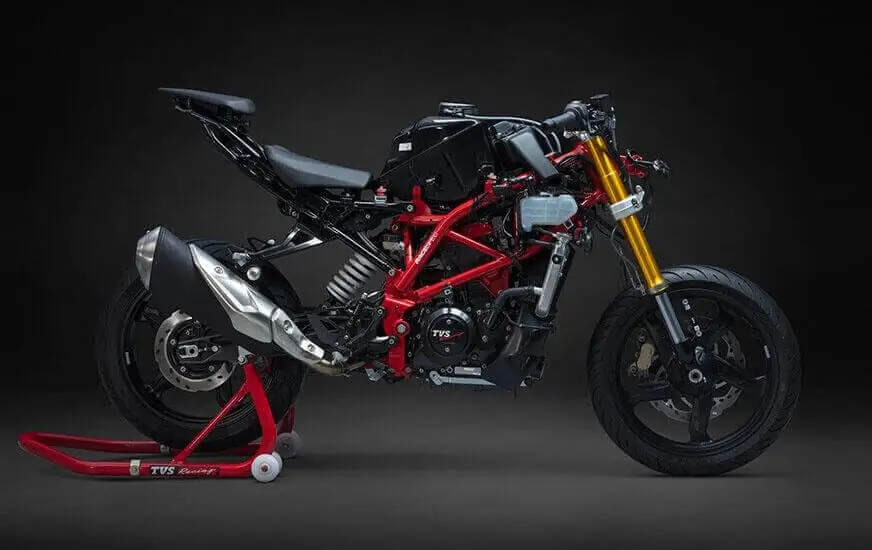

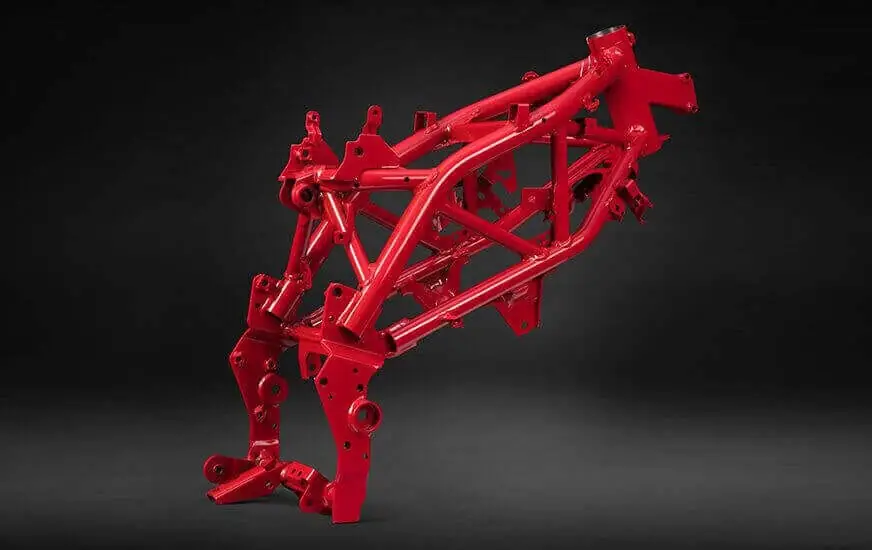

Trellis frame, split chassis |
| Front Suspension |
Inverted cartridge telescopic Fork |
| Rear Suspension |
Two arm Aluminium die-cast swingarm |
|

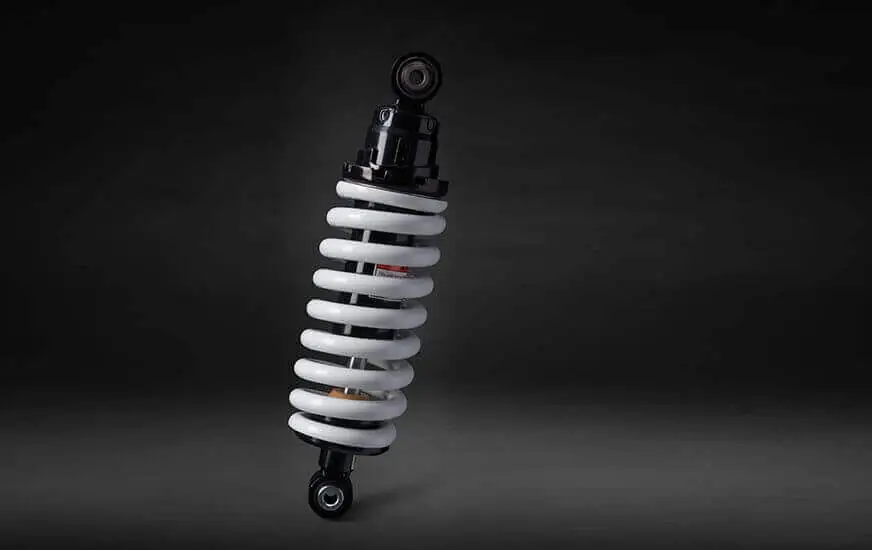

Mono tube floating piston gas assisted shock absorber |
| Battery |
12V, 8Ah |
| Headlamp |
Bi-LED projector, 30W@13 V |
| Tail Lamp |
LED 4 W |

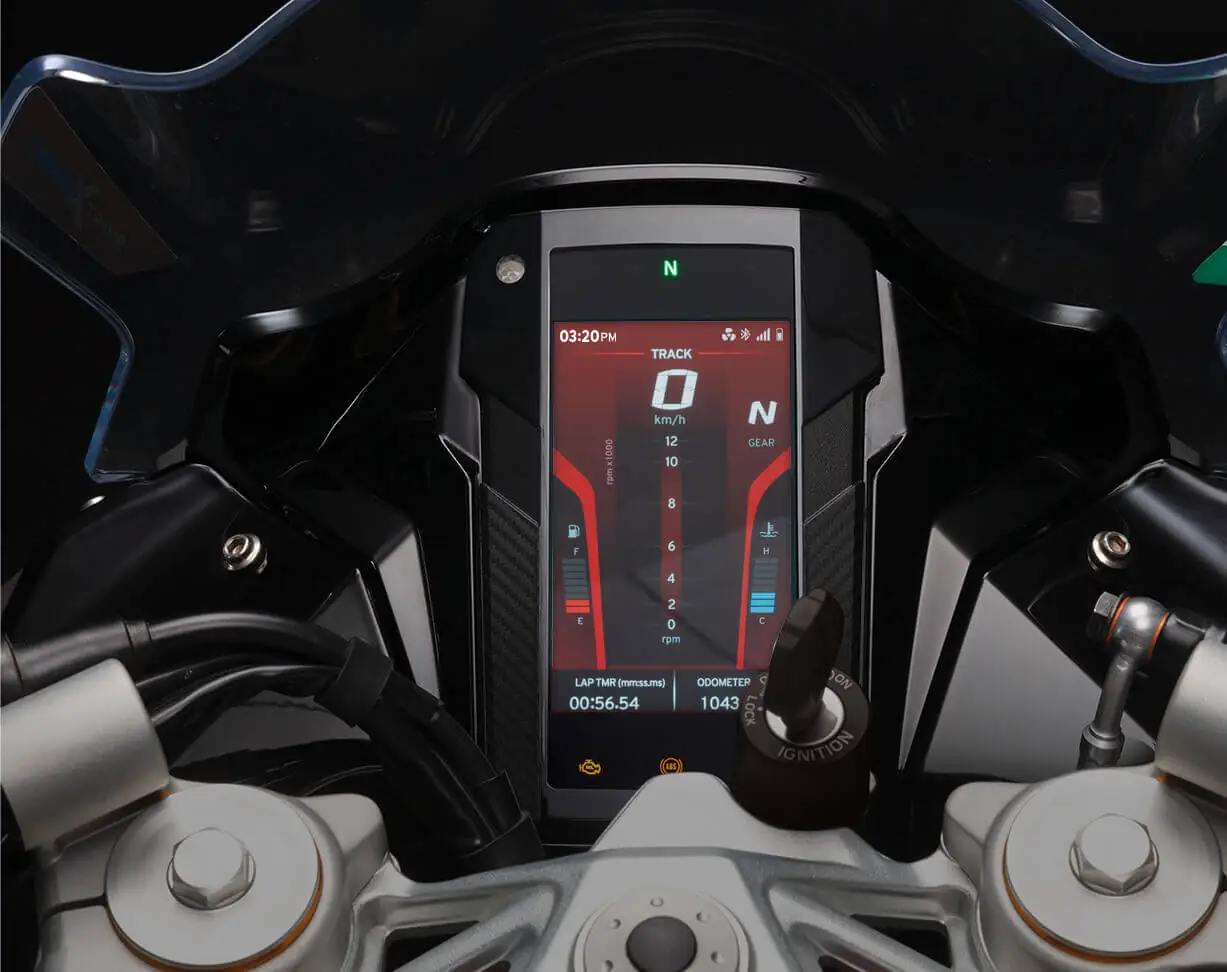

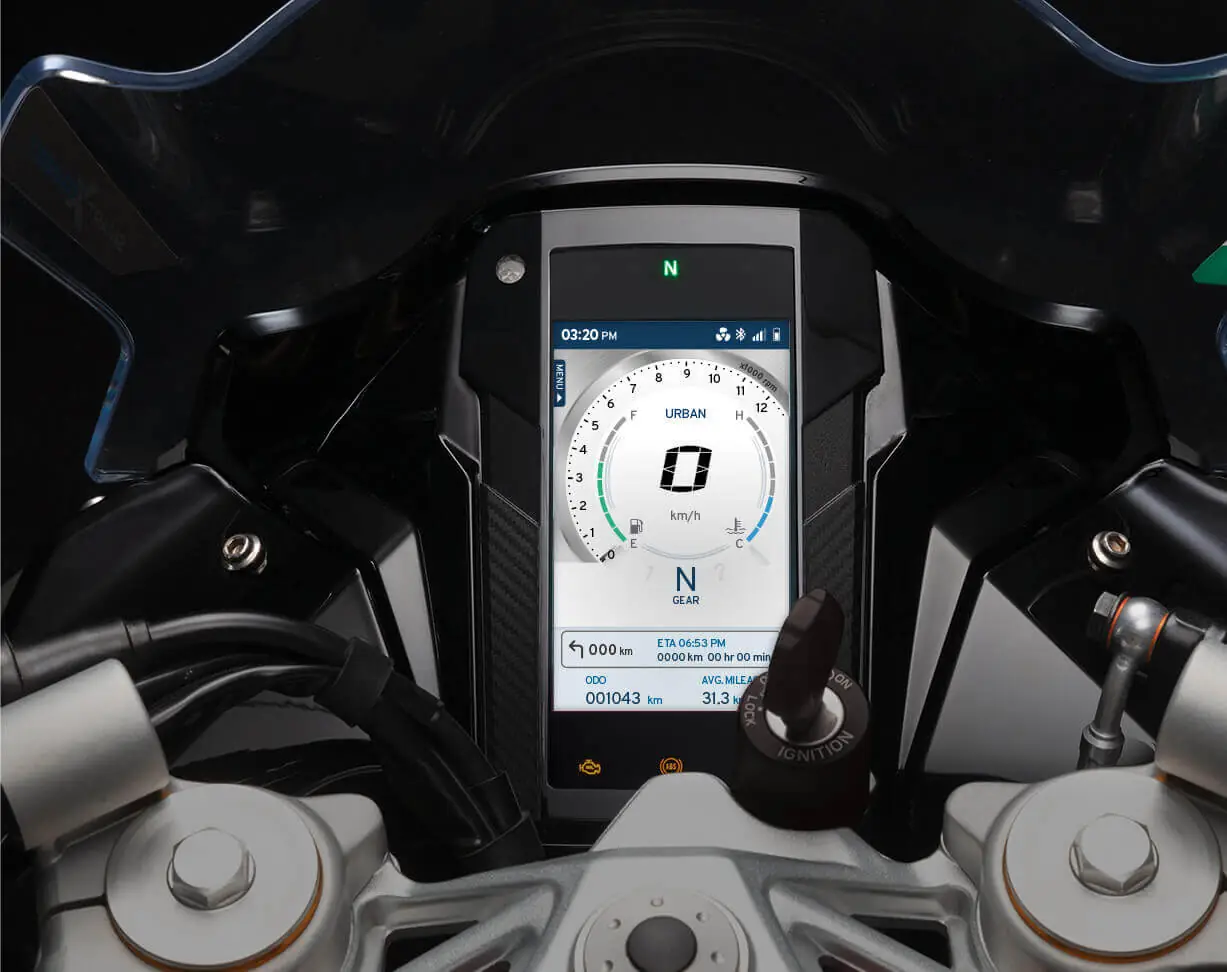

| Instrument cluster |

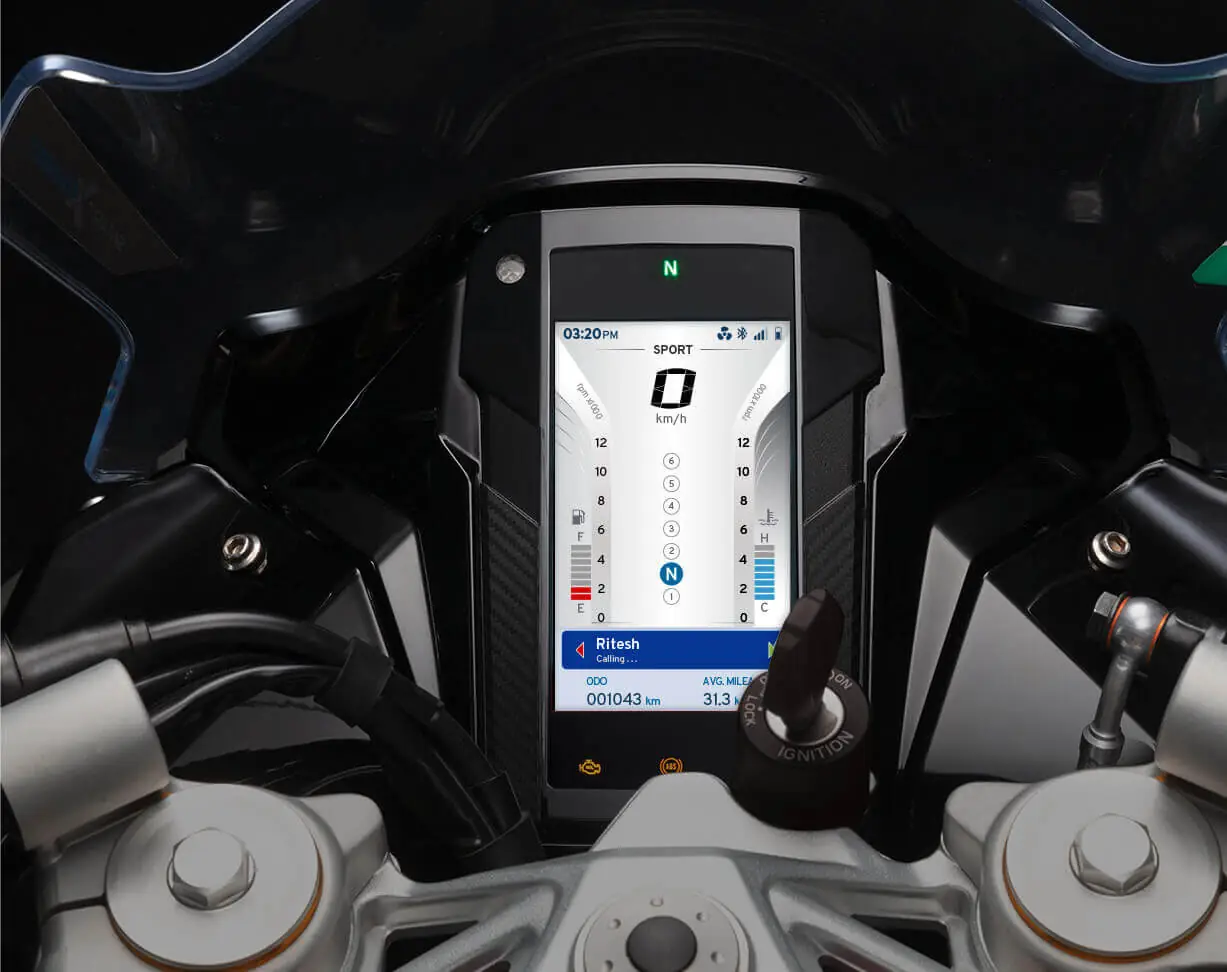

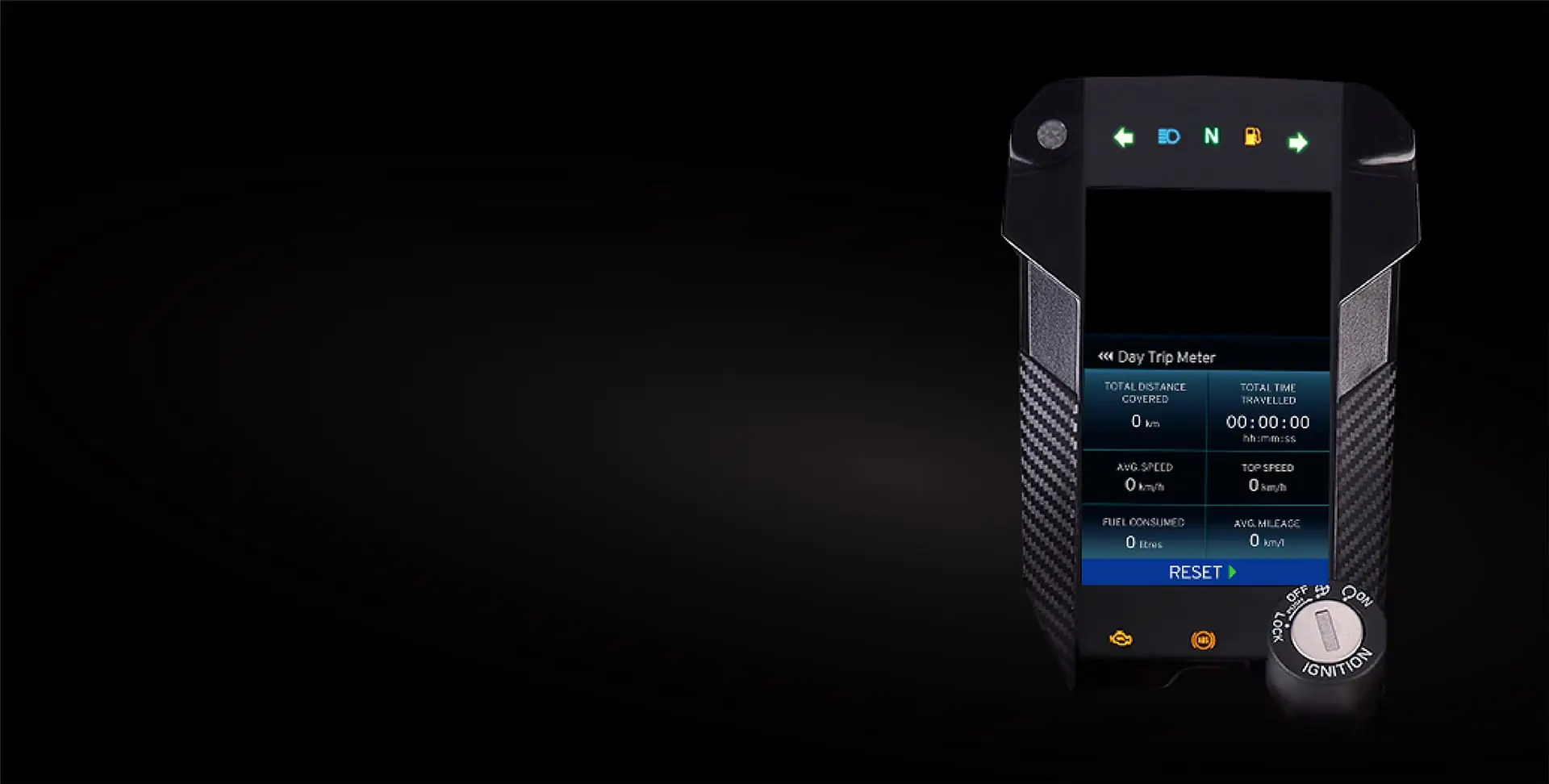

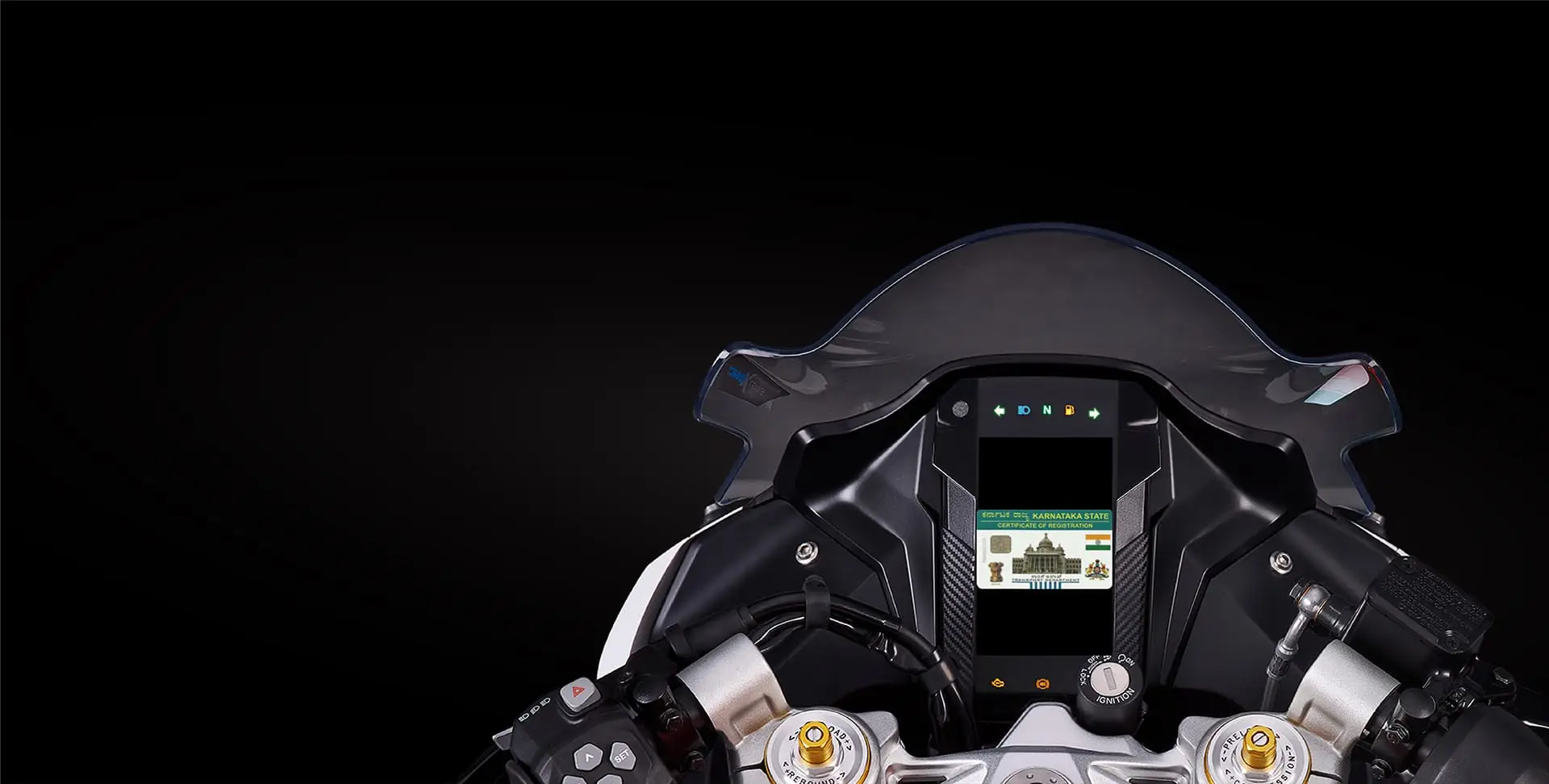

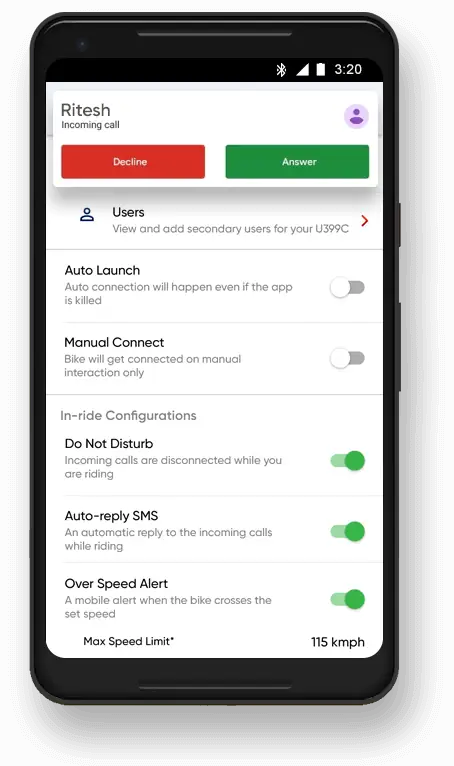

5" TFT screen connected cluster |
wheel, tyre & brake
| Rim Size (Front) |
MT 3.0x17 |
| Rim Size (Rear) |
MT 4.0x17 |
| Tyre Size (Front) |
110/70-ZR17 M/C 54W Tubeless - Michelin ROAD5 |
| Tyre Size (Rear) |
150/60-ZR17 M/C 66W Tubeless - Michelin ROAD5 |
| Front |
Disc 300mm Petal type with ABS |
| Rear |

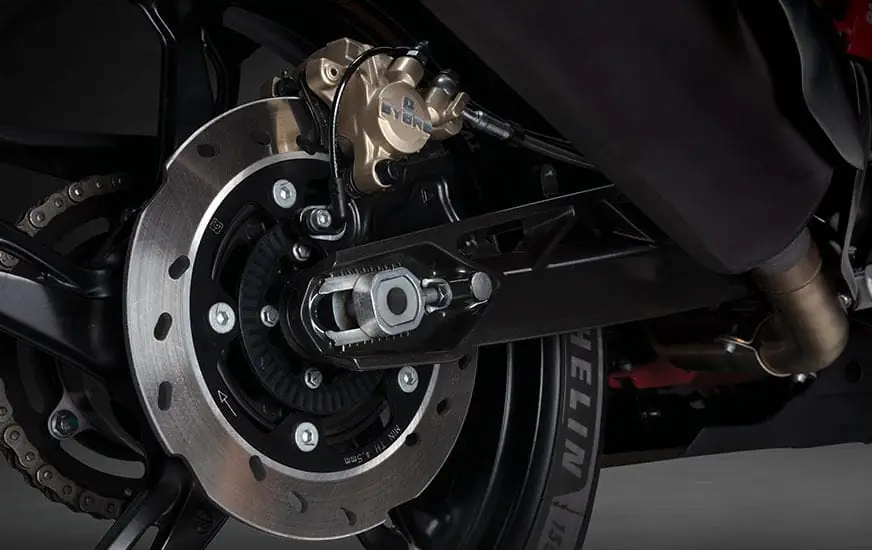

Disc 240mm Petal type with ABS |
| ABS |
With 3 ride modes |
| Brake Fluid |
DOT 4 |
dimensions, weight & fuel tank capacity
| Height |
1135 mm |
| Length |
2001 mm |
| Width |
786 mm |
| Wheelbase |
1365 mm |
| Ground Clearance |
180 mm |
| Saddle Height |
810 mm |
| Kerb Weight |
174 kg |
| Max payload |
130 kg |
| Full |
11 l |
